3.2.12 LEFT COVER
Preparation
 Remove platen or ADF. ( 3.2.4, 3.2.5)
 Raise the scanner unit to full upright. ( 3.2.7)
 Remove: (1) paper cassette, (2) paper output tray ( 3.2.8)

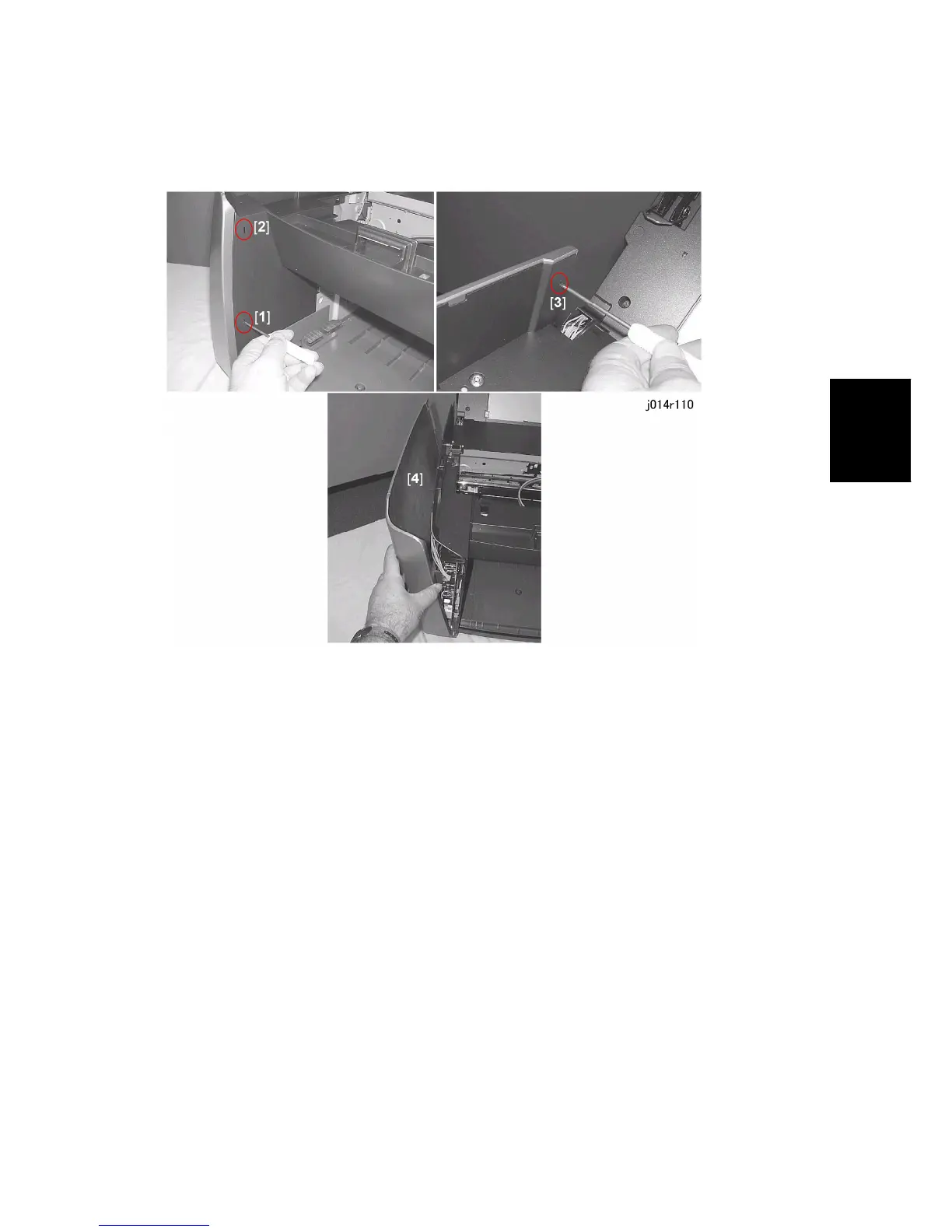

1. Use the tip of a small flat-head screwdriver to press and release tabs [1] and [2] at the
front and tab [3] at the top rear corner.
2. Carefully remove the left cover to prevent damaging the other tabs on the top and
bottom edges of the cover.
