Fax Mode Screen
This section provides information about the screen in fax mode.

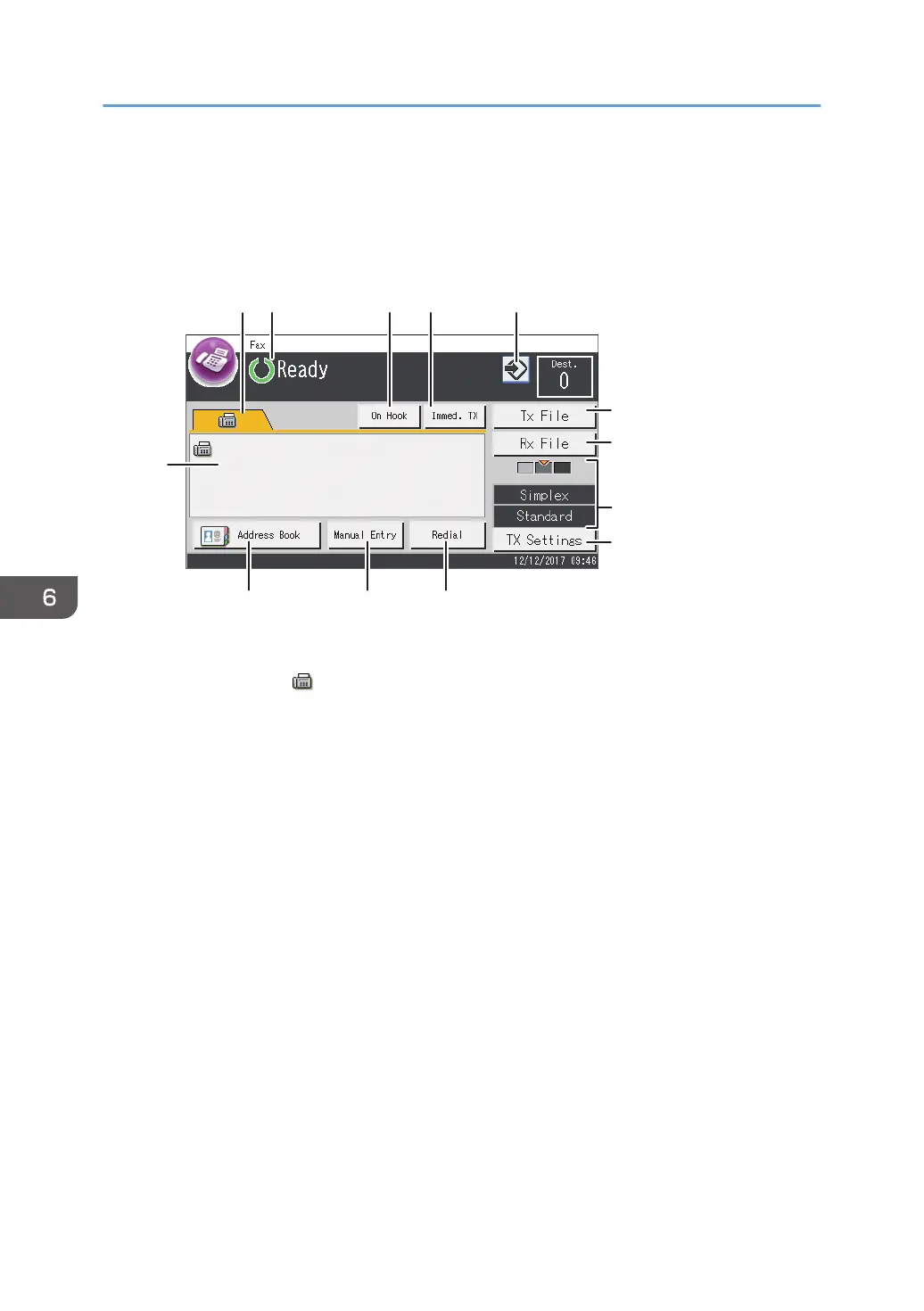

Screen in standby mode
DYG528
1 435
6
2
7
13
12
1011
8
9
1. Fax
Displays the [Fax] ( ) screen. You can specify fax destinations.
2. Current status or messages
Displays the current status or messages.
3. [On Hook]
Allows you to dial while listening to the tone from the internal speaker. You can send a fax checking the
connection.
4. [Immed. TX]
Press to select Immediate Transmission mode. For details, see page 203 "Selecting Transmission Mode".
5. Favorite item icon
Press to register current settings to a favorite item.
6. [Tx File]
Press to display the list of transmission files in memory.
7. [Rx File]
Press to display the list of received files in memory.
8. Current TX settings
Displays the current density, original, and resolution settings.
9. [TX Settings]
Press to specify scan settings.
