Backup of the real-time clock
The internal real-time clock of xLogic is buffered against power failure. The buffering time is influenced
by the ambient temperature, and is typically 100 hours at an ambient temperature of 25°C.

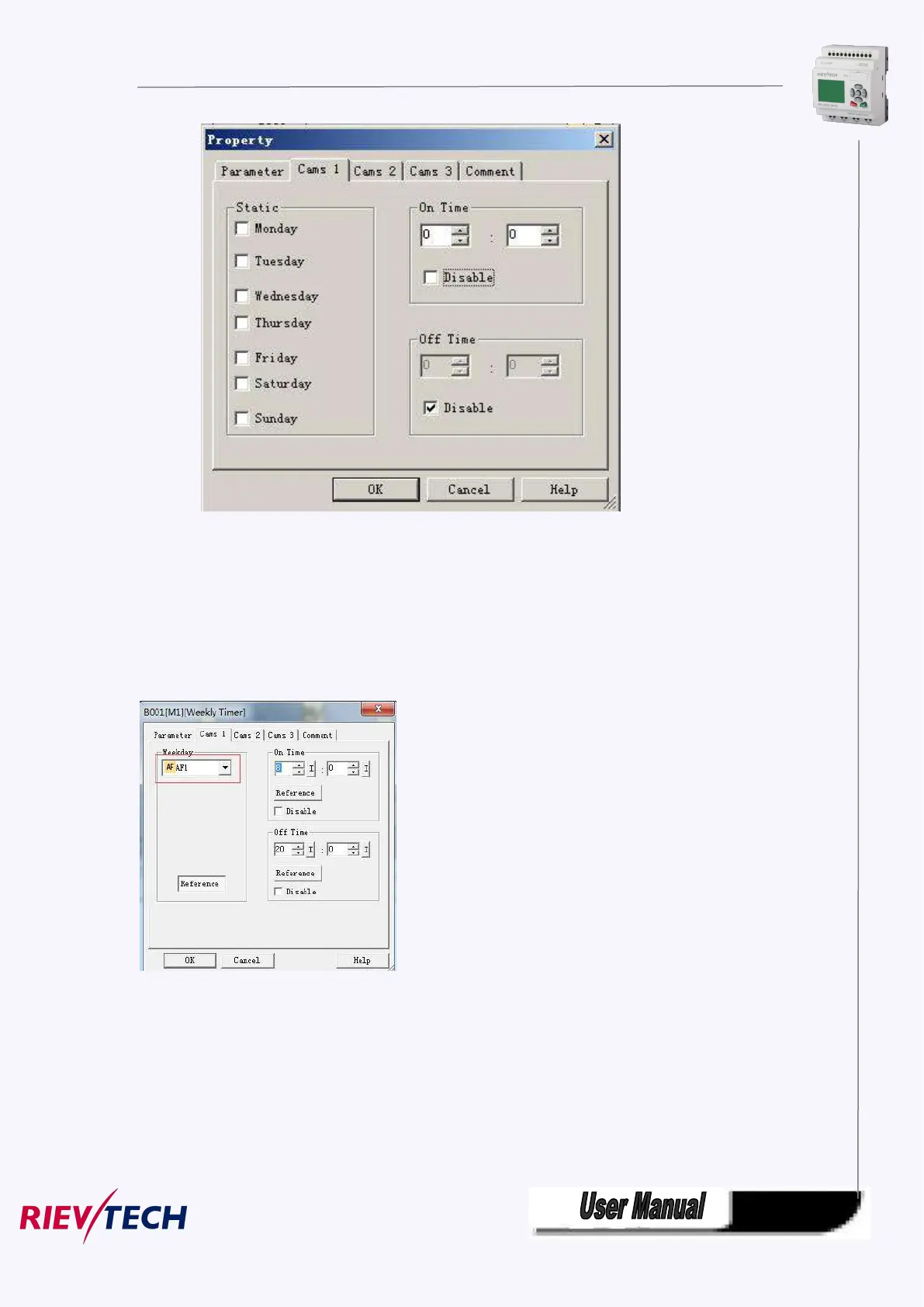

In order to set the weekly timer parameters through MODBUS, now the parameters of the weekly Timer
can use the AF value.
Weekday parameter.
For example use AF1
AF is 16 bits type value, the weekday use the low 8 bits status as the
parameters:
bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0
0(Reserved) SAT FRI THU WED TUE MON SUN
