Description of the function
The latching relay represents a simple binary memory logic. The output value depends on the input
states and the previous status at the output.
Logic table of the latching relay:
S
R
Q
Remark
0
0
x
Status unchanged
0
1
0
Reset
1
0
1
Set
1
1
0
Reset
When retentivity is enabled, the output signal corresponds with the signal status prior to the power
failure.

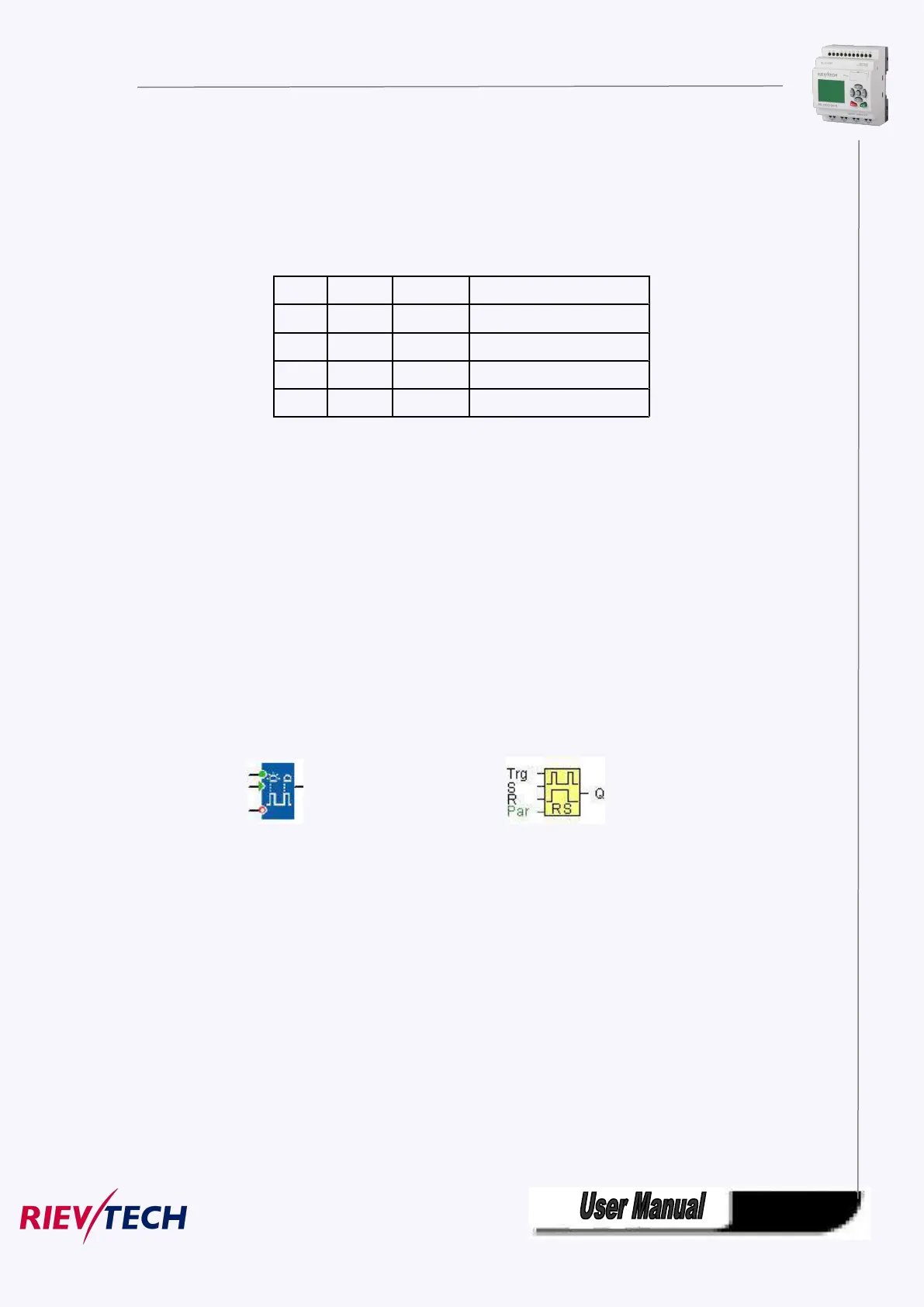

5.5.17 Pulse relay
Fashion: Classic:
Short description
The output is set and reset with a short one-shot at the input.
