Output AQ
AQ outputs the average value over the specified time of sampling.
* Analog Inputs: 0 to 10 V corresponds with 0 to 1000 (internal value).
Parameter St and Sn
Parameter St represents the sampling time and parameter Sn represents the number of samples.

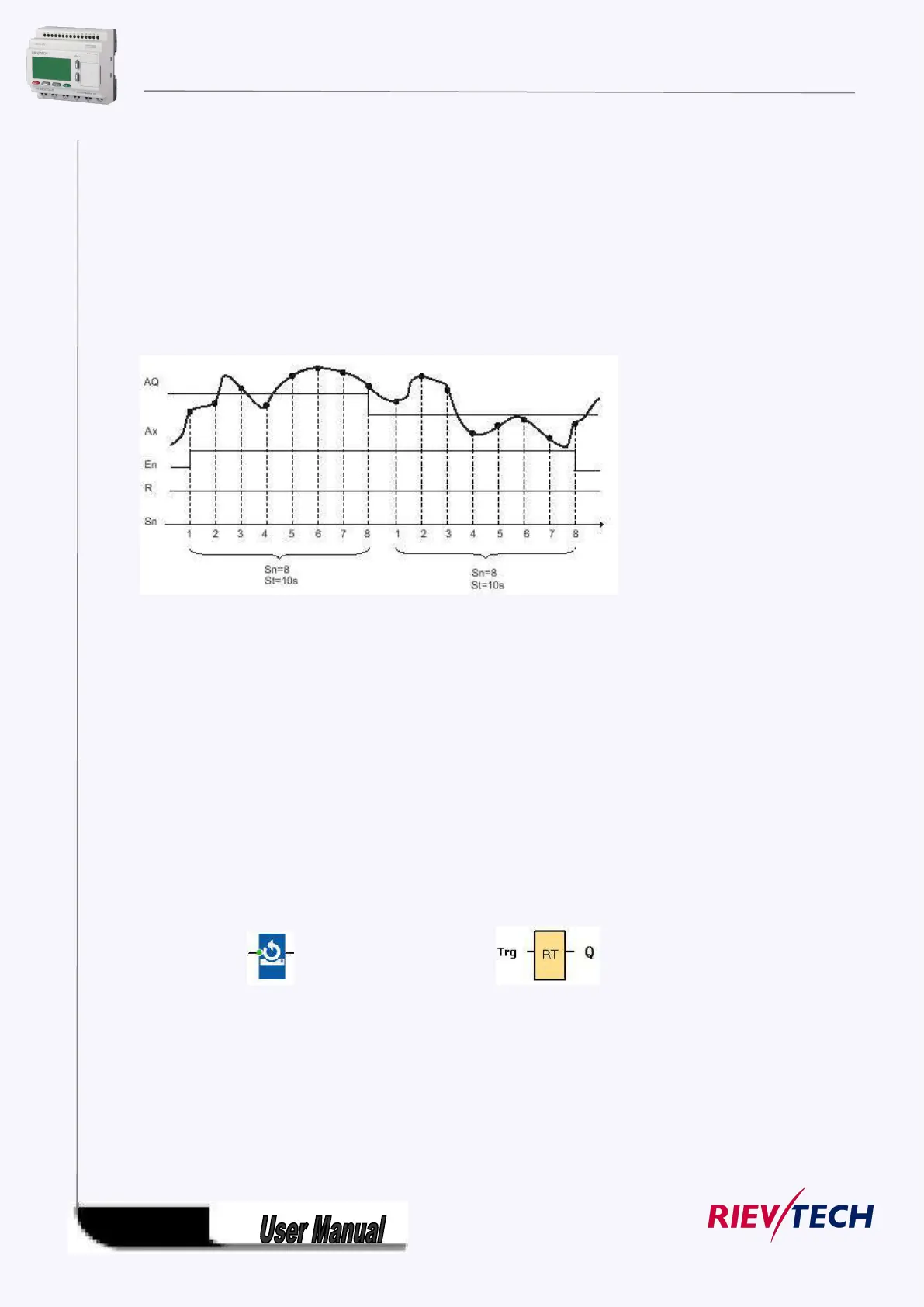

Timing diagram
Description of the function
When En = 1, the average value function calculates the average value of the samples during the
configured time interval. At the end of the sampling time, this function sets output AQ to this calculated
average value.
When En = 0, the calculation stops, and AQ retains the last calculated value. When R = 0, AQ is reset to
0.
5.5.45 Device Reset
Fashion: Classic:
Short description
This function block is used to reset the device (Ethernet modem or WIFI modem built-in) in the CPU, if
there is a trigger at the Trg pin. It merely can be applied to the CPU with Ethernet module or Wifi module
built-in.
Available in below CPUs:
ELC series type:
ELC-12DC-DA-R-N
