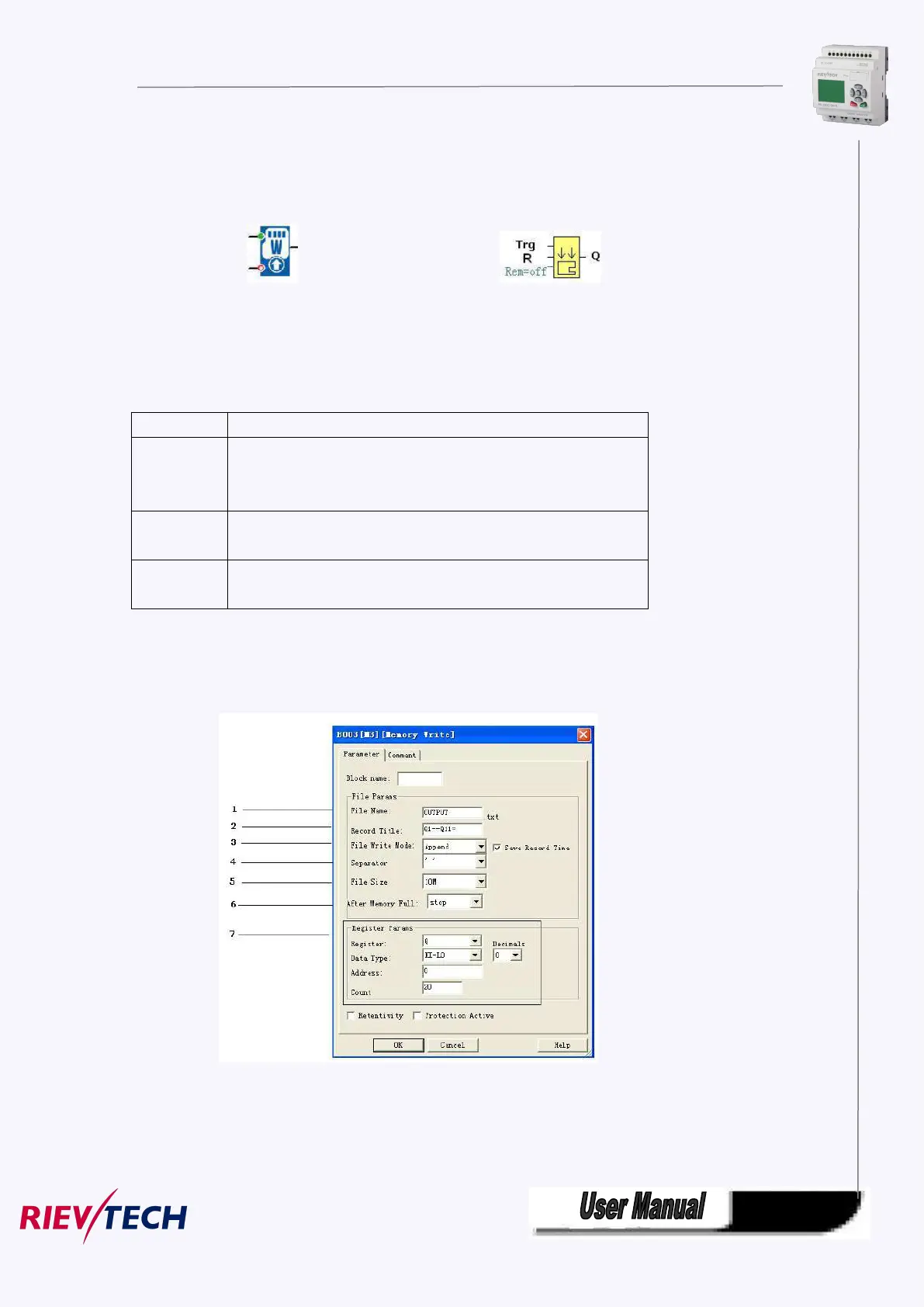

5.5.37 Memory write
Fashion: Classic:
Short Description
Only when there is a low to high trigger at Trg pin, the Memory Write block will be activated and the
pre-configured record action will be performed, at the same time the output will switch on if the record
action had been done successfully.
Only when there is a low to high trigger at Trg pin, the Memory
write Read block will be activated and the pre-configured record
action will be performed. Each trigger, only write once.
Reset the Memory Write block and set the output to 0 via the R
(Reset) input. Reset has priority over Trg
Q switches on only after Write function had been executed
correctly.
Description of Memory write block’s property dialog box :
1. File name
Place where you can set the name of the file used to save the registers’ data
