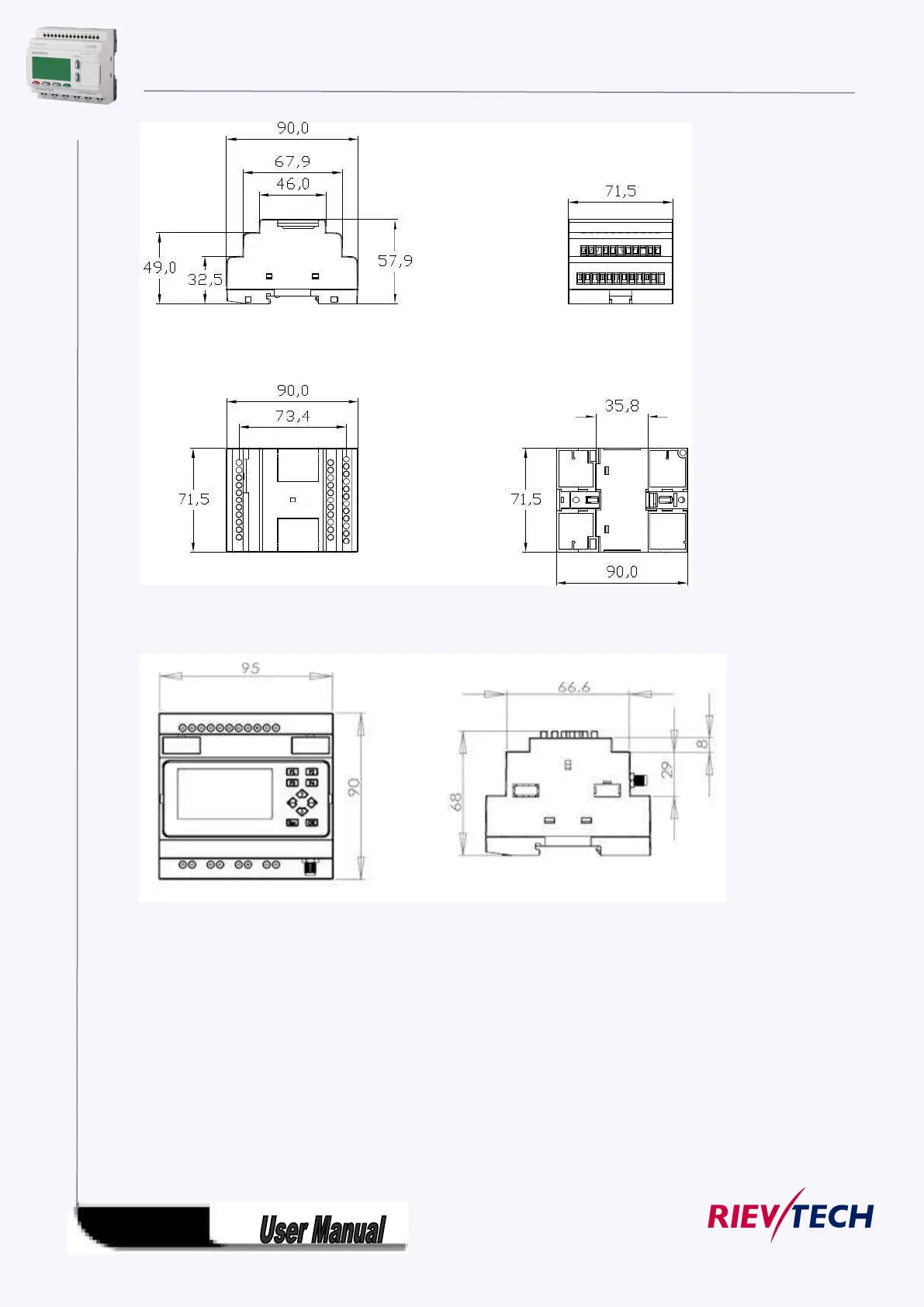

Dimensions of ELC-12-N Ethernet CPU:
Chapter 3 Installing/removing xLogic
Dimensions
The xLogic installation dimensions are compliant with DIN 43880.
xLogic can be snap-mounted to 35 mm DIN rails to EN 50022 or on the wall.
xLogic width:

EXM-E expansion module and PR-6 series CPU have a width of 48mm

PR-14,PR-18&ELC-12-N Series CPU has a width of 95mm.

PR-E expansion modules have a width of 72mm.

PR-24 Series CPU has a width of 133mm.

PR-12 Series CPU has a width of 72mm
