Rievtech PR-6DC-DA-R - Bit to Word

189
Convert the counter value (5) to Q1,Q2 and F1--F14(0000000000000101)

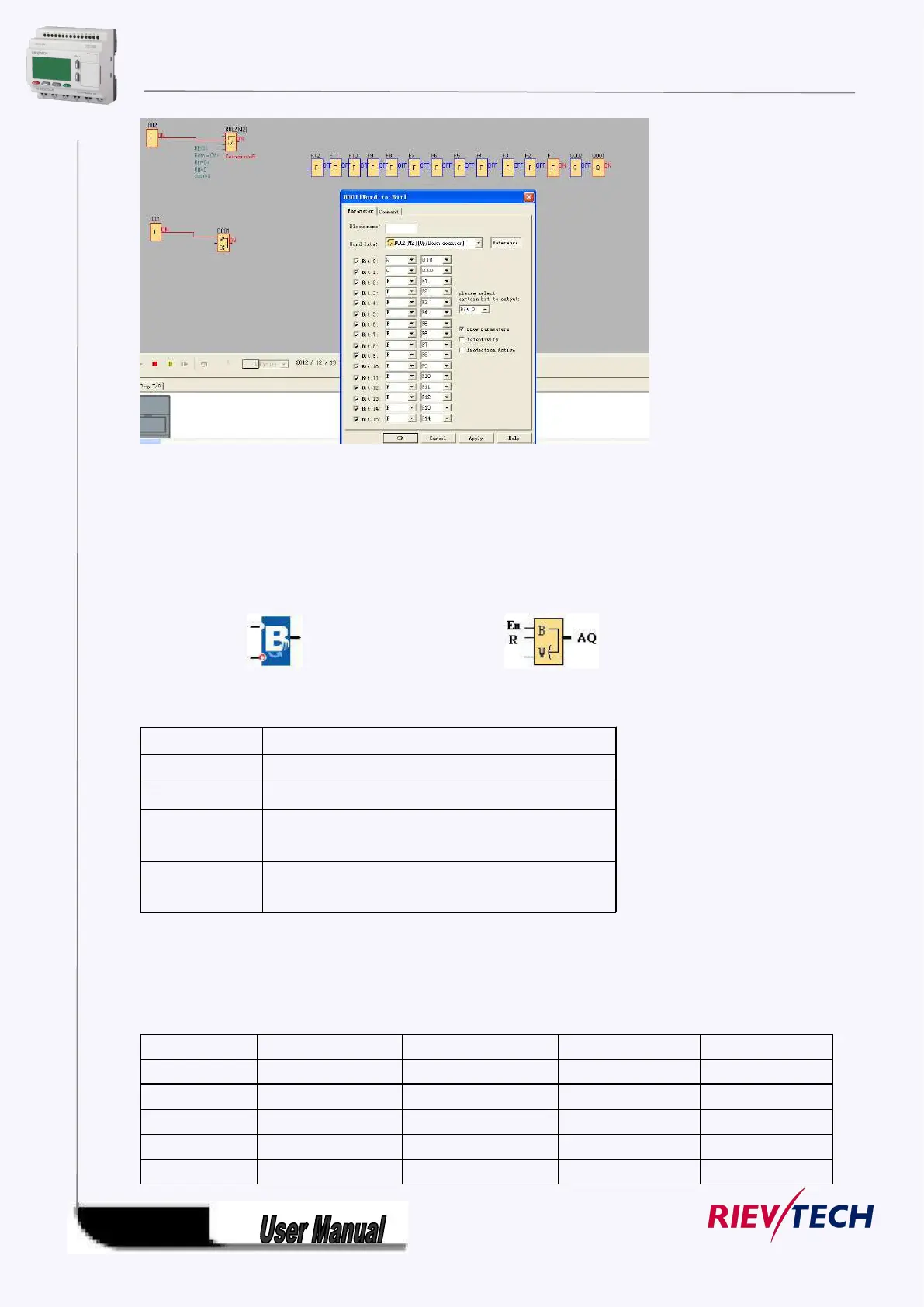

5.5.40 Bit to Word
Fashion: Classic:
Short description
This special function is used to transfer the 16-Bit status(0 or 1)(F or Q) to word type data (AF or AQ).
Connection
Description
Input En
Enable this function.
Input R
Reset output AQ with a signal at input R (Reset).
Parameter
Retentivity set (on) = the value is retentive in memory
when power lost.
Output AQ
AQ will output the value of the block when En was
activated.
For example
Transfer the F1--F3 and Q1 status to the AQ001. F1 is saved in Bit0, F2 is saved in Bit1,F3 is saved in
Bit2,Q1 is saved in Bit3.
F1
F2
F3
Q1
AQ1 value
0
0
0
0
0
1
0
0
0
1
0
1
0
0
2
1
1
0
0
3
0
0
1
0
4
