program into xLogic CPU module , uploading program into PC and online monitor (monitor real time
status of xLogic IO)can be done, herewith Ethernet module just plays a role of ELC-RS232/USB cable.
A . Upload program: click
B. Download program: click
C. Monitor program run status: click

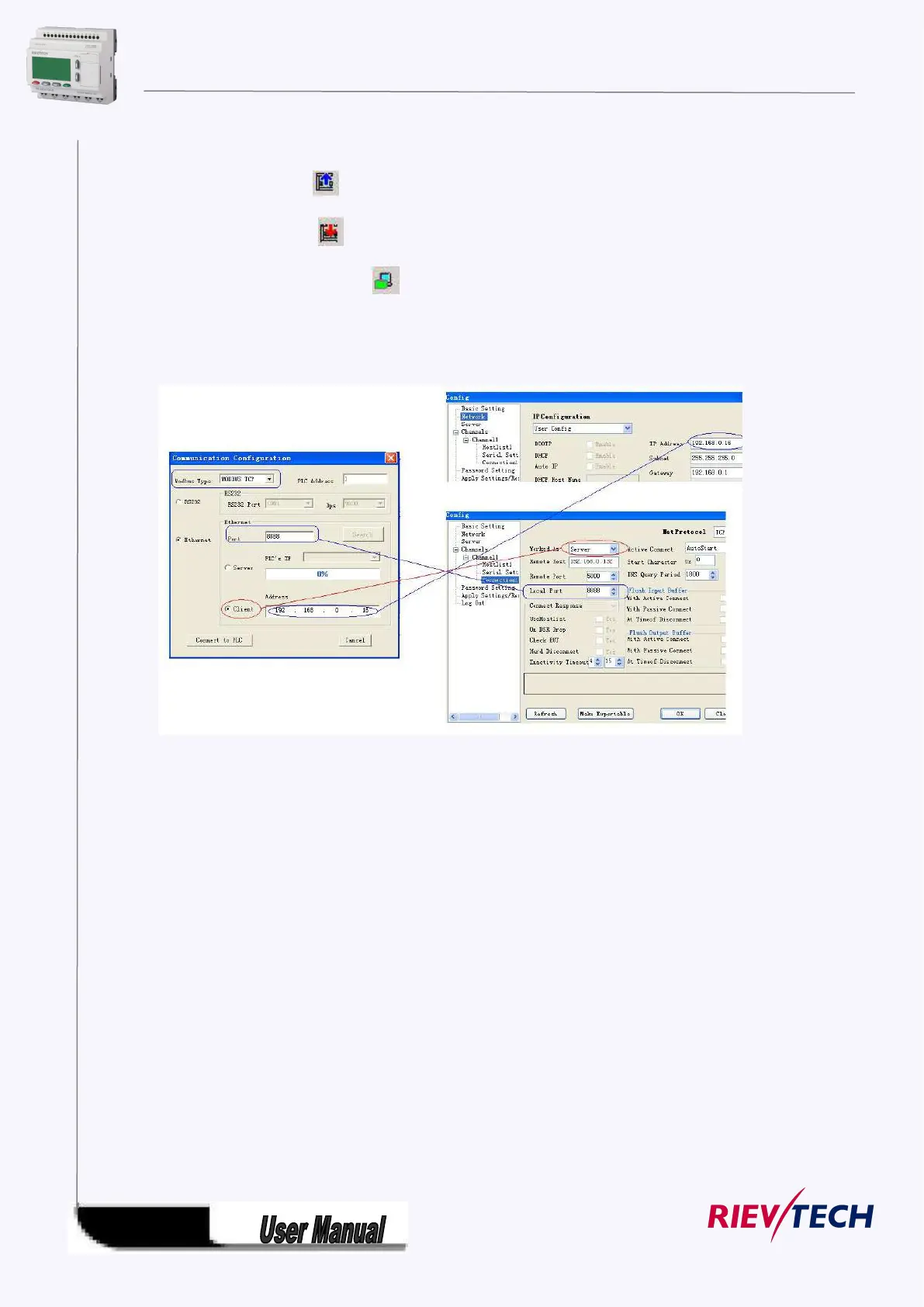

Option 2: ELC-12DC-DA-R-N work under TCP serve mode, xLogicsoft software acting as Client.
6. Click "Connect to PLC" button, and then the Ethernet module and PC will be linked.
6.9 How to establish the communication among CPUs via Ethernet ?
Hardware connection.
