Rievtech PR-6DC-DA-R - Compare in Zone

211
VALUE N + 2: Output ON if Value = Value N + 2.
VALUE N + 3: Output ON if Value = Value N + 3.
VALUE N + 4: Output ON if Value = Value N + 4.
VALUE N + 5: Output ON if Value = Value N + 5.
VALUE N + 6: Output ON if Value = Value N + 6.
VALUE N + 7: Output ON if Value = Value N + 7.
Operation:
The comparison value (Value N) can be configured. It must be between 0 and 32760.

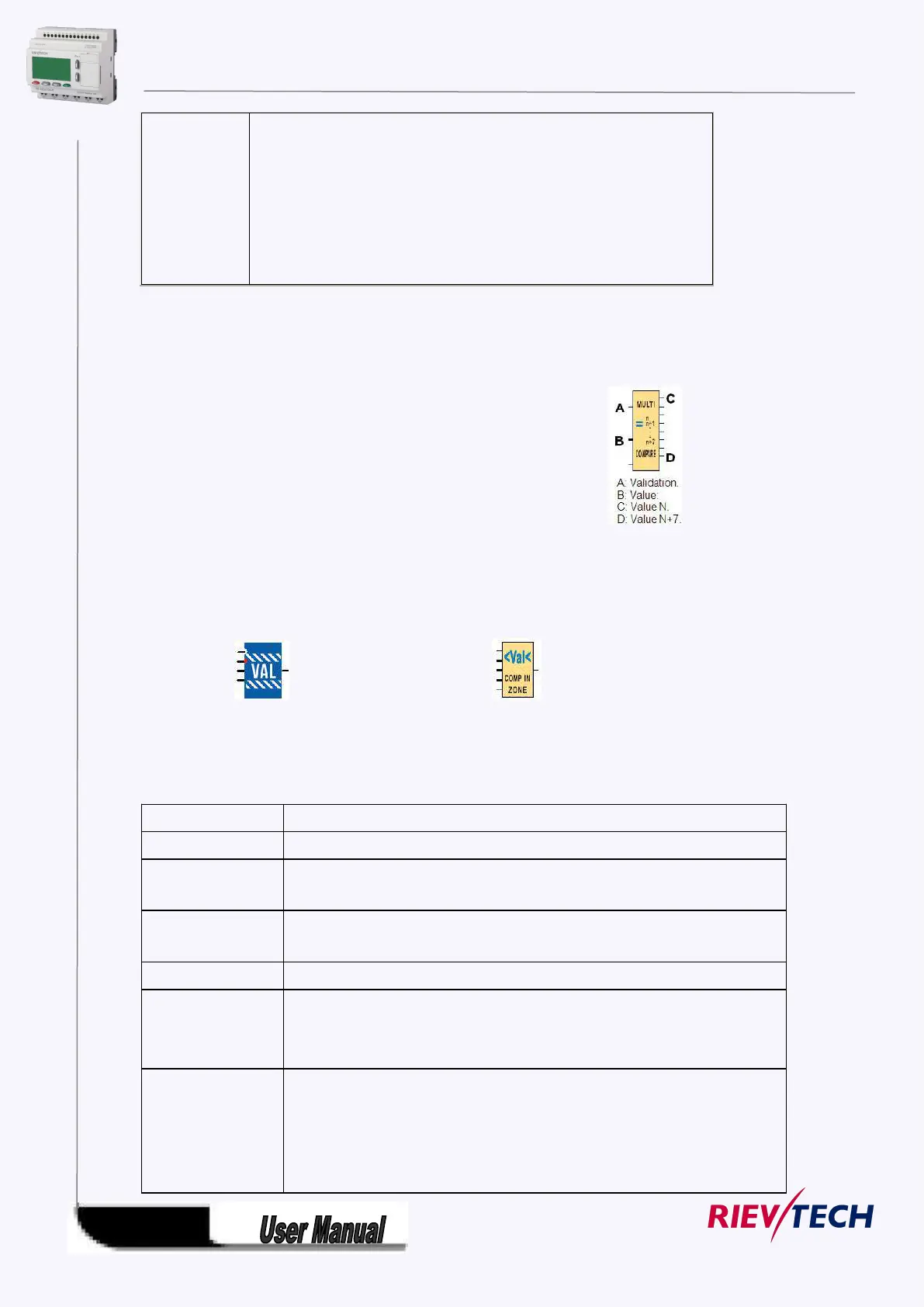

5.5.54 Compare in zone
Fashion: Classic:
Short Description
The COMP IN ZONE comparison function is used to compare one value between two set points (the MIN
and MAX values of the zone).
Connection
Description
Input ENABLE
a discrete ENABLE FUNCTION input; this input is Active if it is not connected.
Input VALUE TO
COMPARE
The value is used to be compared with the min and max value, whose type is
Integer.
Input MIN VALUE
A MIN VALUE input, whose type is Integer
Input MAX VALUE
A MAX VALUE input, whose type is Integer
OUTPUT
The OUTPUT indicates the result of the comparison when the ENABLE FUNCTION
input is active.
The OUTPUT does not change state when the ENABLE FUNCTION input is inactive.
Parameters
From the Parameters window, you can select the state of the output according to
the result of the comparison:
ON in the zone: the output will be active if the input value is between the two set
points (MIN and MAX),
OFF in the zone: the output will be inactive if the input value is between the two
