Rievtech PR-6DC-DA-R - Analog Value Monitoring

135
Range of values: ± 10.00
B: Zero offset
Range of values: ± 10000
p: Number of decimals
Range of values: 0, 1, 2, 3
Output AQ
Analog output
Value range for AQ:
-32768...+32767
Parameter p (number of decimals)
Applies only to the display of Ax and Ay values in a message text.
Does not apply to the comparison of On and Off values! (The compare function ignores the decimal
point.)
Description of the function
The function reads the value of an analog signal at the analog input Ax.
This value is multiplied by the gain parameter A. Parameter B (offset) is added to the product, i.e.
(Ax ∙gain) + offset = Actual value Ax.

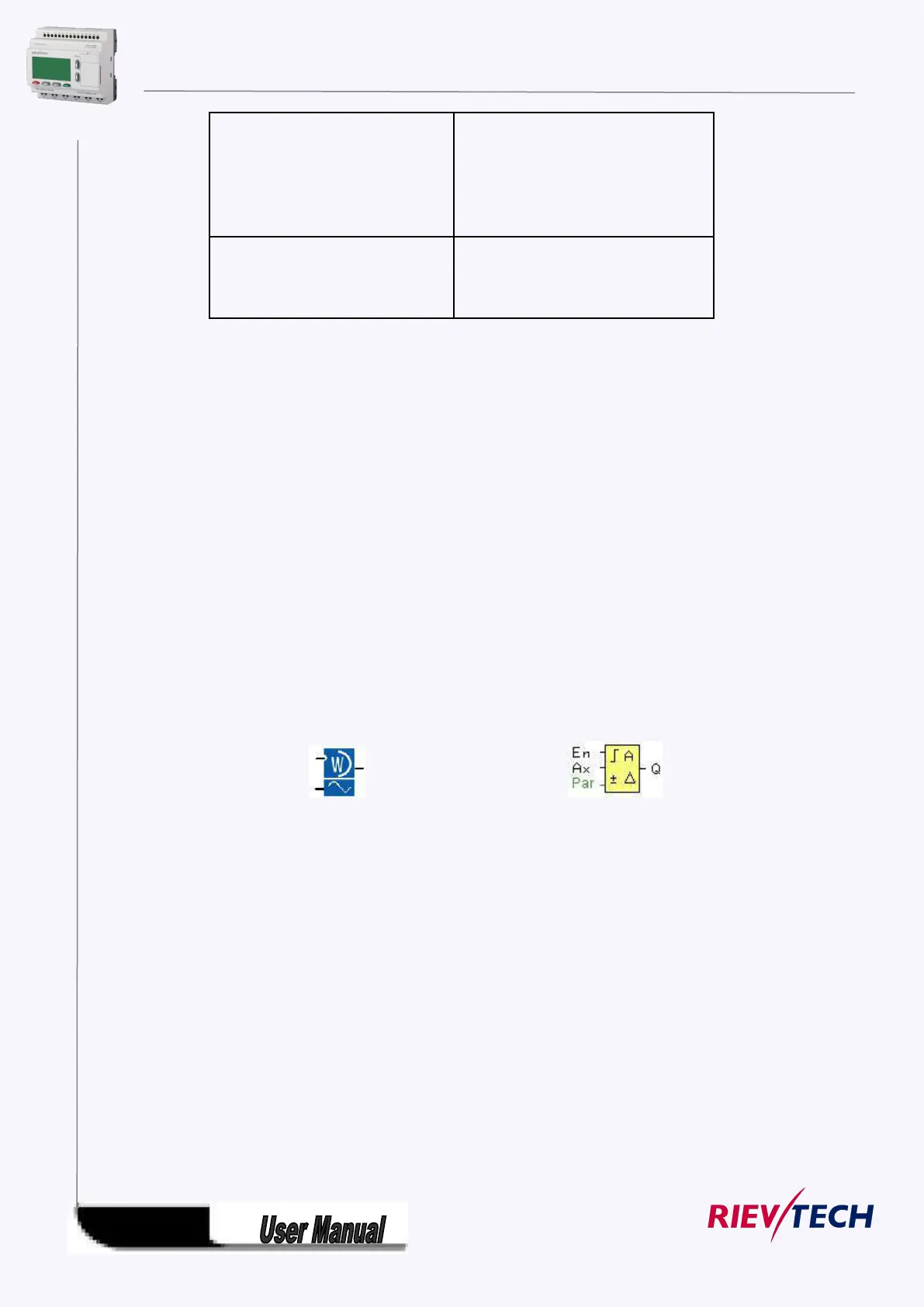

5.5.24 Analog value monitoring
Fashion: Classic:
Short description
This special function saves the process variable of an analog input to memory, and sets the output when
the output variable exceeds or drops below this stored value plus a configurable offset.
