Description of function
The function calculates the value at the input and sets or resets Q depending on the sunrise time and
sunset time at the configured location and time zone of the module.

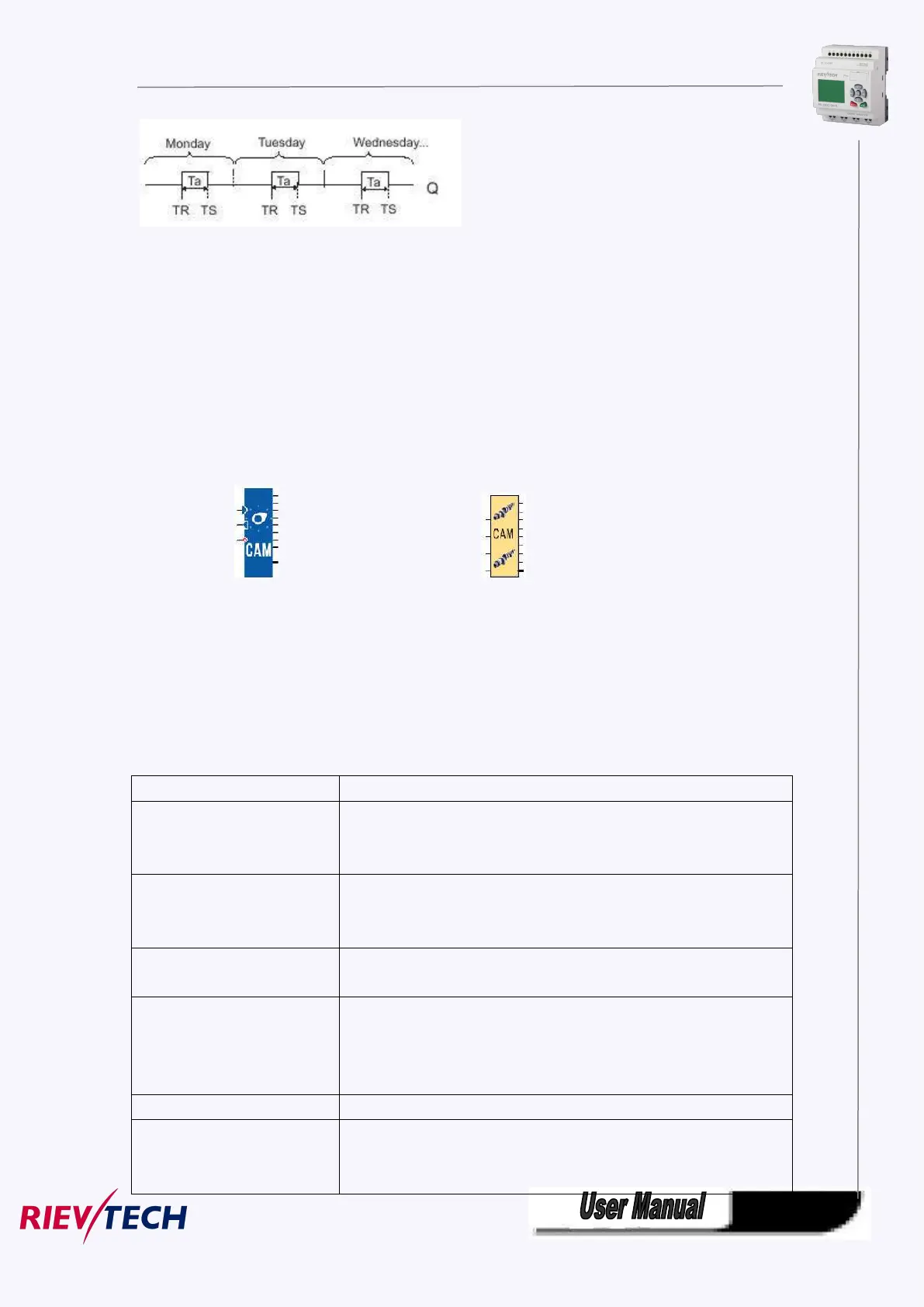

5.5.48 Cam Control
Fashion: Classic:
Short description
The cam programmer function Cam Control is used to control a set of 8 built-in cam wheels.
On its 8 outputs (representing the 8 wheels), the function provides the state corresponding to the current
position of the shaft wheels.The cam configuration can be set for each position, output state is
adjustable.Once the maximum value has been reached, the cam restarts from its initial position (output
returns to 0).
MOVE FORWARD is the input which is used to control cam progress; it
moves one step forward at each rising edge (digital status is changed
from 0 to 1).
MOVE BACKWARD is the input which is used to control backward cam
movement; it moves one step backward at each rising edge (digital
status is changed from 0 to 1).
RESET (initialization): When this input is active, the cam is replaced to
its initial position: the POSITION output will be forced to 0.
Output Output1..
............
............
Output8
The status of the 8 outputs is corresponding to the current position of
the shaft (representing the 8 wheels).
analog output corresponding to the current cam position (0 to 49).
From the property dialog box, you may adjust:
The number of program steps: Its value is between 1 and 50,
Output status [1..8]: for each position of the shaft.
