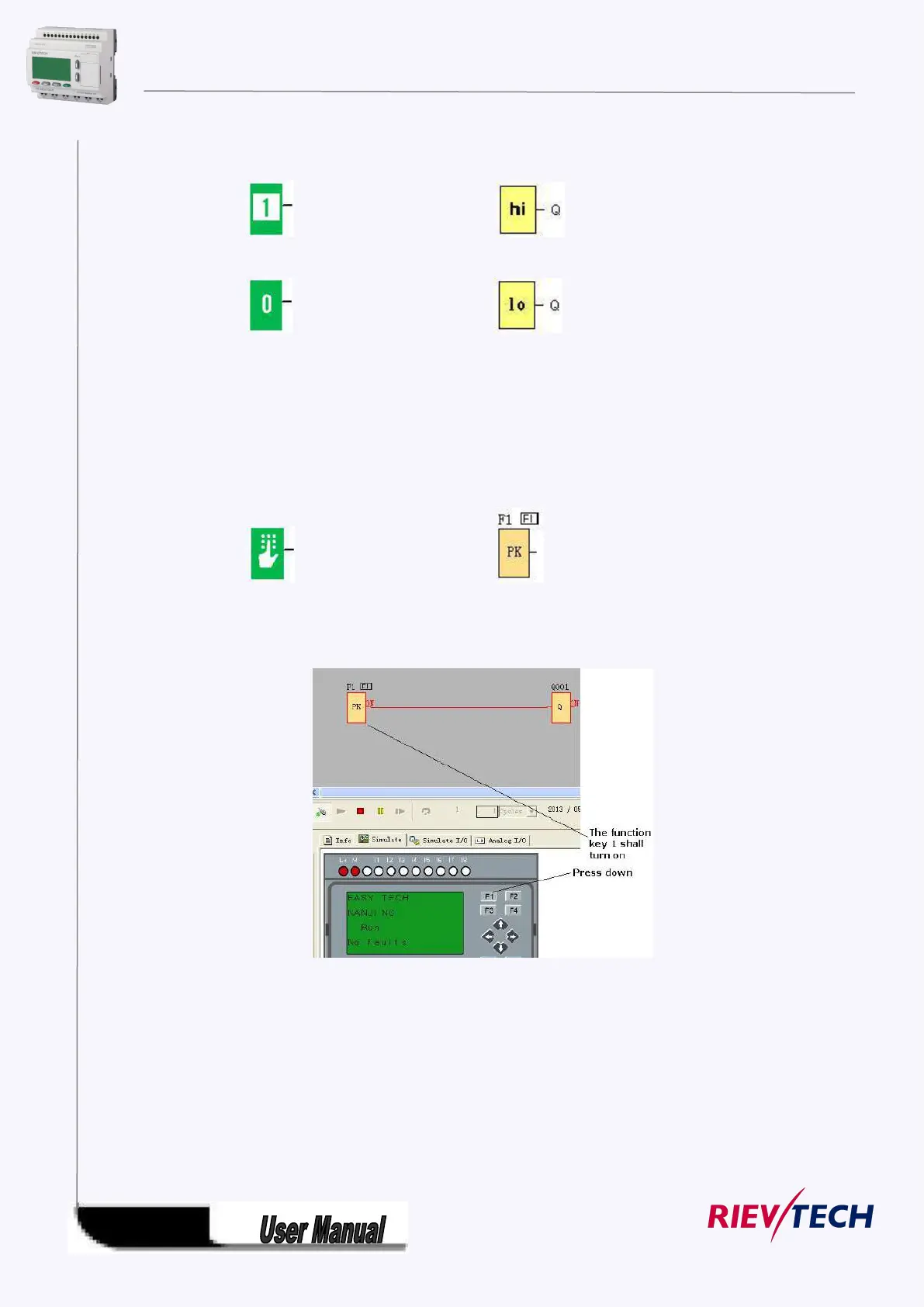

5.2.4 Permanent logical levels HI and LO
Fashion: Classic:
Set the block input to logical hi (hi = high) to set it permanently to logical '1' or 'H' state.
Fashion: Classic:
Set the block input to logical lo (lo = low) to set it permanently to logical '0' or 'L' state.
5.2.5 Panel Key
Fashion: Classic:
It is the symbol of the Function key on the panel (F1—F4). If one of the function keys is pressed down,
the status of the corresponding symbol in the program shall turn from 0 to 1. And it shall give off one high
trigger.
Notes: 1.Only one function key is allowed to be pressed down at any one time, if you press down two or
more at the same time, xLogic does not process.
2. If the arrow keys(UP, DOWN, LEFT and RIGHT), Esc and OK had been applied to the program,
then they would be invalid for menu operation (e.g. manual programming,parameters modification and
view alarming message etc).
