6.6.3 Example3: One master CPU(UDP Server) connect with 3 slave CPUs(UDP
clients)

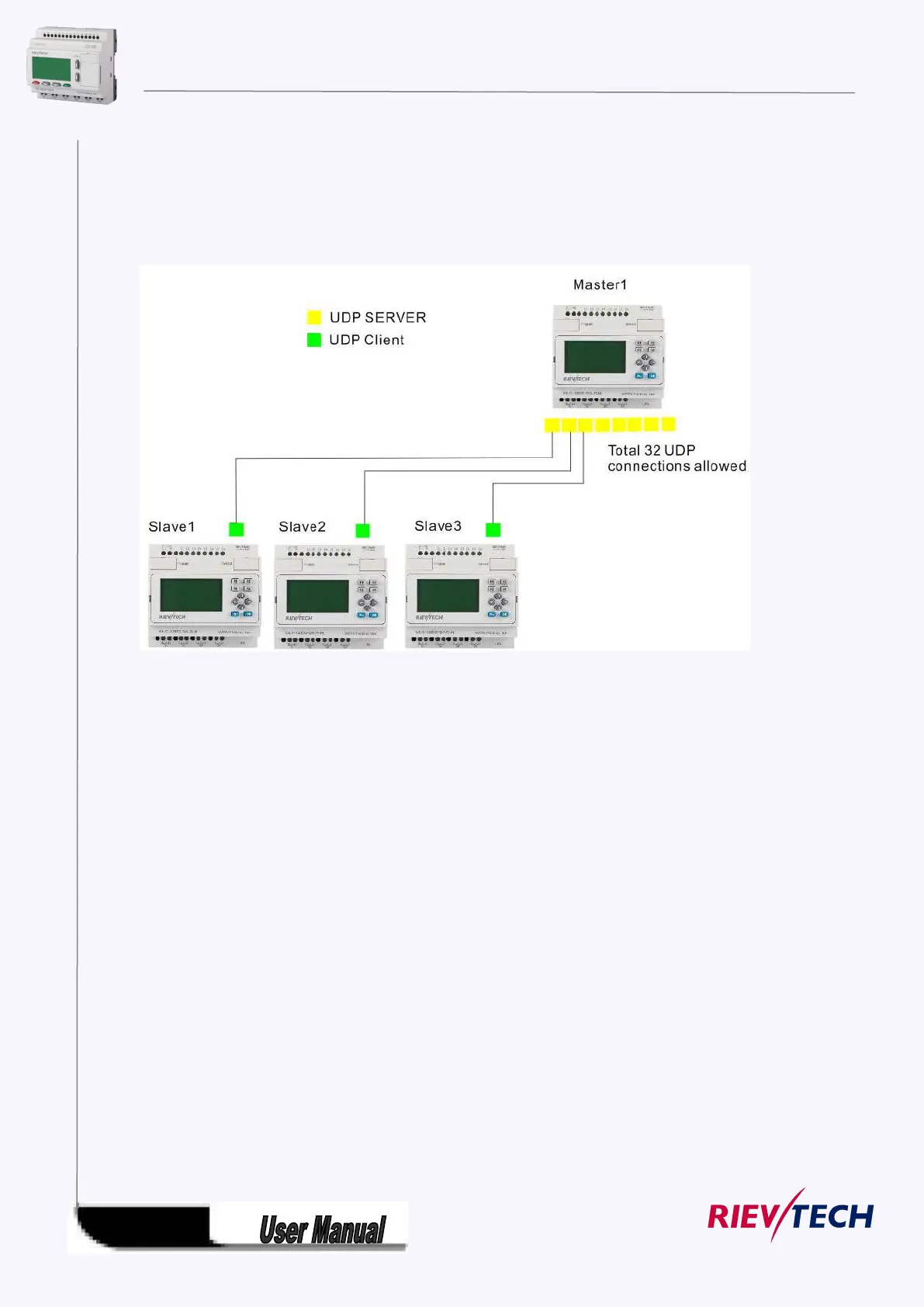

The connection sketch:
Requirement:
1.If I1 of Master is ON/OFF, the Q1 of slave1---slave3 are ON/OFF.
2.Read the AI2 value from the slave1--slave3 to master and display.
Step1: Configure the IP configuration of the PLCs.
Master
IP: 192.168.0.100
UDP Server port 8000
