The following figure shows an example of a part of parameters window:
Notes:
1.The FORWARD input takes priority over the BACKWARD input.
2.If the FORWARD and REVERSE inputs are not connected, they are set to inactive.
When selected, the "Retentivity" enables the current value of the timer to be retrieved following a power
failure.
5.5.49 Angular Cam Timer
Fashion: Classic:
Short description

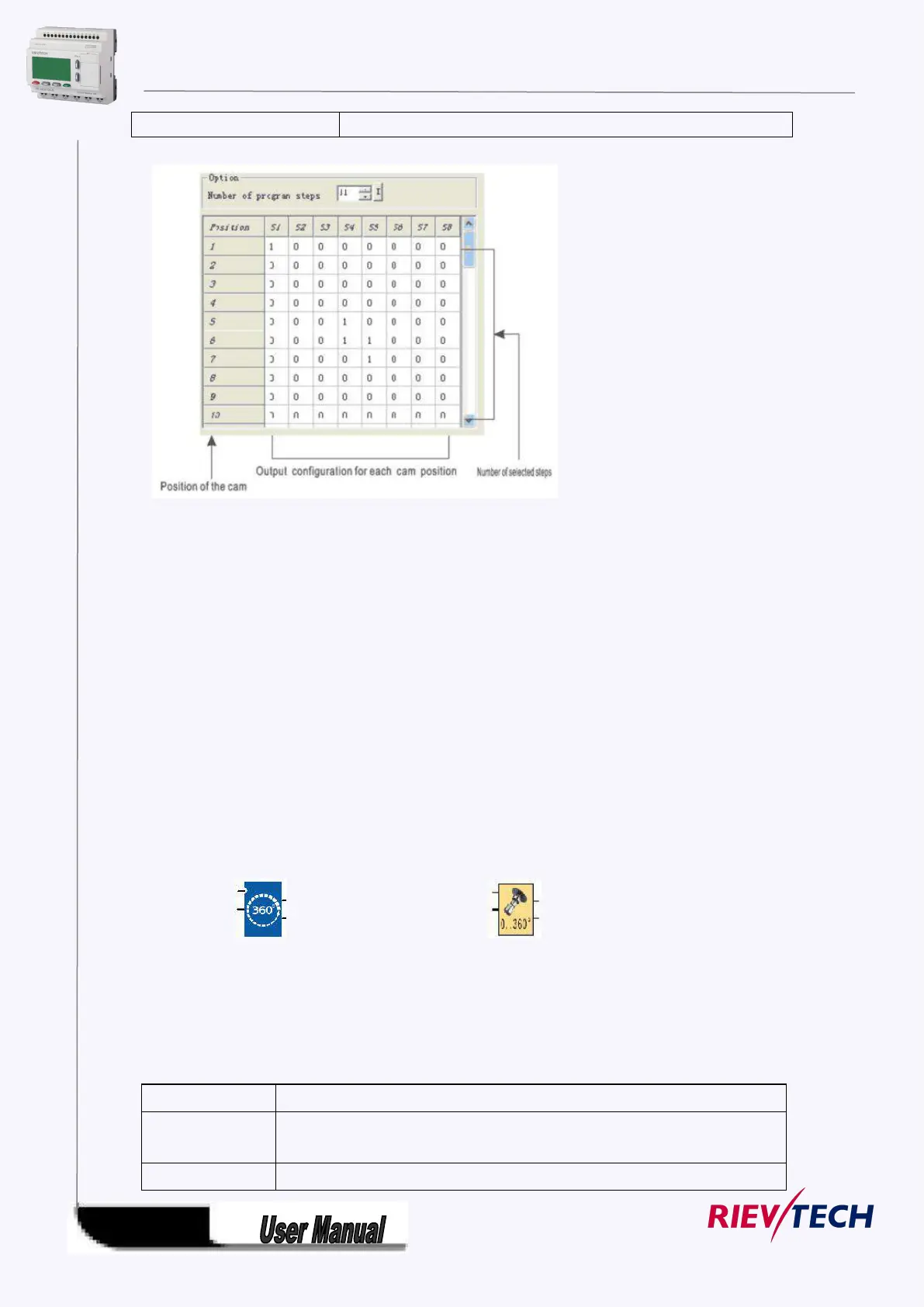

This function block is used to describe operation of a cam timer based on the angle made by the cams
as the analog input. The number of steps can be selected and each step corresponds 2
configurable outputs.
Enables the function. If this input is not activated, the function remains inactive.
Activated implicitly if it has not been connected.
Timer command input (from 0° to 359°). The outputs vary according to this value
