Connection
Description
Input En
Enable this function.
Input R
Reset output Q with a signal at input R (Reset).
Parameter
Retentivity set (on) = the status is retentive in memory.
Output Q
Q is switched on with a signal at input En, and switched off
with a low signal at input En.

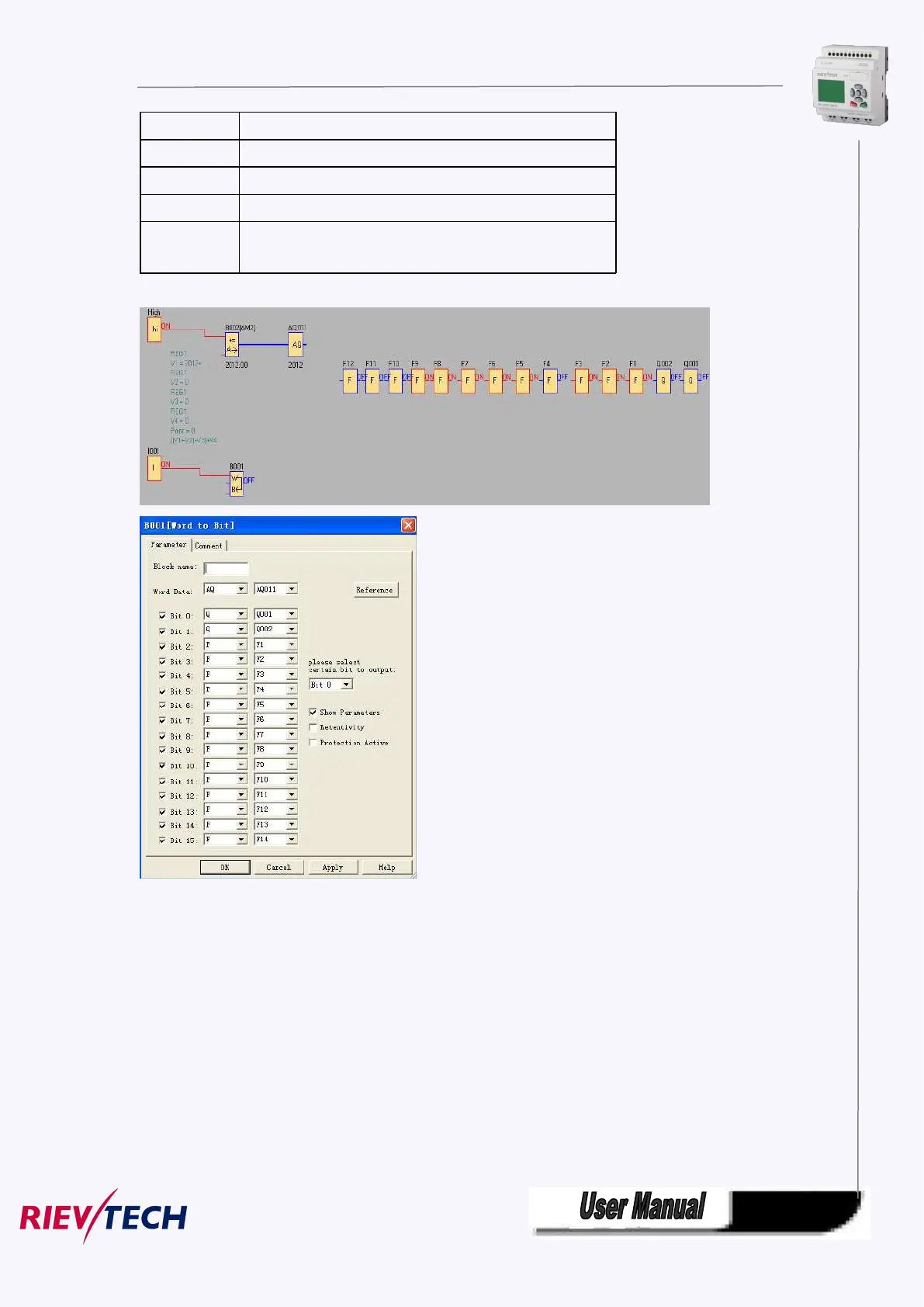

Example1:
Convert the AQ11 (2012) to Q1,Q2 and F1--F14(0000011111011100)
Example2:
