V1...V4: Analog values
(Value) that will be issued.
Value range:
-32768...+32767
p: Number of decimal places
value range: 0, 1, 2, 3
Analog output
Value range for AQ:
-32768...+32767
Parameters V1…V4
The values for V1…V4 can be provided by the value of another already-programmed function:
Analog comparator: Ax – Ay
Analog trigger: Ax
Analog amplifier: Ax
Analog multiplexer: AQ
Analog ramp: AQ
Analog math: AQ
PI controller: AQ
Data latching relay: AQ
Up/Down counter: Cnt

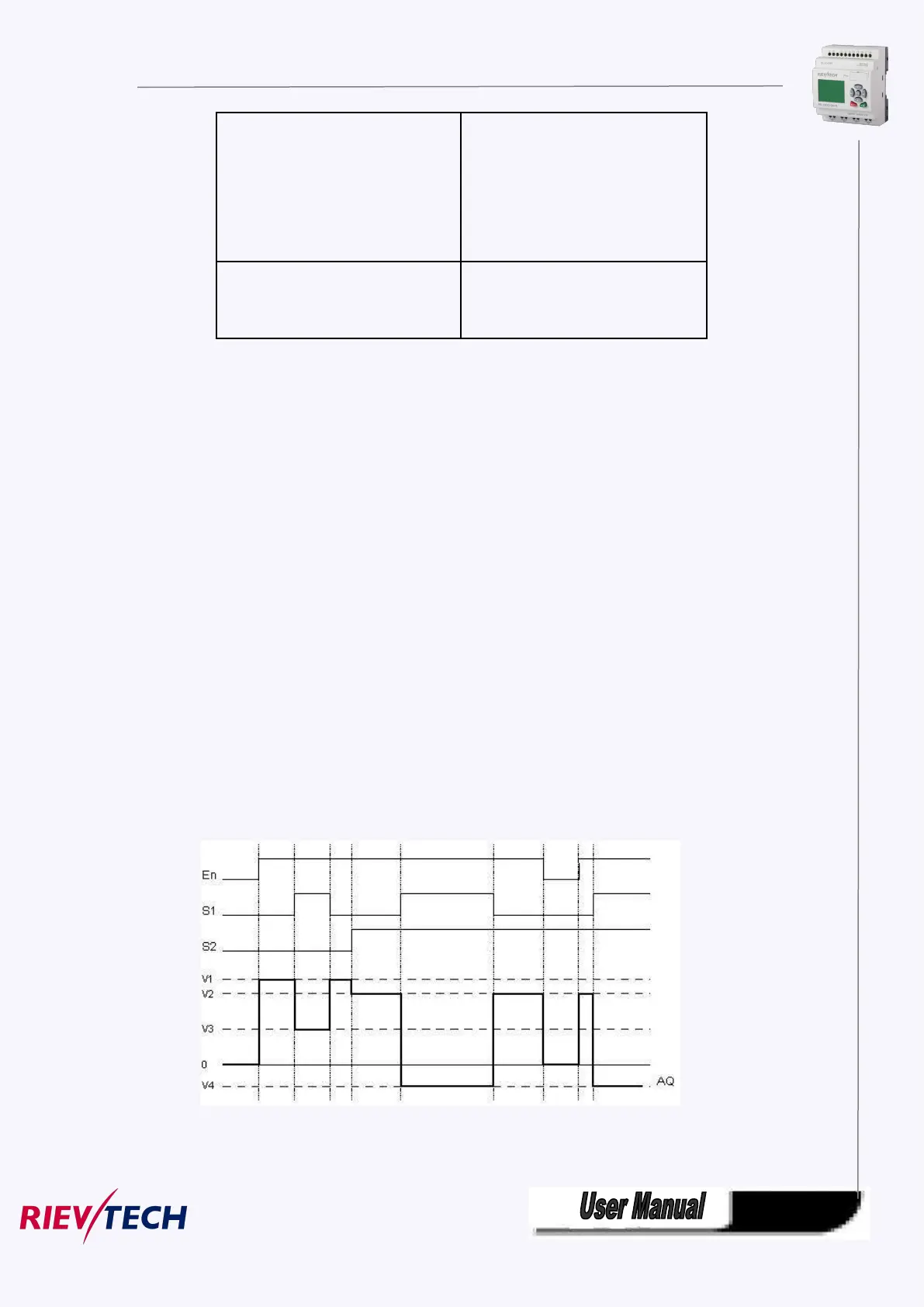

Timing Diagram
Description of Function
If input En is set, then the function issues one of 4 possible analog values V1 to V4 at the output AQ,
depending on the parameters S1 and S2.
