The output AQ is scaled using the formula:
(Current Level - Offset "B") / Gain "A"
Note: When AQ is displayed in parameter mode or message mode, it is displayed as an
un-scaled value (engineering units: current level).
Value range for AQ: 0...+32767
Parameter p (number of decimal places)
The level parameters Level1 and Level2 can be provided by the value of another already-programmed
function:
Analog comparator: Ax – Ay
Analog trigger: Ax
Analog amplifier: Ax
Analog multiplexer: AQ
Analog ramp: AQ
Analog math: AQ
PI controller: AQ
Data latching relay: AQ
Up/Down counter: Cnt
Parameter p only applies for displaying the values of AQ, level 1, level 2, MaxL, StSp, and Rate in a
message text.

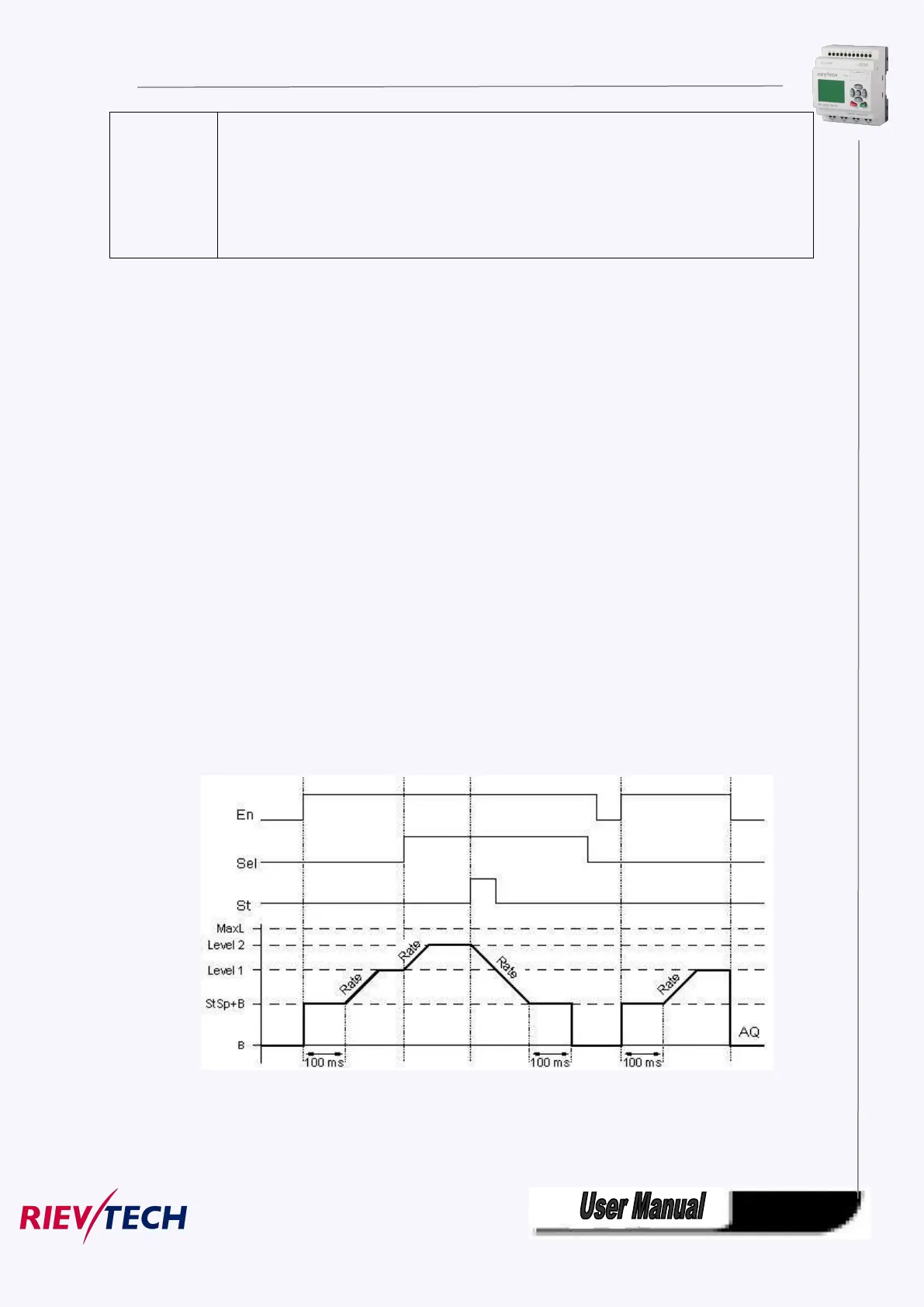

Timing diagram for AQ
Description of function
If the input En is set, then the function sets the value StSp + Offset "B" for 100 ms.
Then, depending on the connection of Sel, the function runs from the level StSp + Offset "B" to either
