191

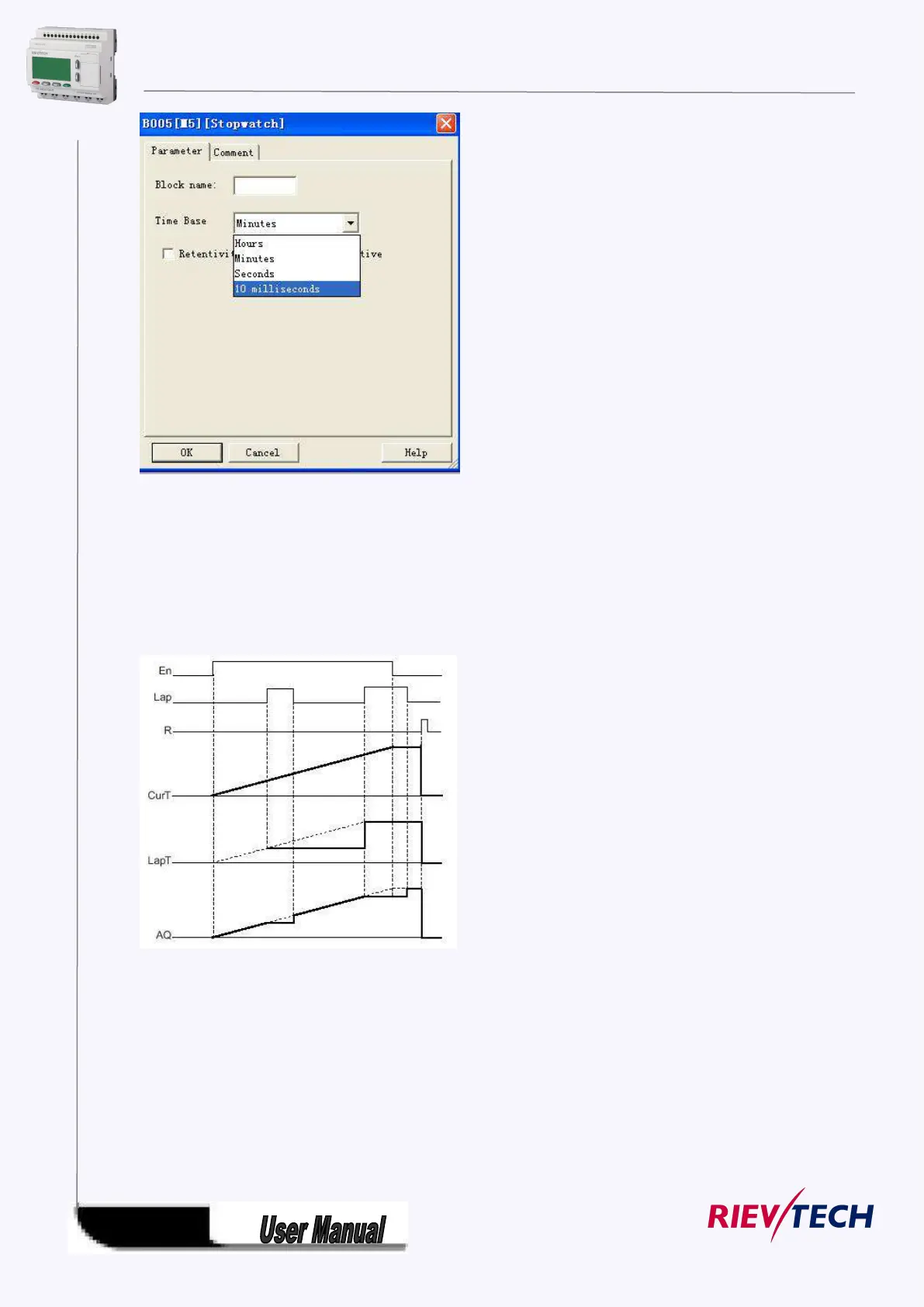

The time base for the elapsed time can be in hours, minutes, seconds, or 1/100ths of seconds (units of
10 milliseconds). The smallest time base, and therefore the resolution, is 10 milliseconds, or 1/100ths of
seconds.
Timing diagram
Description of the function
When En = 1, the current time increases.
When En = 0, the current time counting pauses.
When En = 1 and Lap = 0, the output AQ outputs the value of the current elapsed time.
When En = 1 and Lap = 1, the current time continue increasing, but the output AQ outputs the value of
the Lap time.
When En = 0 and Lap =1, the output AQ outputs the value of the Lap time.
When En = 0 and Lap = 0, the output AQ outputs the value of the latest current time.
