Mode = 0: AQ = Min
Mode = 1: AQ = Max
Mode = 2 and S1= 0 (low): AQ = Min
Mode = 2 and S1= 1 (high): AQ = Max
Mode = 3 or a block value is referenced: AQ = Ax
Output AQ
AQ outputs a minimum, maximum, or actual value depending on the inputs, or
is reset to 0 if configured to do so when function is disabled
Analog inputs: 0 to 10 V corresponds with 0 to 1000 (internal value).
Parameter Mode
You can set the values for parameter Mode based on the actual values of another already-programmed
function:
Analog comparator: Ax - Ay
Analog threshold trigger: Ax
Analog amplifier: Ax
Analog multiplexer: AQ
Analog ramp: AQ
Analog math: AQ
Up/Down counter: Cnt
Threshold trigger: Fre
Max/Min: Ax
PI controller: AQ
Analog filter : AQ
Average value : AQ
You can select the required function by the block number.

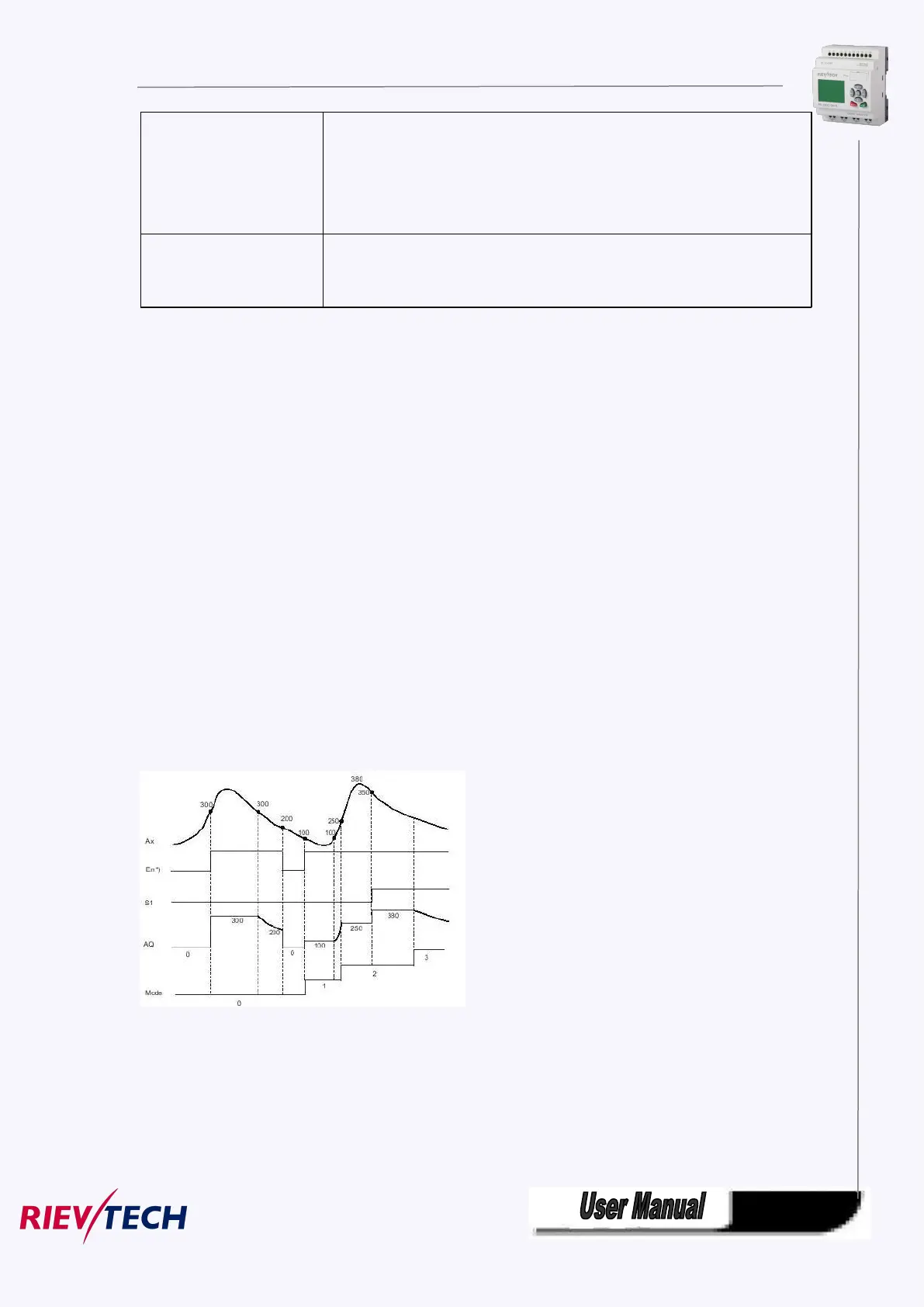

Timing diagram
*) If you select the check box "when En = 0, reset Max/Min"
Description of the function
