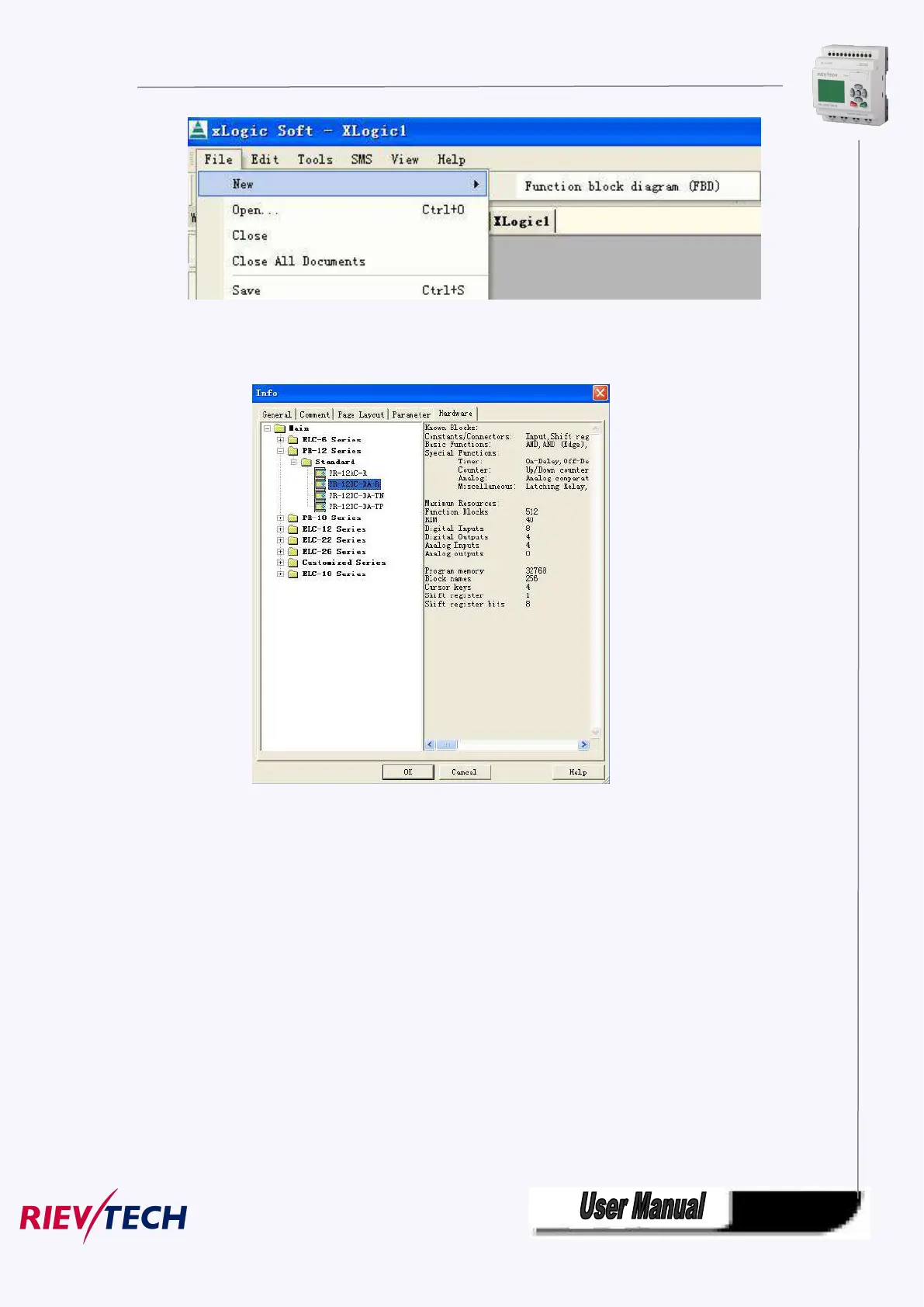

Fig.7. 9.1 Open New Document
Notes: An option Window of outside-meet extended module will appear before a new document opened.
Fig.7. 9.2 Hardware type selection
Page layout set and hardware selection before programming
In the Page Layout tab, you can specify how and on how many pages to print your circuit program. You
can preview the pagination in this tab. If you choose more than one program page, the page breaks are
indicated by white lines on the programming interface.
The hardware type selection is also needed be done before programming. The available
elements are showing in the right area in the above figure.
