Requirement:
1.If I1 of Master is ON/OFF, the Q1 of slave1---slave3 are ON/OFF.
2.Read the AI2 value from the slave1--slave3 to master and display.

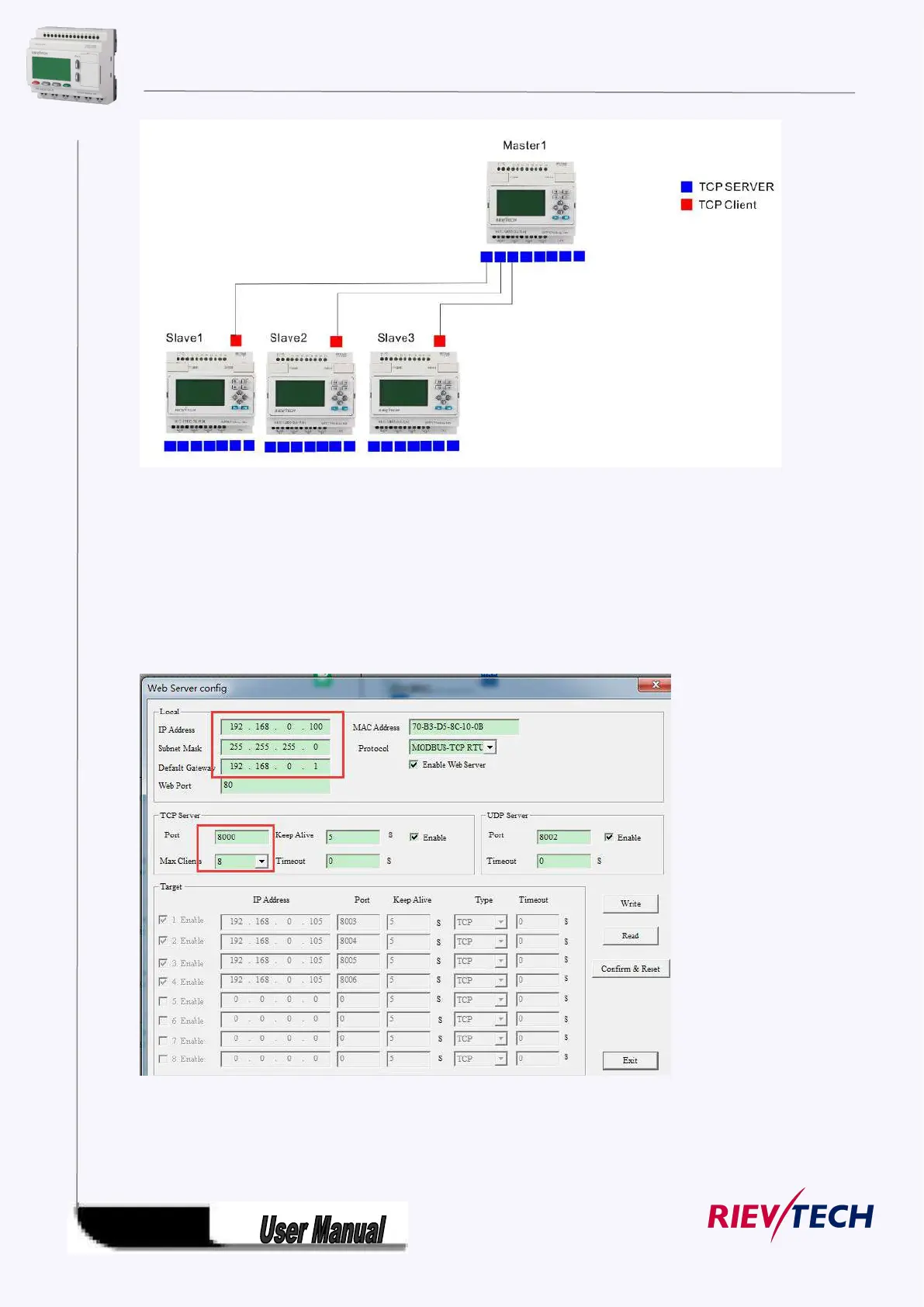

Step1: Configure the IP configuration of the PLCs.
Master
IP: 192.168.0.100
TCP port: 8000
Slave1:
IP:192.168.0.101
Target server: 192.168.0.101
