325

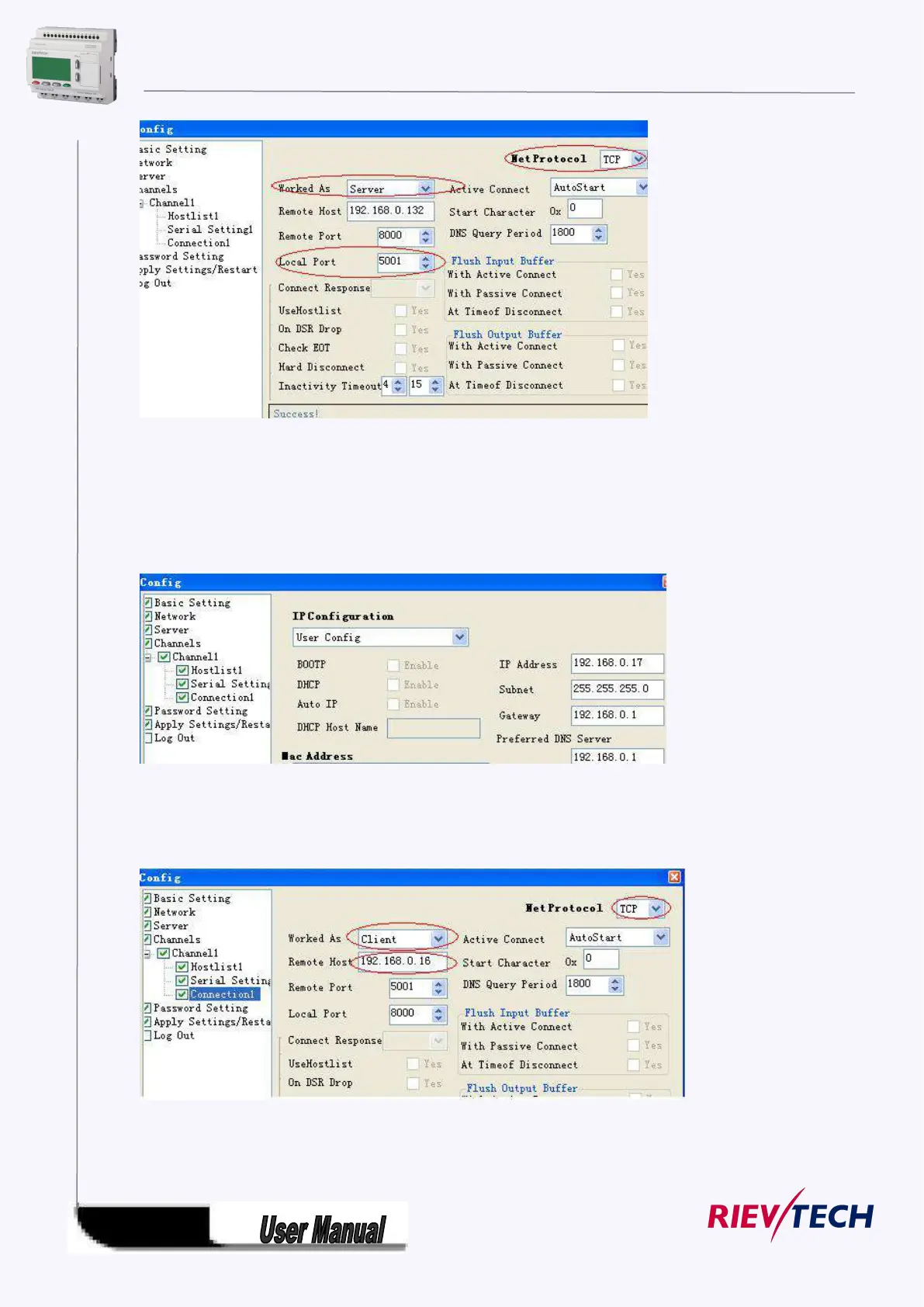

The items with red circle marked must be the same as the above figure.
Slave 1 settings:
IP address is 192.168.0.17
Work as : Client
Remote Host: 192.168.0.16
Remote port: 5001
The items with red circle marked must be the same as the above figure.
PLC address need be changed to 1 (default is 1). Change the CPU address with the panel key
