347

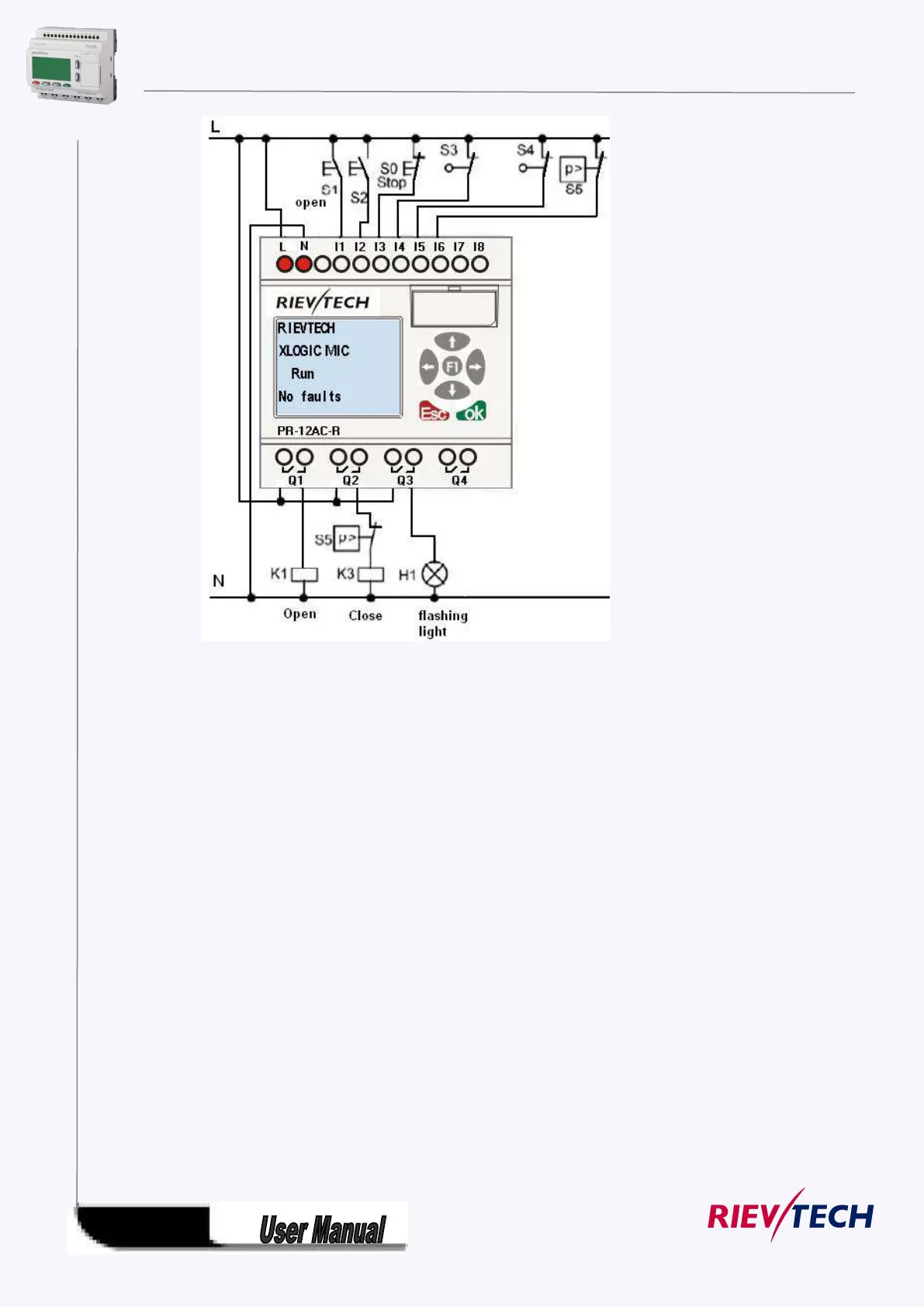

Required components:
 K1 Main contactor
 K2 Main contactor

S0 （break contact） Off button

S1 （make contact） Open button

S2 （make contact） Shutdown button

S3 （break contact） Open position sensor

S4 （break contact） Shutdown position sensor

S5 （break contact） Safety bar
xLogicSoft solution
A xLogic circuit provides a further feature compared to standard controls: The actuation of a safety bar
interrupts the closing motion of the gate. Five seconds before the gate is opens or closes, a flashing light
