Ramp/Soak control (Timer function 3, Timer function 4)
Timer function 3 and Timer function 4 can be used to link Set values 1 to 4 (SV1 to SV4) for
ramp/soak control. In addition, the repeat function can be used to execute repeated ramp/soak control.
If a power failure occurs while the timer time is elapsing, restart will take place from
SV1 (Timer time 00:00) when the power is restored.

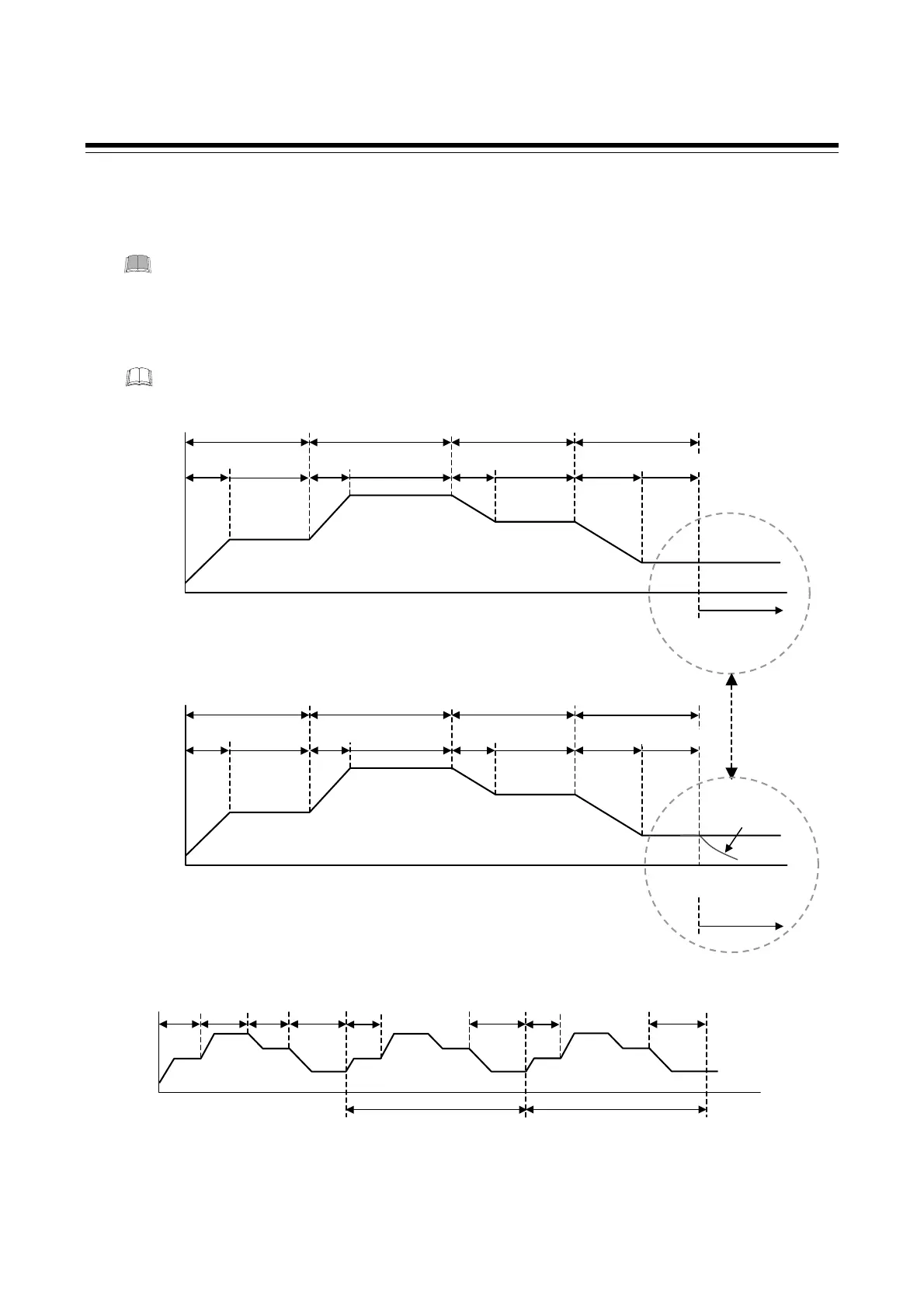

Action of Timer function 3 and Timer function 4
When the power is turned on or STOP is switched to RUN, control always starts from Set value 1
(SV1) and ends at Set value 4 (SV4).
SV selection is invalid in Timer function 3 and Timer function 4.
Timer function 3: After the timer time of Set value 4 (SV4) elapses, control continues using SV4.
Timer function 4: After the timer time of Set value 4 (SV4) elapses, control stops.
Repeat function
The Repeat function can only be used with Timer function 3 and Timer function 4.
[Example: When the Repeat execution times is set to two]
When the Repeat execution times
is finished, the end operation o
Timer function 3 or Timer function
4 takes place
When Timer time 4 ends,
SV1 starts after SV4
1st repeat
SV1
2nd repeat
SV2 SV3 SV4
SV1 SV4 SV1 SV4
Timer time 1
a: Setting change rate limiter (up)
b: Setting change rate limiter (down)
Set value 1 (SV1)
Set value 2 (SV2) Set value 3 (SV3)
Set value 4 (SV4)
Timer time 2 Timer time 3
Timer time 4
Control continues using
Set value 4 (SV4)
Power ON or STOP → RUN
Control is started (PV start) at
Measured value (PV) = Set value (SV)
a
a
bb
a: Setting change rate limiter (up)
b: Setting change rate limiter (down)
a
a
bb
STOP lamp
flashing
Control stop (STOP)
Measured value
(PV)
Parts that differ
between Timer
function 3 and
Timer function 4
Set value 1 (SV1) Set value 2 (SV2) Set value 3 (SV3)
Set value 4 (SV4)
Timer time 1
Timer time 2 Timer time 3
Timer time 4
Power ON or STOP → RUN
Control is started (PV start) at
Measured value (PV) = Set value (SV)
