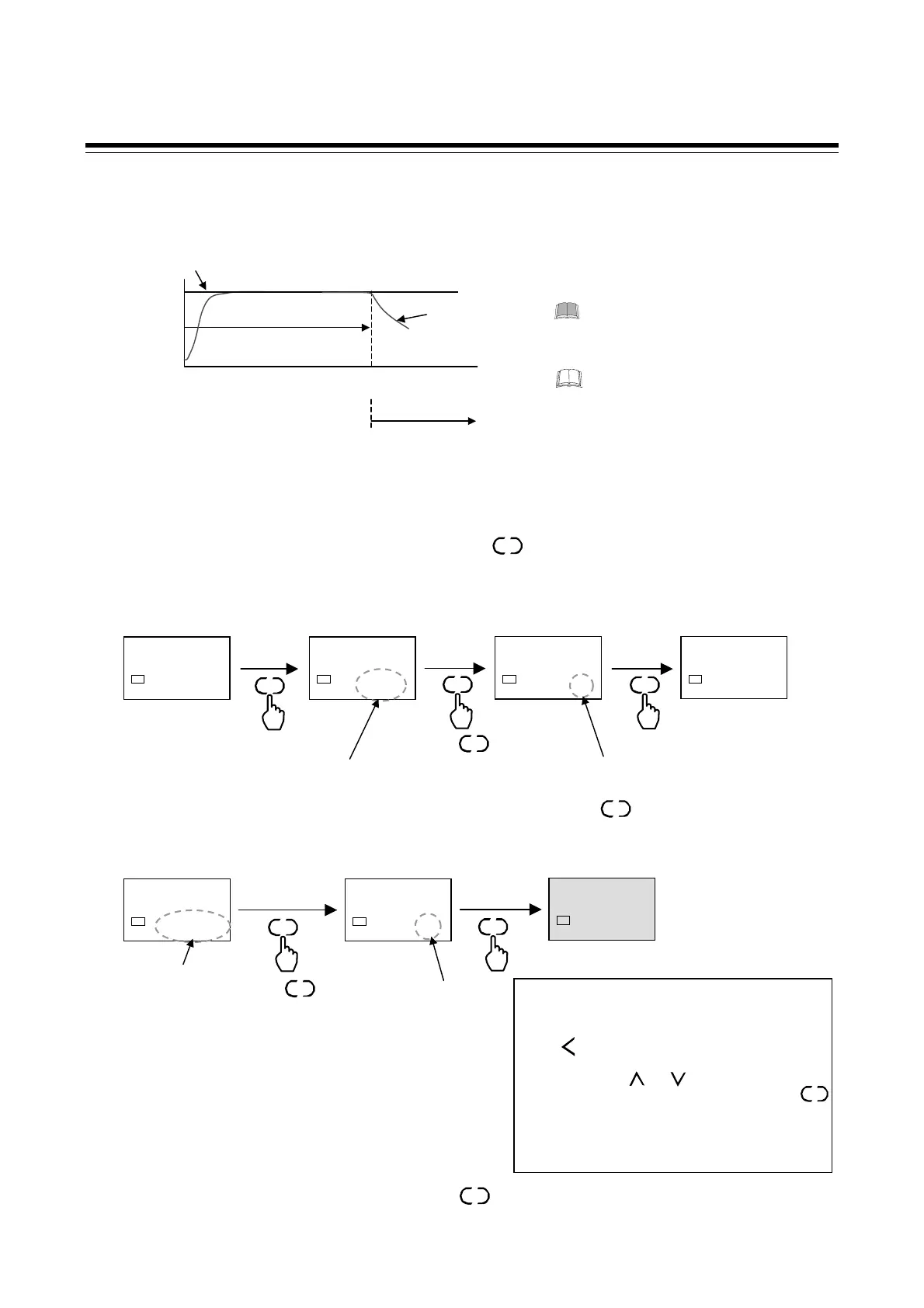

 Control stop (STOP) by Timer function (Timer function2)
Using the Set value (SV) selected in the SV selection parameter, Timer function 2 stops control when
the timer time elapses.
 Timer setting
Before operation, set the Set value (SV) selection used in the Timer function, the Timer function
selection, and the Timer time.
[Example: Stopping control using Set value 1 (SV1) when 60 minutes elapses on Timer 1 after
switching to RUN]
1. In the PV/SV monitor state, press and hold the key for 2 seconds or more to switch to
Parameter setting mode, and then select the setting for the control
set value of SV1 and select
SV1 in the SV selection parameter.
2. Set the Timer time to “60:00” in the Timer 1 parameter. Press the key to move to the Timer
function selection parameter, and set “2 (Timer function 2).”
• Return to the PV/SV monitor
To return the PV/SV monitor, press and hold the key for 2 seconds or more.
SET
SET
SET
PV/SV monitor
28
$
0
SV1
SV1$
0150
SV1
2 seconds or more
Parameter setting mode
Set value 1 (SV1)
S-SV
0001
SV1
SV selection
SET
SET
Press the key to SV
selection screen (
S-SV).
SET
Displays the next parameter
Timer 1
SET
SVT1
00:01
SV1
Select the SV1
Set the control set
value of SV1
If a po
w
er failure occurs while the
timer time is elapsing, the Time
r
time will restart from 00:00 when
the
p
ower is restored.
SVT1
60:00
SV1
Timer 1
TMFS
0002
SV1
Set Timer 1 to
60 minutes
SET
Set the Timer
function to “2.”
Timer function
RPTS
0000
SV1
SET
Displays the next parameter
Repeat execution times
(Not used in Timer function 2)
Press the key to
Timer function screen (
TMFS).
SET
The repeat function is not used in Timer
function 2.

Power ON or
STOP → RUN
Measured value
(PV)
Timer time

Control stop (STOP)
STOP lamp flashing
Set value (SV) ← SV selected by the SV selection parameter
Timer time setting range:
00 minute 01 seconds to 99 minutes 59 seconds or
00 hour 01 minutes to 99 hours 59 minutes
[Factory set value: 00 minute 01 seconds]
The Timer time unit is selected by the Timer time unit parameter
of Engineering mode. (min.: sec. or hour: min.)
[Factory set value of time unit of timer: 0 (min.: sec.)]
Set value change and registration
• The blinking digit indicates which digit can be
set. The blinking digit can be moved by pressing
the key.
•
However, the changed data is not stored by the
operation of the and keys alone. In order
for the new parameter value to be stored, the
key must be pressed within 1 minute after the
new value is displayed. The new value will then
be saved and the display will move to the next
parameter.
R/S
SET
