8. PARAMETER DESCRIPTION
8-6 IMR02C15-E4
8.2 SV Setting Mode
The SV setting mode is used to sets the Set value (SV) or Manipulated output value (MV).
• When the operation mode is the Auto (AUTO) mode, the Set value (SV) can be set.
• When the operation mode is the Manual (MAN) mode, the Manipulated output value (MV) can be
set.

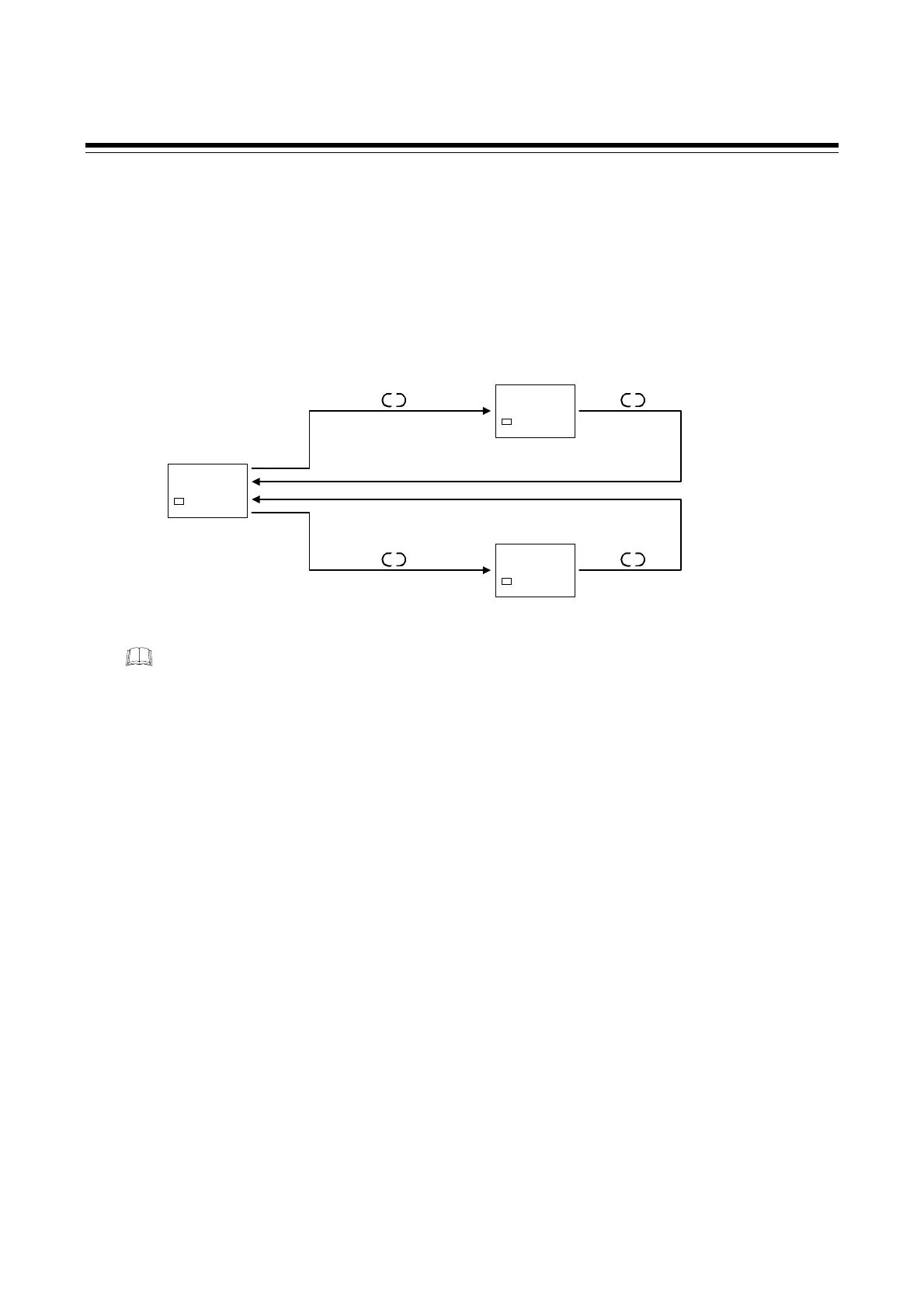

8.2.1 Display sequence
The Set value (SV) can also be set in Parameter setting mode (P. 8-13).
PV/SV monitor
28$
STOP
SV1
(P. 8-3)
28$
0000
SV1
Measured value (PV)/Set value (SV)
(P. 8-7)
When the Auto (AUTO) mode is
selected
SET
28%
000.0
SV1
Measured value (PV)/
Manipulated output value (MV)
(P. 8-8)
SET
SET SET
When the Manual (MAN) mode is
selected
