RKC INSTRUMENT RB100 User Manual

6. OPERATIONS OF THE BASIC FUNCTIONS
IMR02C15-E4
6-28
 Selecting the parameter to lock
Setting example: Locking the Proportional band [heat-side] and following parameters in Parameter
setting mode
To lock Proportional band [heat-side] and following parameters, choose a suitable Set lock level by
which Function block F06 is locked. Set lock level “6: F06 to F10” so that all parameters in F06 to
F10 will lock.

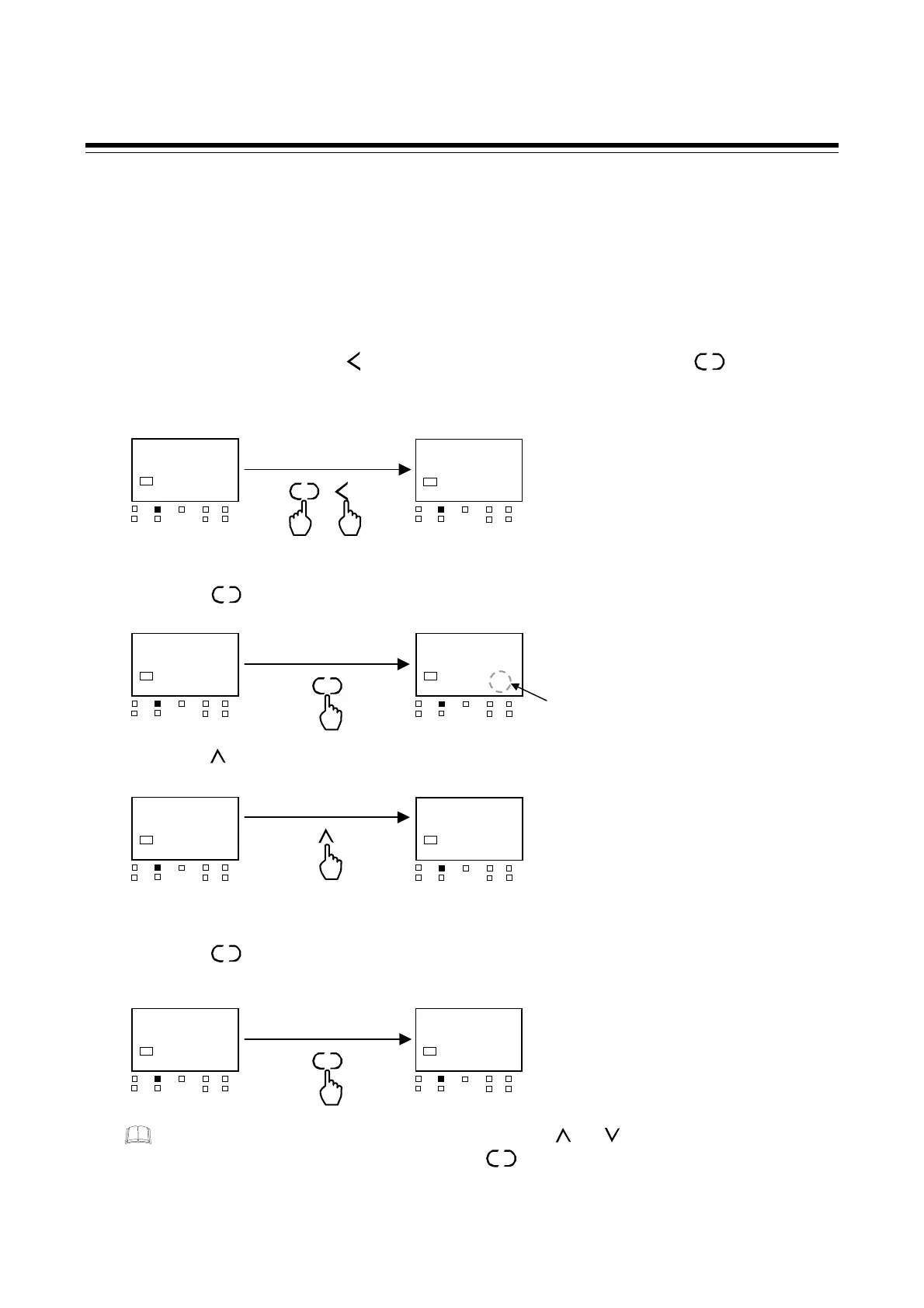

1. In PV/SV monitor, press the key for 4 seconds or more while pressing the key.
The display goes to the Engineering mode.
2. Press the key until Set lock level screen is displayed.
3. Press the key to change to 6.
Set value and description
0: All parameter can be changed
1: Lock “Parameter Group” F01 through F10
2: Lock “Parameter Group” F02 through F10
3: Lock “Parameter Group” F03 through F10
4: Lock “Parameter Group” F04 through F10
5: Lock “Parameter Group” F05 through F10
6: Lock “Parameter Group” F06 through F10
7: Lock “Parameter Group” F07 through F10
8: Lock “Parameter Group” F08 through F10
9: Lock “Parameter Group” F09 and F10
10: Lock “Parameter Group” F10
4. Press the key to store the new value. The display goes to the next parameter.
After a new value is displayed on the display by using and keys, if no key operation is
performed within 1 minute without pressing key, this instrument returns to the Monitor
display mode and the set value will not be changed.
SET
SET R/S
F00.
SV1
OUT1
OUT
2
A
T
DO1 DO
2
MAN
STOP
DO3
DO4
LOcK
0000
SV1
OUT1
OUT
2
A
T
DO1 DO
2
MAN
STOP
DO3
DO4
Set lock level
Flashing
SET
LOcK
0000
SV1
OUT1
OUT
2
A
T
DO1 DO
2
MAN
STOP
DO3
DO4
LOcK
0006
SV1
OUT1
OUT
2
A
T
DO1 DO
2
MAN
STOP
DO3
DO4
Set lock level
SET
LOcK
0001
SV1
OUT1
OUT
2
A
T
DO1 DO
2
MAN
STOP
DO3
DO4
SET
MoNI
0000
SV1
OUT1
OUT
2
A
T
DO1 DO
2
MAN
STOP
DO3
DO4
Monitor selection
(no display)
28
$
200
SV1
OUT1
OUT
2
A
T
DO1 DO
2
MAN
STOP
DO3
DO4
PV/SV monitor
F00.
SV1
OUT1
OUT
2
A
T
DO1 DO
2
MAN
STOP
DO3
DO4
Engineering mode
Function block 00 (F00)
(4 seconds or more)
SET
R/S
＋
SET
