2. MOUNTING
IMR02C15-E4
2-8

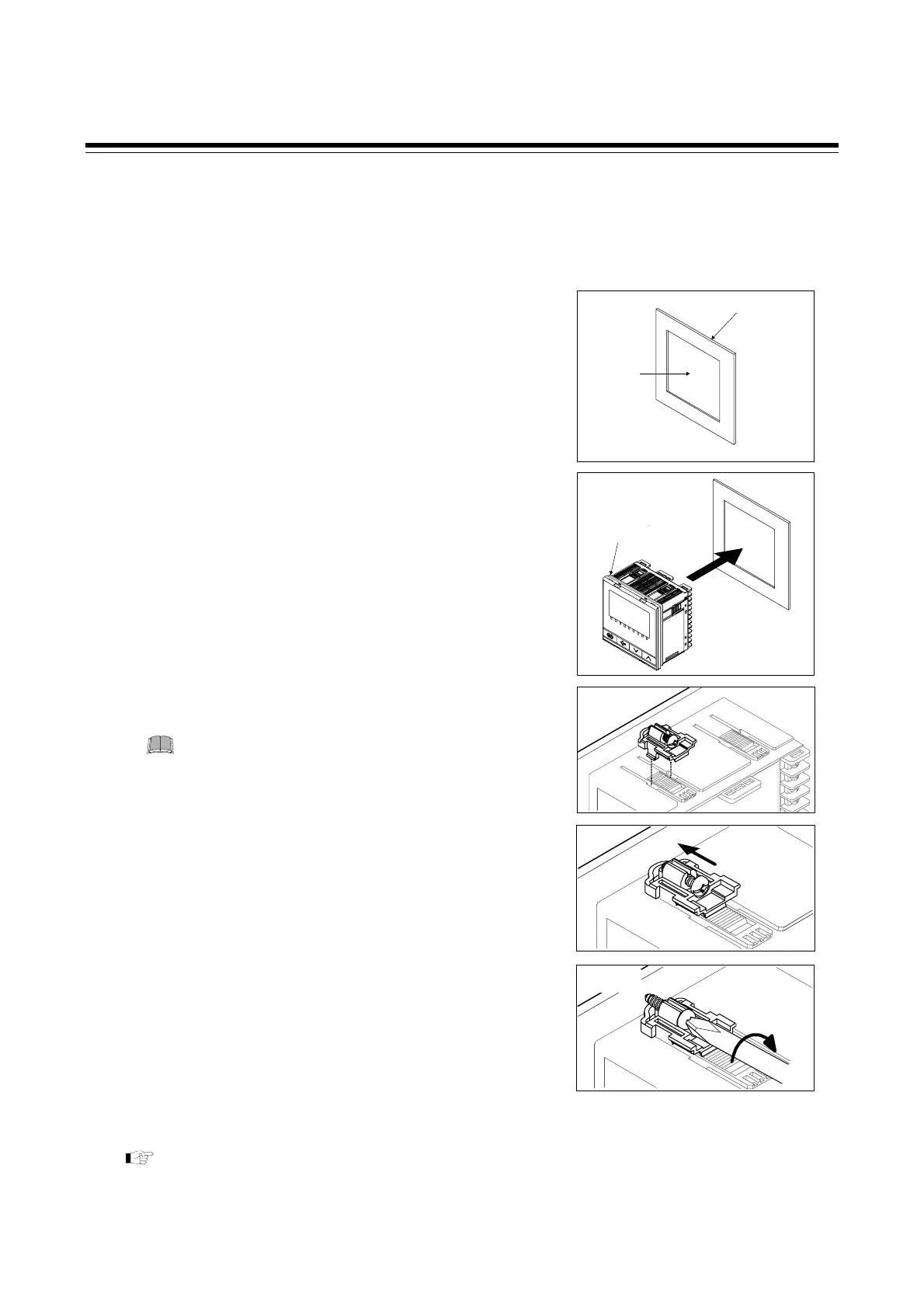

îš„ Mounting procedures (Waterproof/Dustproof type)
The front of the instrument conforms to IP66 (NEMA4X) [Specify when ordering] when mounted on
the panel. For effective Waterproof/Dustproof, the gasket must be securely placed between instrument
and panel without any gap. If gasket is damaged, please contact RKC sales office or the agent.
1.
Prepare the panel cutout as specified in 2.2 Dimensions.
(Panel thickness: 1 to 10 mm)
2.
Set the water/dustproof rubber packing (optional) on the
case from the back side of the instrument shown in
Fig. 2.7.
Insert the instrument through the panel cutout.
3. Insert the mounting bracket into the mounting groove of
the instrument. (Fig. 2.8)
For waterproof and dustproof protection, two
mounting brackets must be placed on the top
and bottom side of the instrument. If the
mounting brackets are placed on the sides of
the controller, waterproof and dustproof
protection will not be guaranteed.
4.
Push the mounting bracket forward until the bracket is
firmly secured to the panel. (Fig. 2.9)
5. Turn only one full revolution after the screw touches the
panel. (Fig. 2.10)
6. The other mounting bracket should be installed the
same way described in 3 to 5.
For replacing of rubber packing, refer to APPENDIX B. Replacing the Waterproof/Dustproof
Rubber Packing (P. A-4).
Fig. 2.6
Panel
Mounting
holes
Fig. 2.10
Fig. 2.8
Fig. 2.9
Fig. 2.7
Case rubber
packing
To Next Page
