RKC INSTRUMENT RB100 User Manual

7. OPERATING ADDITIONAL FUNCTIONS
IMR02C15-E4 7-5

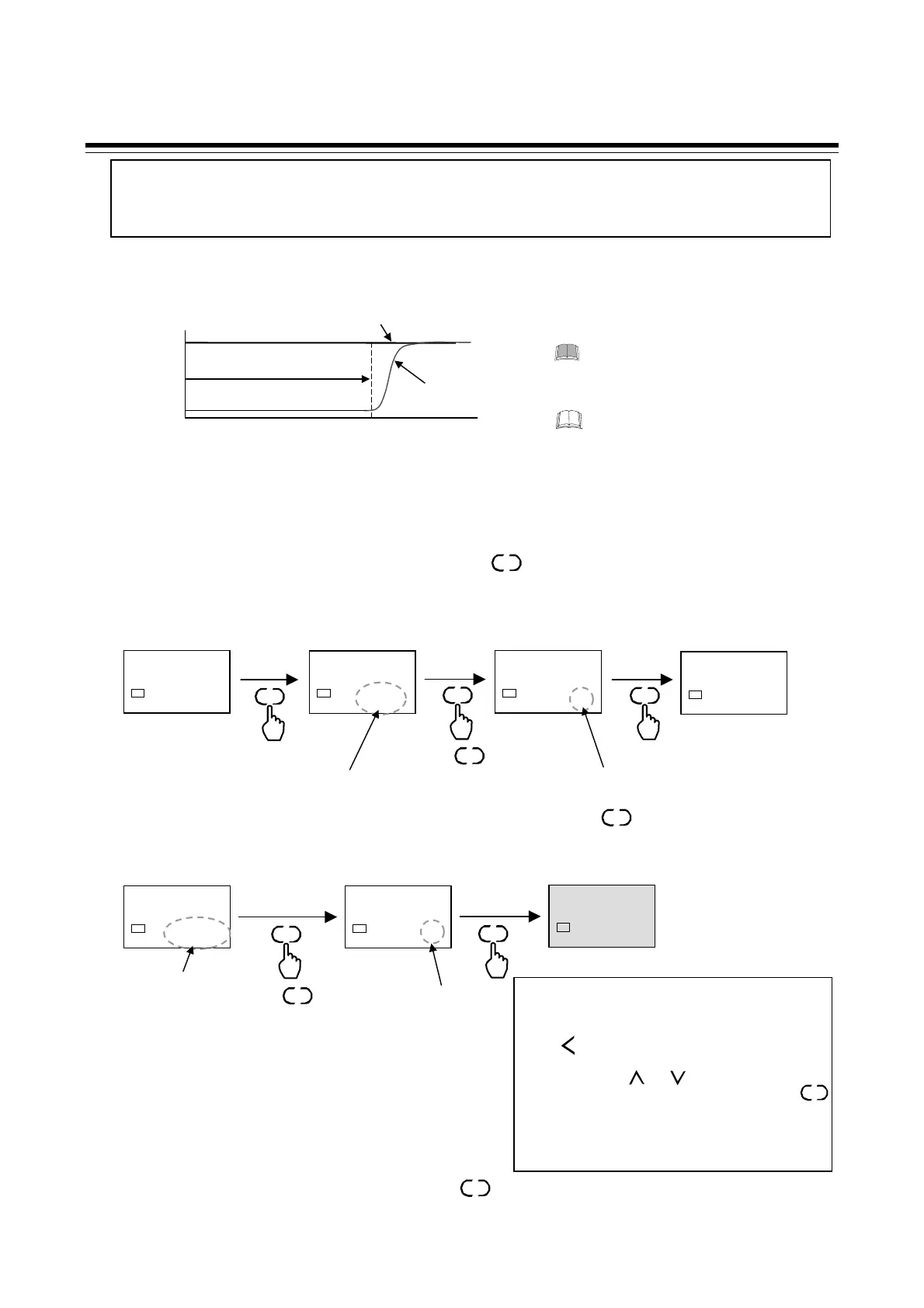

7.2 Timer Function
 Control start (RUN) by Timer function (Timer function 1)
Timer function 1 can be used to start control using the Set value (SV) selected by the SV selection parameter
after the timer time elapses.
 Timer setting
Before operation, set the Set value (SV) selection used in the Timer function, the Timer function
selection, and the Timer time.
[Example: Timer 1 starts control using Set value 1 (SV1) 10 minutes after transfer to RUN]
1. In the PV/SV monitor state, press and hold the key for 2 seconds or more to switch to
Parameter setting mode, and then select the setting for the control
set value of SV1 and select
SV1 in the SV selection parameter.
2. Set the Timer time to “10:00” in the Timer 1 parameter. Press the key to move to the Timer
function selection parameter, and set “1 (Timer function 1).”
• Return to the PV/SV monitor
To return the PV/SV monitor, press and hold the key for 2 seconds or more.
Timer time setting range:
00 minute 01 seconds to 99 minutes 59 seconds or
00 hour 01 minutes to 99 hours 59 minutes
[Factory set value: 00 minute 01 seconds]
The Timer time unit is selected by the Timer time unit parameter
of Engineering mode. (min.: sec. or hour: min.)
[Factory set value of time unit of timer: 0 (min.: sec.)]
SET
SET
SET
PV/SV monitor
28
$
0
SV1
SV1$
0150
SV1
2 seconds or more
Parameter setting mode
Set value 1 (SV1)
S-SV
0001
SV1
SV selection
SET
SET
Press the key to
SV selection screen (
S-SV)
SET
Displays the next parameter
Timer 1
SET
SVT1
00:01
SV1
Select the SV1
Set the control set
value of SV1

Power ON or
STOP → RUN
Measured value (PV)
Timer time

Actual control start time
(STOP lamp flashing)
Set value (SV) ← SV selected by the SV selection parameter
If a power failure occurs while the
timer time is elapsing, the Time
r
time will restart from 00:00 when
the
p
ower is restored.
SVT1
10:00
SV1
Timer 1
TMFS
0001
SV1
Set the time
of Timer 1 to
10 minutes
SET
Set the Timer
function to “1.”
Timer function
RPTS
0000
SV1
SET
Displays the next parameter
Repeat execution times
(Not used in Timer function 1)
Press the key to Timer
function screen (
TMFS)
SET
The Repeat function is not used in Timer
function 1.
Parameters related to the Timer function are set to “not displayed” in the factory default setting. Before using the
parameters, set “0: Display” in the F02 block selection (no display) [S.F02] parameter of Function block 02 (F02)
and the F03 block selection (no display) [S.F03] parameter of Function block 03 (F03) in Engineering mode.
For the setting procedure, refer to  Hiding the parameters of the Parameter setting mode (P. 6-37).
Set value change and registration
• The blinking digit indicates which digit can be
set. The blinking digit can be moved by pressing
the key.
•
However, the changed data is not stored by the
operation of the and keys alone. In order
for the new parameter value to be stored, the
key must be pressed within 1 minute after the
new value is displayed. The new value will then
be saved and the display will move to the next
parameter.
R/S
SET
