1. OUTLINE
1-8 IMR02C15-E4
1.5 Parts Description
This section describes various display units and the key functions.

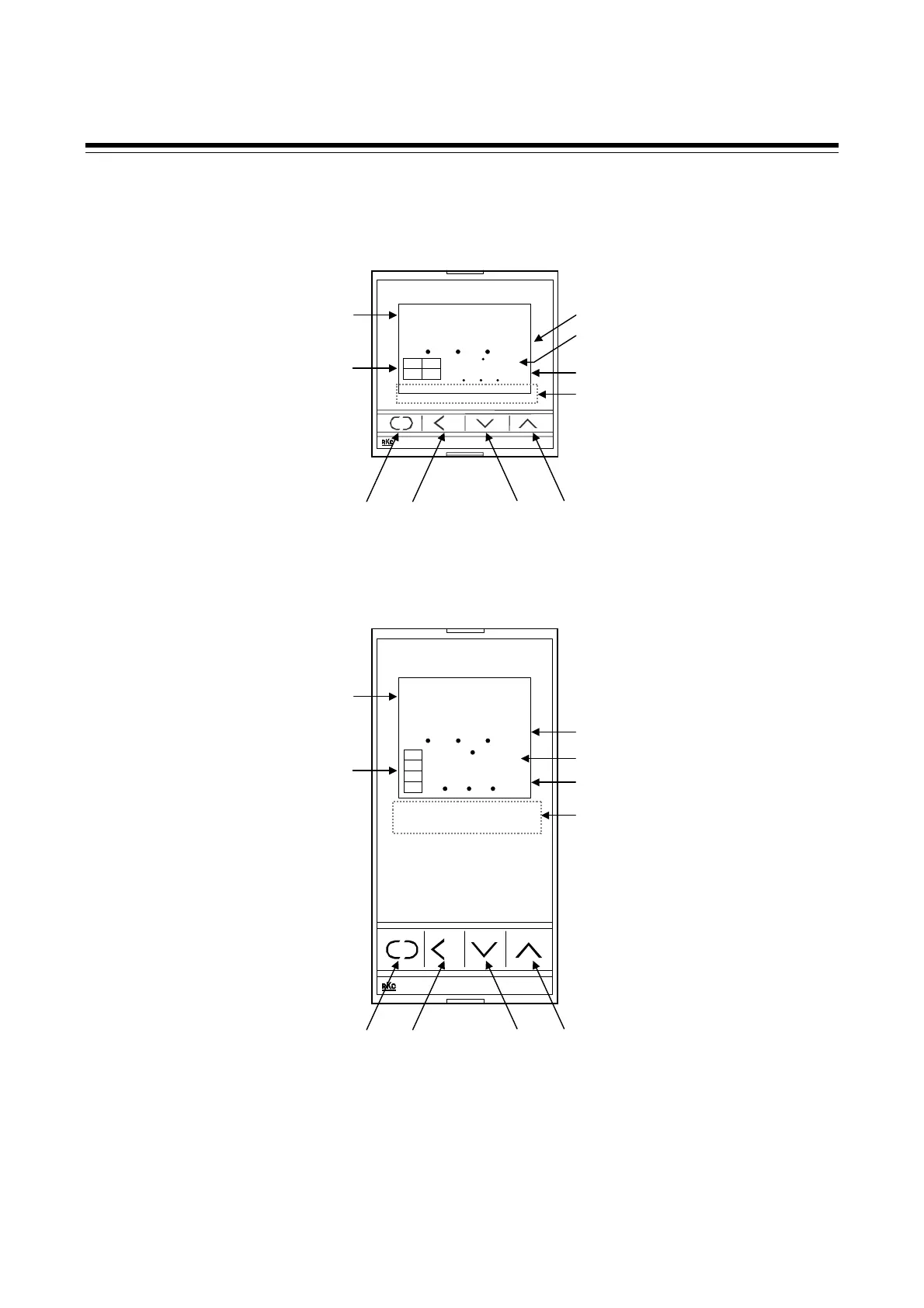

 Front Panel View
Measured value (PV) display [Green]
Unit display [Green]
Set value (SV) display [Orange]
Set lock display [Orange]
A
utotuning (AT) lamp [Green]
Output (OUT) lamp [Green]
Manual (MAN) mode lamp [Green]
STOP lamp [Green]
Digital output (DO) lamp [Orange]
STEP set value lamp [Orange]
Up key
Down key
Set (SET) key
Shift key
SET R/S
RB100
PV
SV1
SV2
SV3
SV4
8888
!
‡‡‡‡
‰
      
A
T OUT1 OUT2 MAN STOP DO1 DO2
RB100
A
utotuning (AT) lamp [Green]
Output (OUT) lamp [Green]
Manual (MAN) mode lamp [Green]
STOP lamp [Green]
Digital output (DO) lamp [Orange]
 AT  OUT1  OUT2  DO1  DO2
 MAN  STOP  DO3  DO4
SV1
SV2
SV3
SV4
SET R/S
8888
!
‡‡‡‡
PV
‰
RB400
RB400
Measured value (PV) display [Green]
Unit display [Green]
Set value (SV) display [Orange]
Set lock display [Orange]
STEP set value lamp [Orange]
Up key
Down key
Set (SET) key
Shift key
