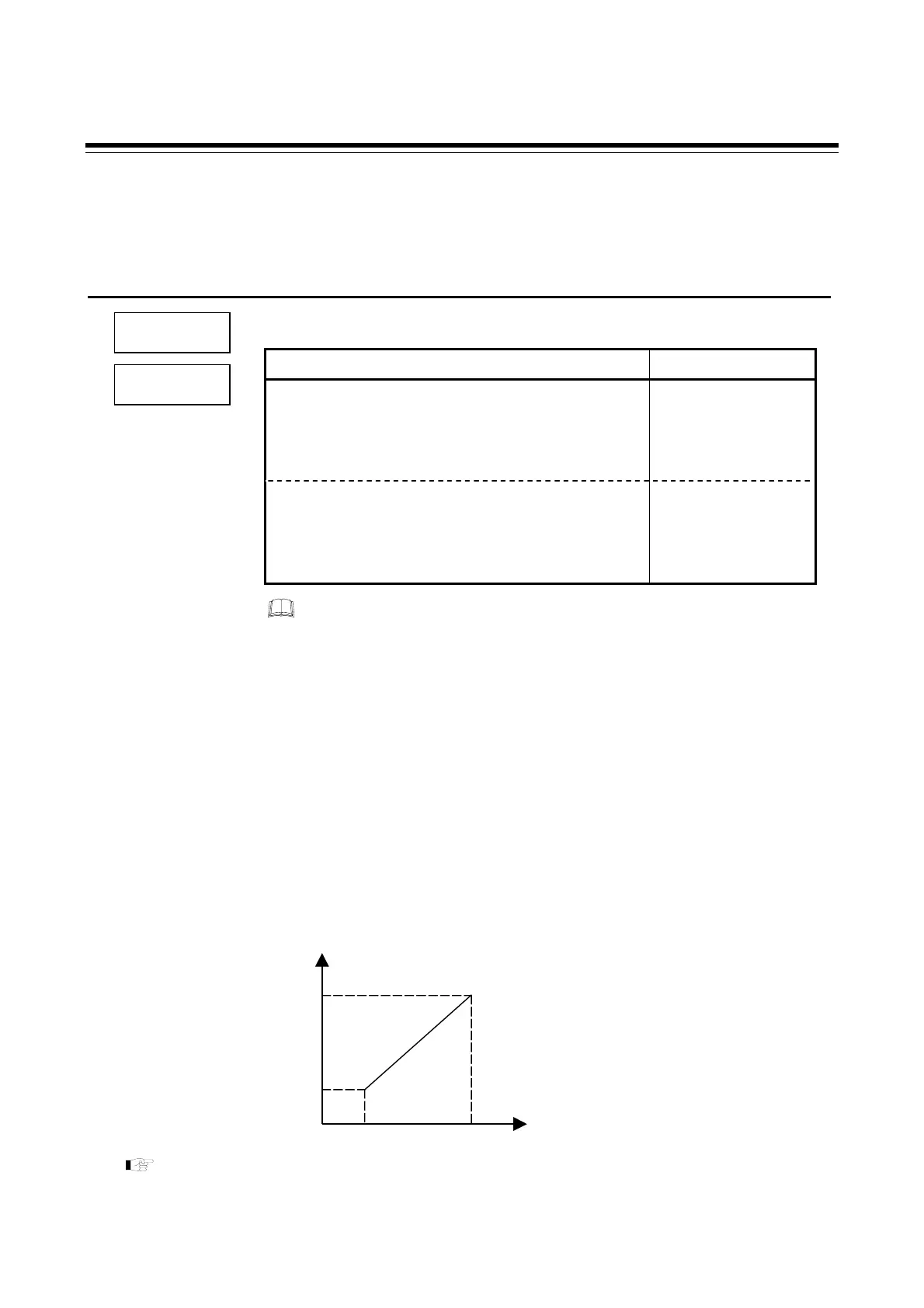

8. PARAMETER DESCRIPTION
IMR02C15-E4
8-99
Dummy
F33
Transmission output scale high
Transmission output scale low
Use to set a scale high limit value or low limit value of the Transmission output.
Data range Factory set value
Transmission output scale high
When MV1 is selected:
Transmission output scale low to +105.0 %
When PV or SV is selected:
Transmission output scale low to Input scale high
High-limit value of
input span
Transmission output scale low
When MV1 is selected:
−5.0 % to Transmission output scale high
When PV or SV is selected:
Input scale low to Transmission output scale high
Low-limit value of
input span
The Decimal point position is the same as Decimal point position (PGdP)
of the input.
Related parameters
Engineering mode:
• Output action at STOP mode (P. 8-96)
• Transmission output type (P. 8-98)
• AO full scale adjustment value, AO zero point adjustment value (P. 8-100)
 Description of function
This is a scaling of the output range of the transmission content selected by the Transmission output
type (Ao).
Example: If scaling is made under the following conditions:
Output signal type: Current output 4 to 20 mA DC Transmission output scale high (AHS): +1372 °C
Transmission output type (Ao): Measured value (PV) Transmission output scale low (ALS): −200 °C
Measured value (PV)
20 m
A
4 m
A
−200 °C +1372 °C
Current output
For the setting example of Transmission output, refer to 7.3 Transmission Output Function
(P. 7-12).
AHS
ALS
