ROBOT S6

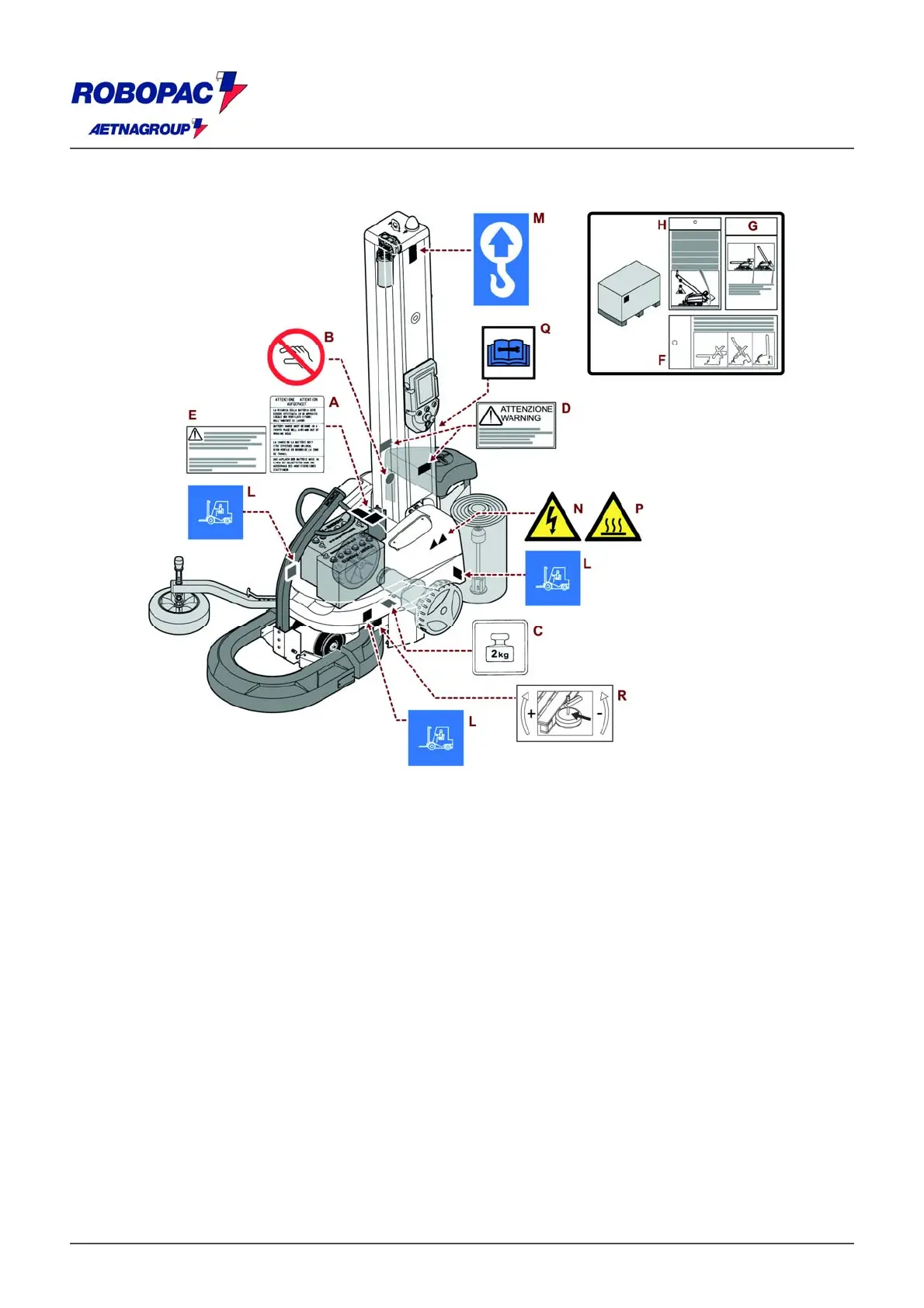

For each sign is specified the relative description.
) Information sign: It indicates that the “the battery should be charged in a suitable and well-ventilated
environment, outside the working area”.
B) Prohibition sign: Do not use your hands to intervene on the component.
C) Information sign: It specifies the weight of the component.
D) Warning signal: Indicates the screws that should be fastened after the column is lifted.
E) Information sign: It indicates that the batteries must be charged after a prolonged period of inactivity.
F) Information sign (applied during the transportation phase): It informs about the hazards and provides
instructions on how to prepare the machine for use after the transportation phase.
G) Information signal (applied during transport): Indicates how to remove the package from the machine.
H) Information signal (applied during transport): Indicates column lifting conditions.
L) Information signal: indicates the lifting points with a fork device.
M) Information sign: it indicates the points where to attach the hooks of the lifting device.
N) Electrical hazard warning sign: do not enter area to avoid hazards of electrical shocks or electrocution.
P) Hazard sign: Do not touch the area to avoid the risk of burns.
Q) Carefully read the manual before carrying out any type of work.
R) Adjustment signal: indicates how to adjust the feeler thrust.
(Optional).
Important
Check that the plates are clearly readable, and, if necessary, replace them with new ones that shall be
positioned in the same places as previously.
