ROBOT S6
6. Re-tighten the nuts up to the surface of the chain tightening pulley.
7. Undo screw (C).
8. Refit the guard (A).

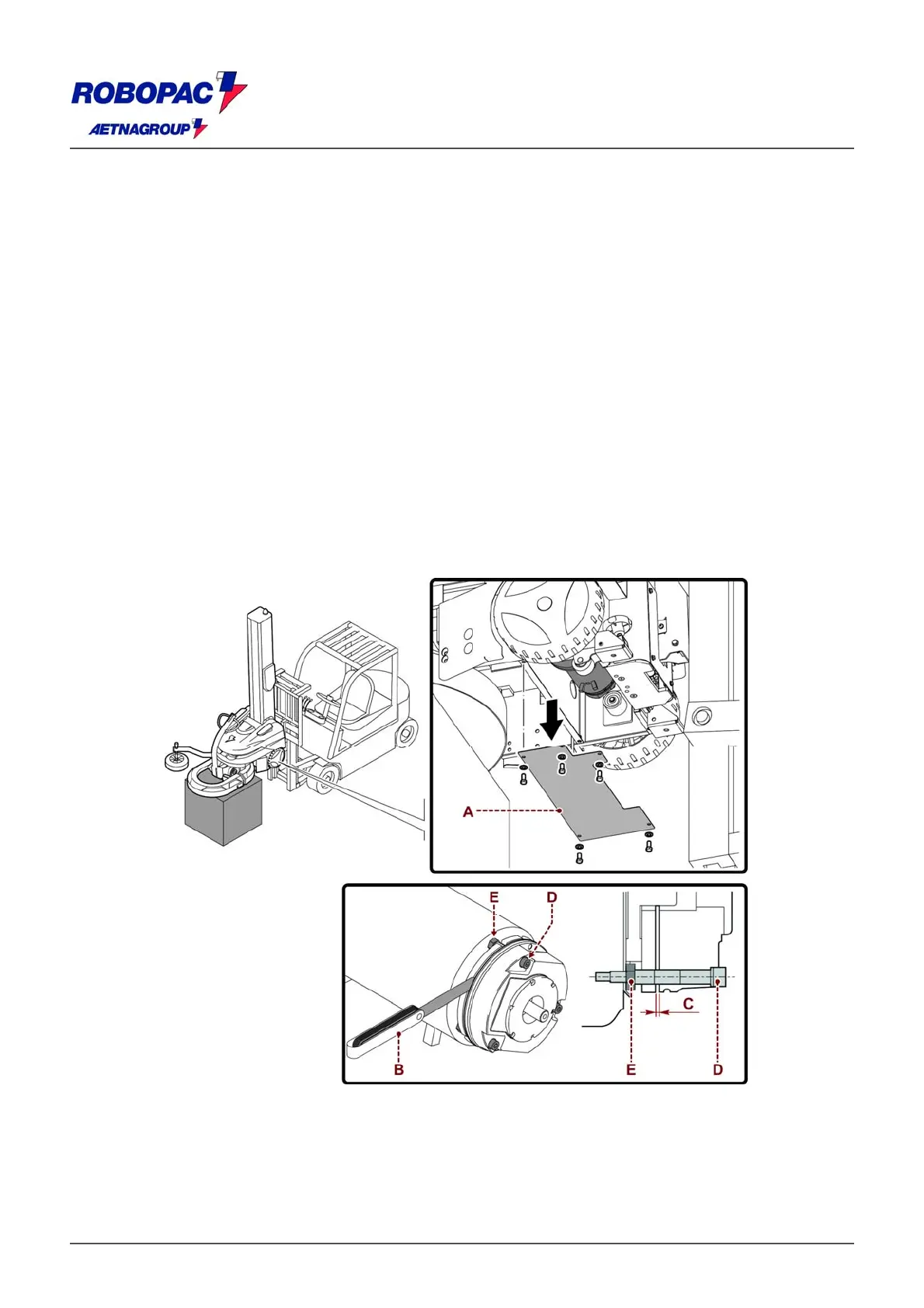

5.6. BRAKE ADJUSTMENT
Proceed as indicated.
1. Lift the machine and rest it on a support.
2. Make sure that the machine is resting correctly, to prevent the risk of crushing during the operation.
3. Remove the guard (A).
4. Loosen the locking nuts (E).
5. Using a thickness gauge (B), insert a spacer of 0,25 mm near the screw (D).
6. Adjust the distance (C) between the magnet and the flange using the screw (D) until you feel a slight
resistance on the thickness gauge.
7. Repeat the intervention near the other screws.
8. Using a thickness gauge, try to insert between the magnet and the flange, at the screws (D), a spacer
of 0,3 mm.
The intervention is considered to be carried out correctly if it is not possible to insert the thickness
gauge.
9. Tighten locknuts (E).
10. Refit the guard (A).
