ROBOT S6
3.6. TECHNICAL SPECIFICATIONS
T
he figure and table specify the dimensional characteristics and technicaldata of the machine.

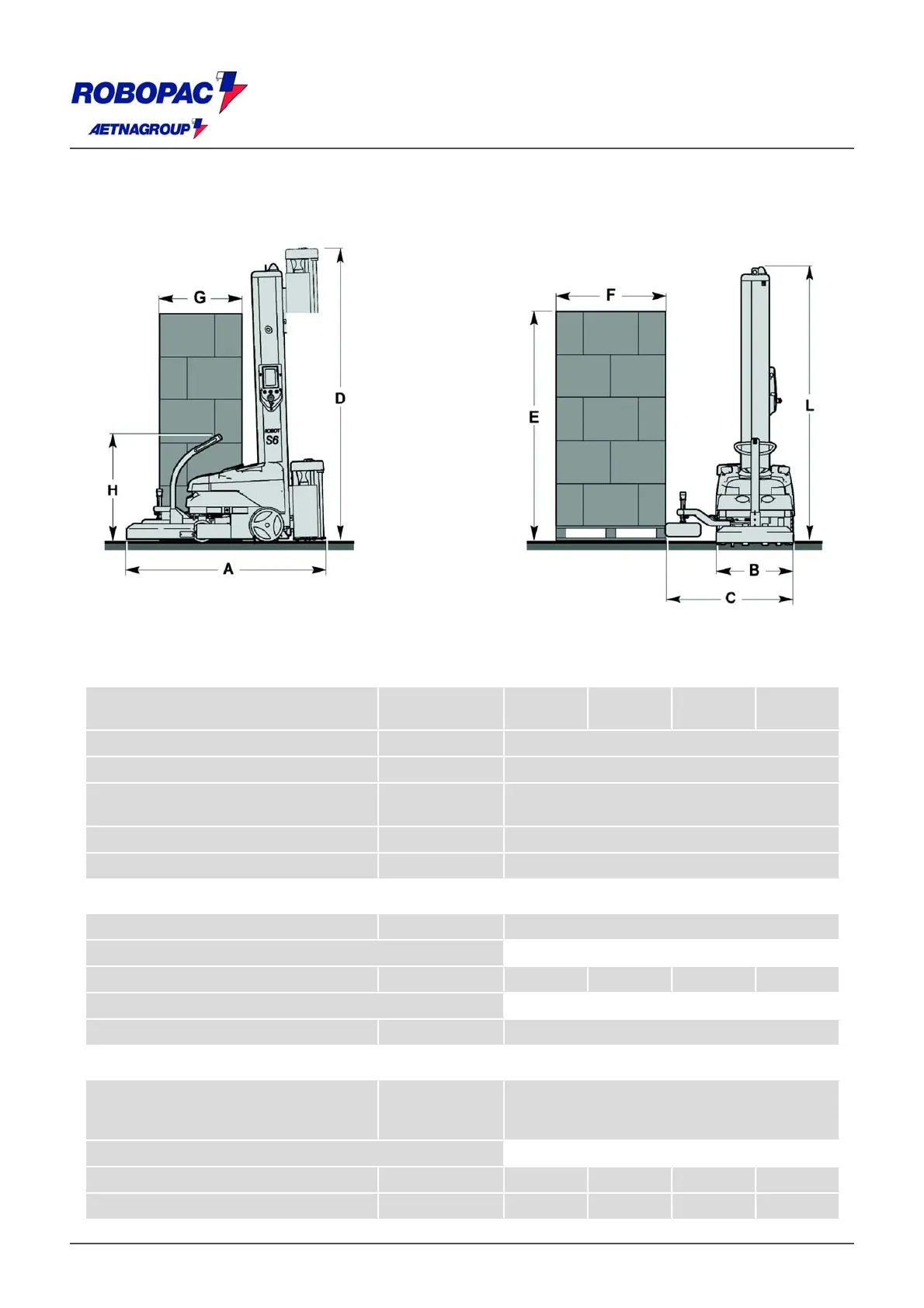

3.6.1.MACHINE AND PALLET DIMENSIONS
Description Units of
measurement
FRD FR PDS PVS
Total machine length (A) mm 1825
Machine width (B) mm 722
Machine width (C) with feeler
wheel open
mm 1183
Tiller height (H) mm 984
(FxG) Pallet dimensions mm ≥ 800
Standard version
Pallet height (E) mm 2200
Max. machine height (D)
(E) max = 2200 mm 2580 2630 2630 2805
Sliding column max. height (L)
(E) max = 2200 mm 2556
Optional version
Pallet height (E) mm
mm
mm
2400
2800
3100
Max. machine height (D)
(E) max = 2400 mm 2780 2830 2830 3005
(E) max = 2800 mm 3180 3230 3230 3405
