ROBOT S6
4.4. INSTALLATION OF DISMOUNTED PARTS
Proceed as indicated.

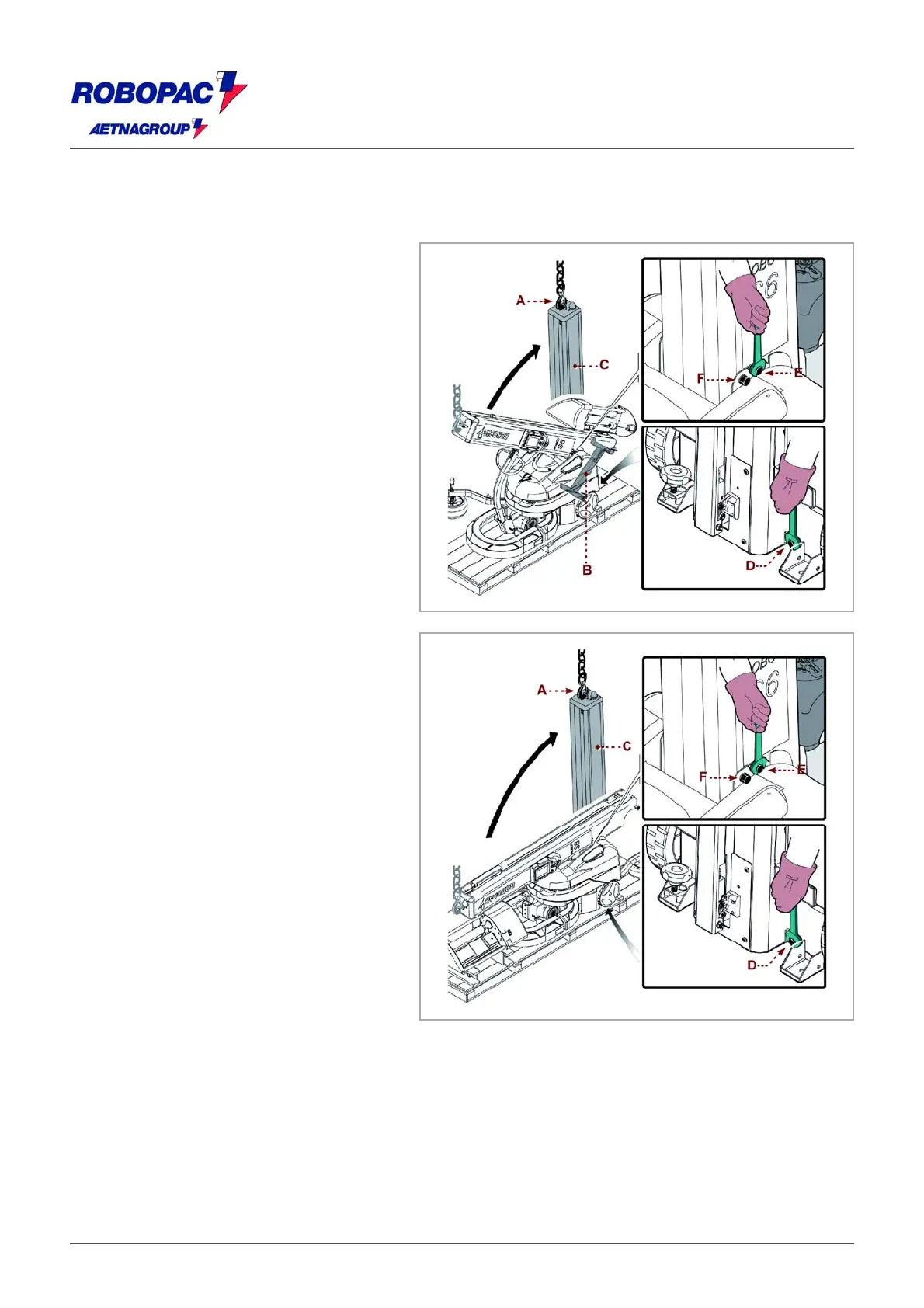

4.4.1.INSTALLATION (WITH TILTED
COLUMN)
1. Fasten the lifting device to the eyebolt
(A) to keep the column in position.
2. Remove the support (B).
3. Lift the column (C).
4. Tighten the clamping screws (D-E).
5. Tighten the fixing screws (F) ofthe hinge.
6. Release the lifting device.
4.4.2.INSTALLATION (WITH
HORIZONTAL COLUMN)
1. Connect lifting device to eyebolt (A) and
lift column (C).
2. Tighten the clamping screws (D-E).
3. Tighten the fixing screws (F) ofthe hinge.
4. Release the lifting device.
28/94
