ROBOT S6
Every 5000 hours
or 50000 cycles
∗
Reduction gears
and gearmotors
Change the
lubricant ¹
- See “Lubrication
point diagram”
¹ Do not top-up and/or replace the lubricant in reduction gears and gearmotors lubricated for life.
∗
The cycle-based frequency was defined according to the standard cycle.
The cycle considered standard is the following: top film reel 500 mm, top pallet 1500 mm, pallet
weight equal to 1500 kg, total wrapping time two revolutions at the top, two revolutions at the peak,
rotation speed 80 m/1', trolley up and down speed equal to 4 m/1'.

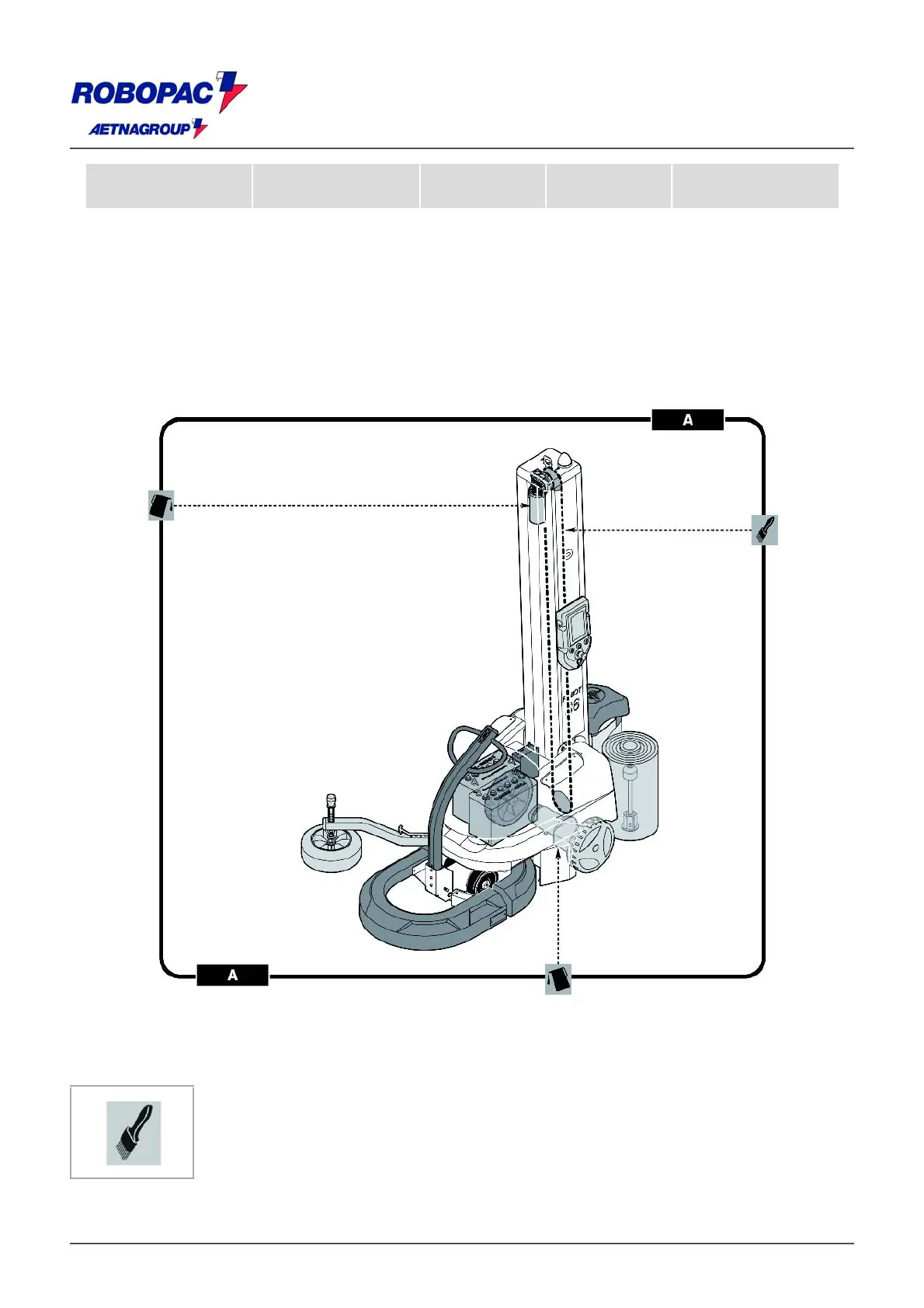

7.3. LUBRICATION POINT DIAGRAM
T
he followin
g
dia
g
ram shows the main com
p
onents and the fre
q
uenc
y
of the lubrication interventions.
S
ymbol and Descriptio
n
A
- Every 200 hours or 5000 cycles.
Smear with grease.
59/94
