ROBOT S6

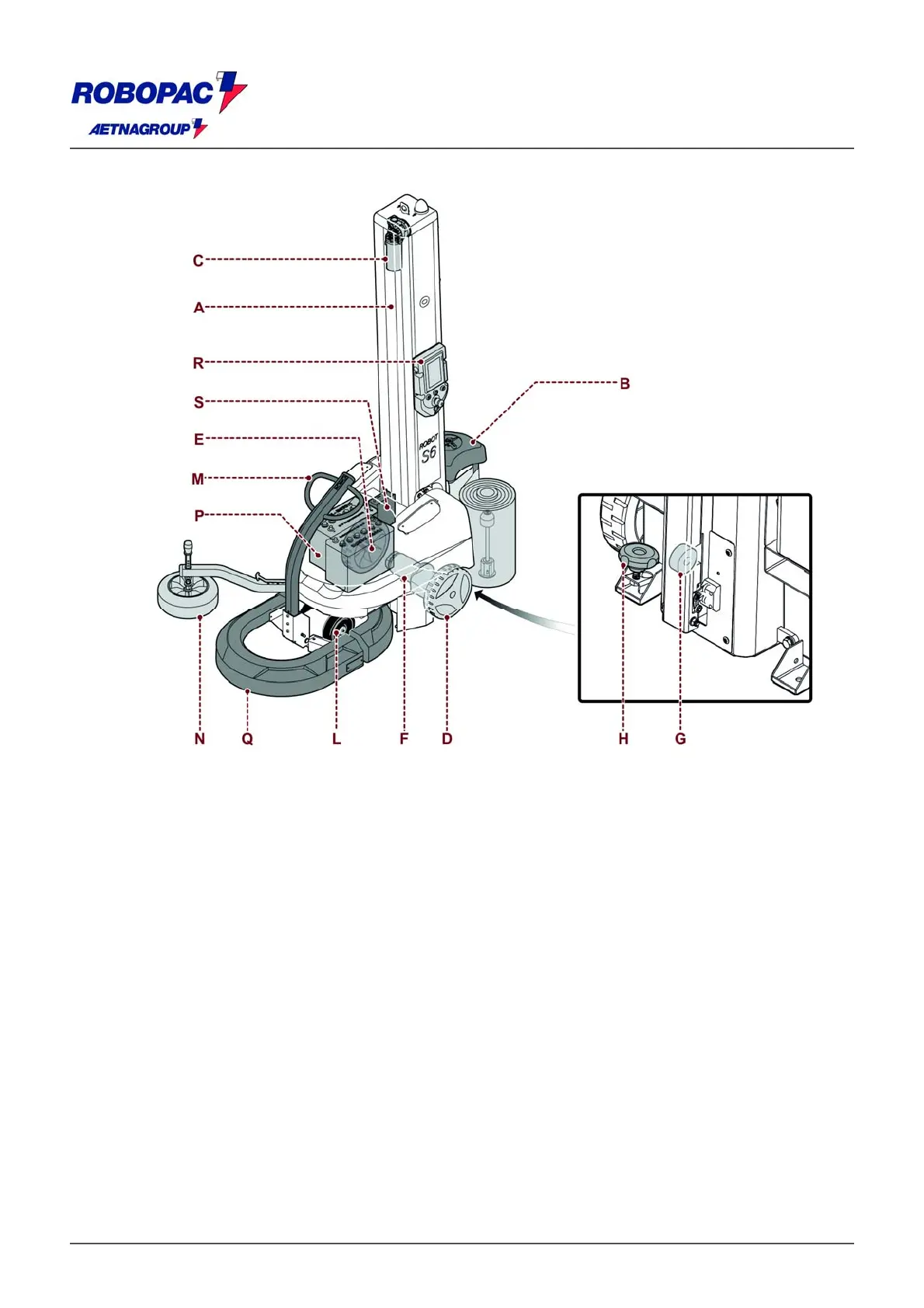

he followin
list
rovides a descri
tion of the main com
onents and their functions.
) Slide column: for the vertical handling of the reel carriage.
B) Roll-holder carriage: It includes a series of stretching and prestretching devices.
For further details refer to the table "Roll-holder Carriage Specifications".
he vertical movement is controlled by the gearmotor (C), operated by an electric motor powered by
the batteries (P).
D) Driving wheel: It is operated by the electric motor (F), powered by the battery (P). This wheel is
equipped with an electromagnetic brake.
he electromagnetic brake stops the driving wheel when the battery power is turned off due to a fault
(e.g. upon a component failure) or when the machine is stopped (upon an emergency or a cycle stop).
When the driving wheel is locked, the machine can be moved only over short distances using the small
backup wheel (G).
E) Idle wheel: It is installed in line with the driving wheel (D).
G) Backup wheel: By turning the handwheel (H), the backup wheel allows detaching the locked driving
wheel (D) from the ground, in order to be able to move the machine over short distances.
M) Tiller: It is equipped with leading wheels (L) and is used to manually move the machine.
N) Feeler wheel: Its purpose is to follow the perimeter of the pallet during the wrapping cycle.
P) Batteries: They provide power supply to the electric motors and the circuit.
Q) Safety bumper: In case of collision, this safety device stops the machine.
For further details consult the paragraph "Description of safety devices".
R) Control panel: It is equipped with electromechanical controls and a touch-screen display for the
programming of the wrapping parameters.
S) Battery charger: is electronic and is used to recharge the batteries.
