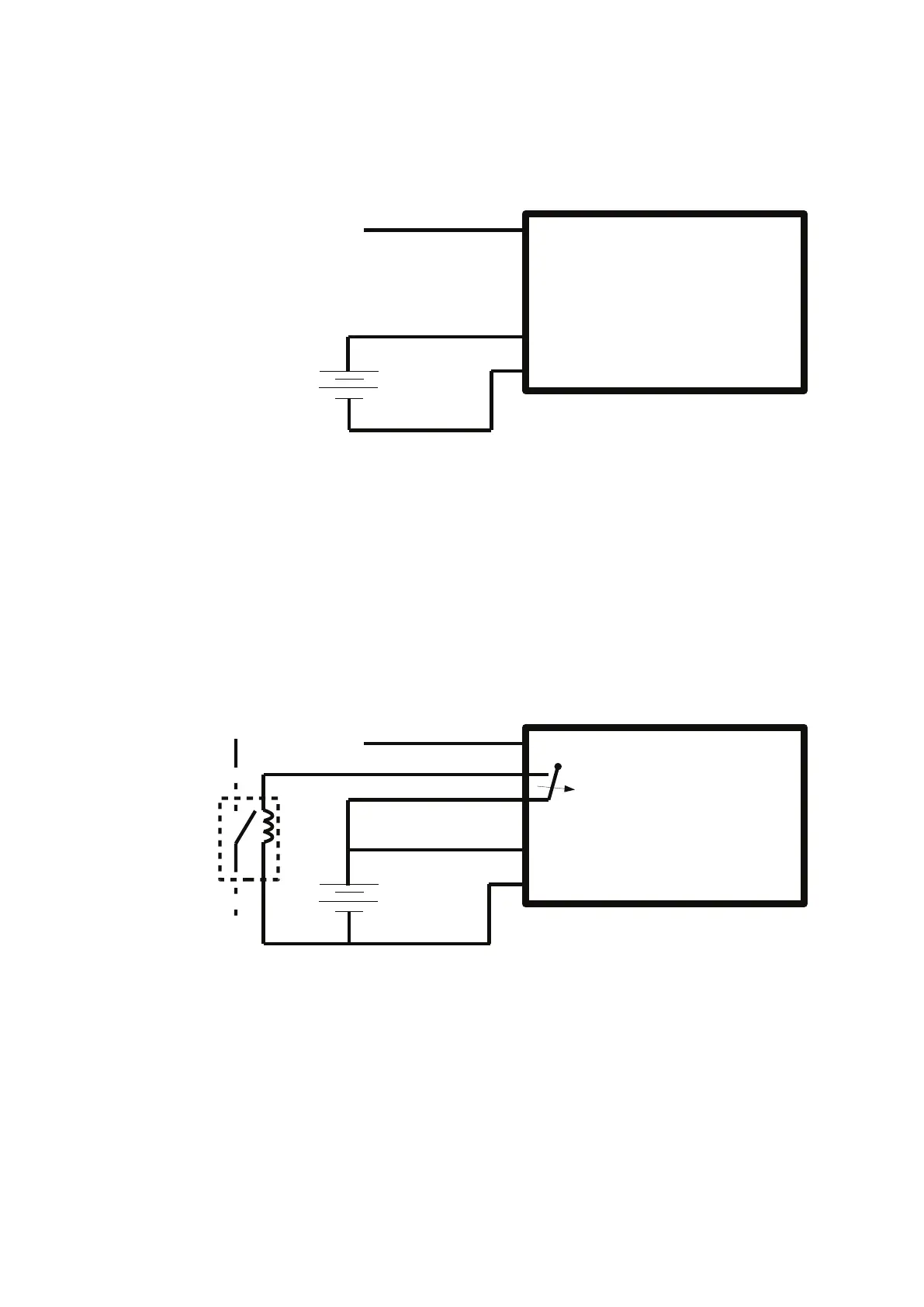

Example diagram of connection between battery charger and battery.
Example diagram of connection with use of battery charger internal auxiliary relay.
The auxiliary relay is Normally Off and switches on when the battery charger is turned on.
The internal auxiliary relay can be used with maximum voltages of 5Adc to 24Vdc.
8
BATTERY CHARGER
BATTERY CABLES
2x2,5mmq
MAINS CABLE
BATTERY CHARGER
BATTERY CABLES
2X2,5mmq
MAINS CABLE
AUXILIARY RELAY CABLES
2x1mmq
EXTERNAL
RELAY (not
supplied)
INTERNAL
AUXILIARY RELAY
5Adc@24Vdc MAX
74/94
