Rockwell Automation Publication 5094-UM001E-EN-P - April 2020 131
Troubleshoot Your Module Appendix A

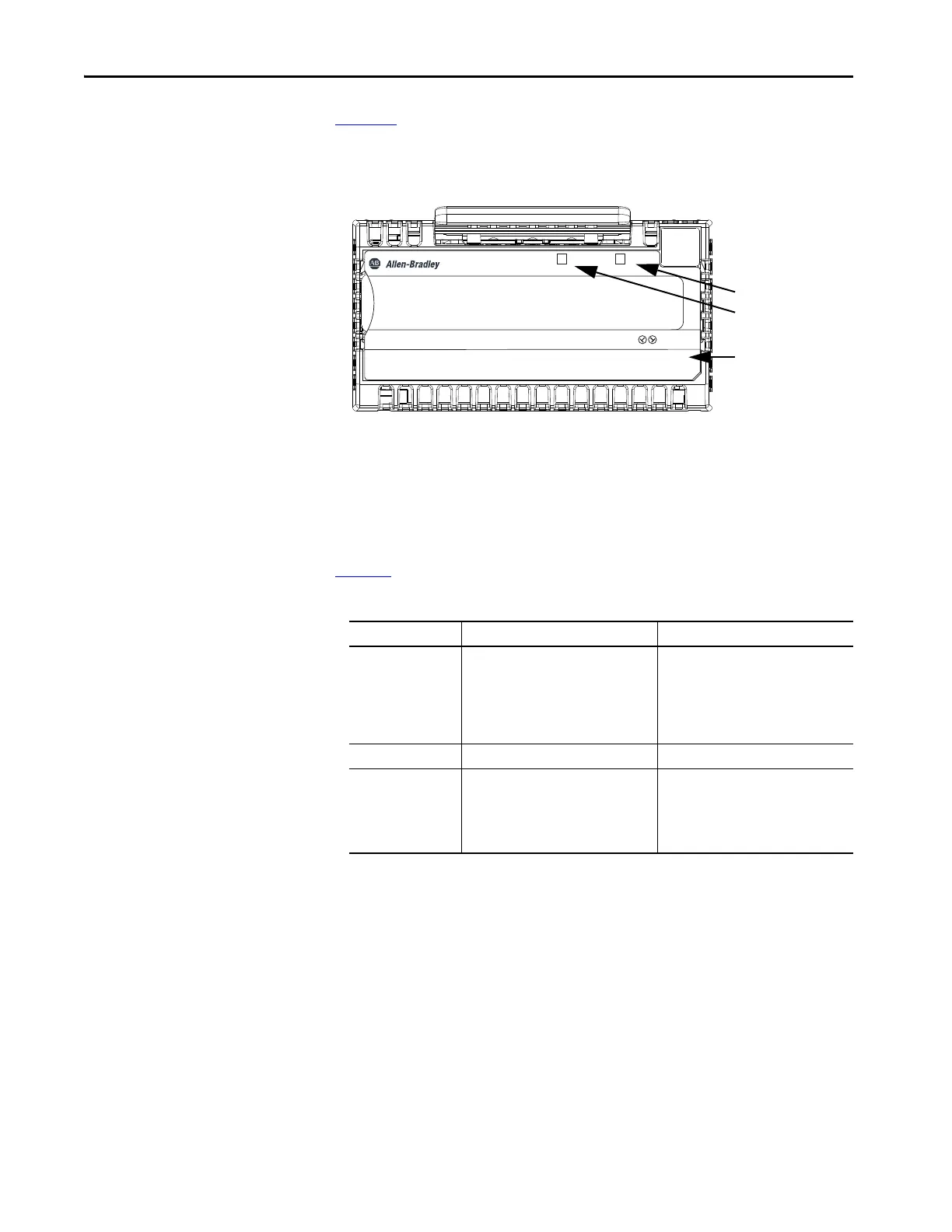

Figure 19 show the status indicators on FLEX 5000 AC output modules.
Figure 19 - FLEX 5000 AC Output Modules Status Indicators
Tab le 27 describes the I/O Status indicators on FLEX 5000 output modules.
STATUS
POWER
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
DIGITAL 16 OUTPUT AC
5094-OA16
43
TB3AC
Output Point 0 (O00)
Output Point 1 (O01)
Output Point 2 (O02)
Output Point 3 (O03)
Output Point 4 (O04)
Output Point 5 (O05)
Output Point 6 (O06)
Output Point 7 (O07)
Output Point 8 (O08)
Output Point 9 (O09)
Output Point 10 (O10)
Output Point 11 (O11)
Output Point 12 (O12)
Output Point 13 (O13)
Output Point 14 (O14)
Output Point 15 (O15)
SA power status indicator
5094-OA16, 5094-OA16XT
Module status indicator
I/O status indicators
Table 27 - I/O Status Indicators - FLEX 5000 Output Modules
Indicator State Description Recommended Action
Off One of the following:
• The output point is Off.
• There is no backplane power.
One of the following:
• Confirm that the output point is
configured properly.
• Confirm that there is backplane power
supplied through the FLEX 5000
EtherNet/IP adapter.
Steady yellow The output point is operating normally. None
Flashing red One of the following:
• A No Load or Short Circuit condition is
detected.
• A Field Power Loss condition exists.
One of the following:
• Locate and correct the cause of No Load
or Short Circuit condition.
• Locate and correct the cause of Field
Power Loss condition.
