Rockwell Automation Publication IASIMP-QS005H-EN-P - April 2016 107
SmartGuard™ 600 Controllers Logic Integration Chapter 4

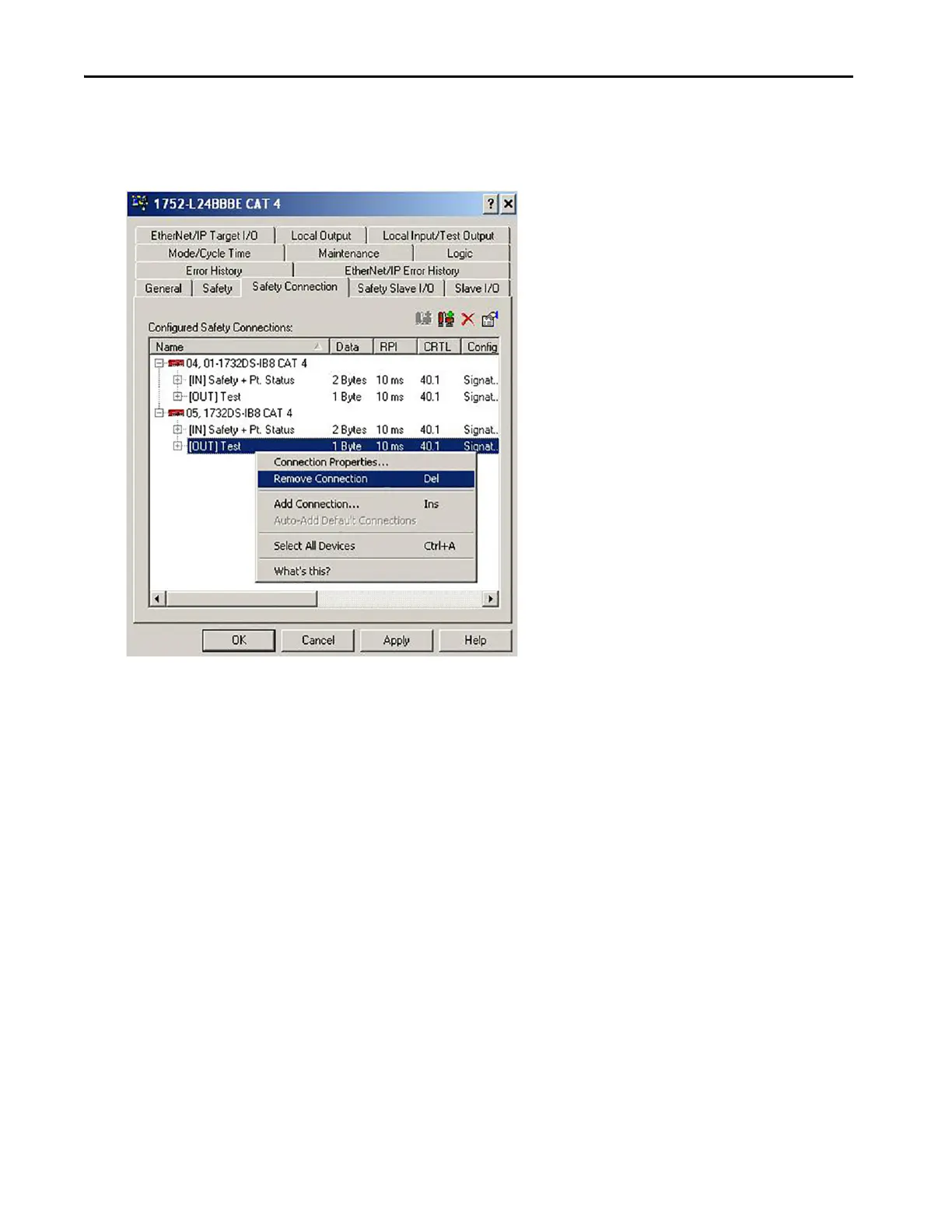

10. For a Cat. 2 application or for a Cat. 4 input-only Guard I/O module, remove the Test Output connection that is
created with the Auto-Add Default connections, as it is not required.
For this example, the Test Output connection for 1732DS-IB8 CAT 4 is removed.
