Rockwell Automation Publication IASIMP-QS005H-EN-P - April 2016 137
SmartGuard™ 600 Controllers Logic Integration Chapter 4

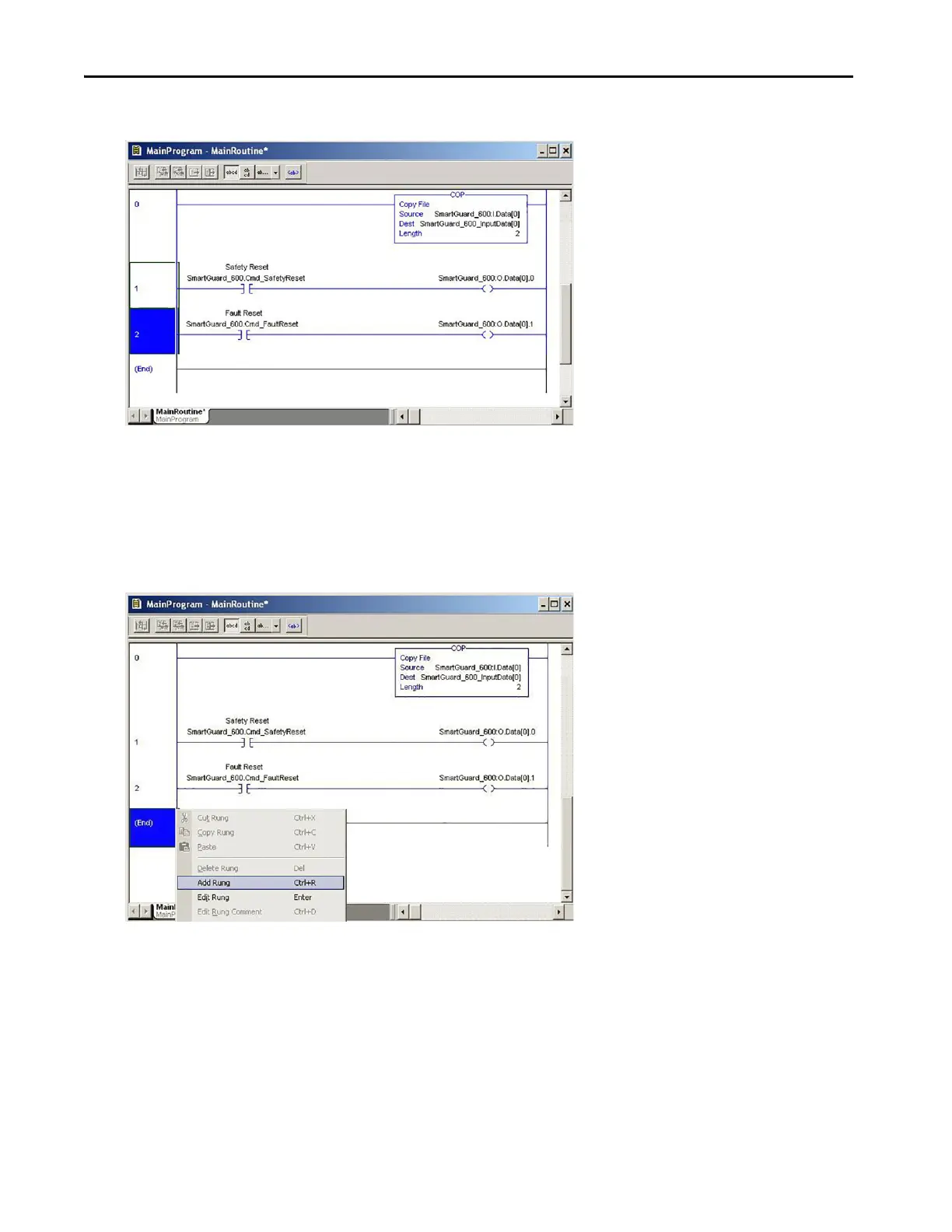

The additional two imported rungs will appear in your routine.
Create an Instance of Your SmartGuard 600 Faceplate Add-On Instruction in Your CompactLogix Project
Routine
1. Right-click on the rung just after the imported output tag mapping rungs within you project routine and choose
Add Rung.
