174 Rockwell Automation Publication IASIMP-QS005H-EN-P - April 2016
Chapter 6 Safety System Application Guide
Analog Guard I/O Module Faceplate – Online Help Options
Press on any view to access help information.

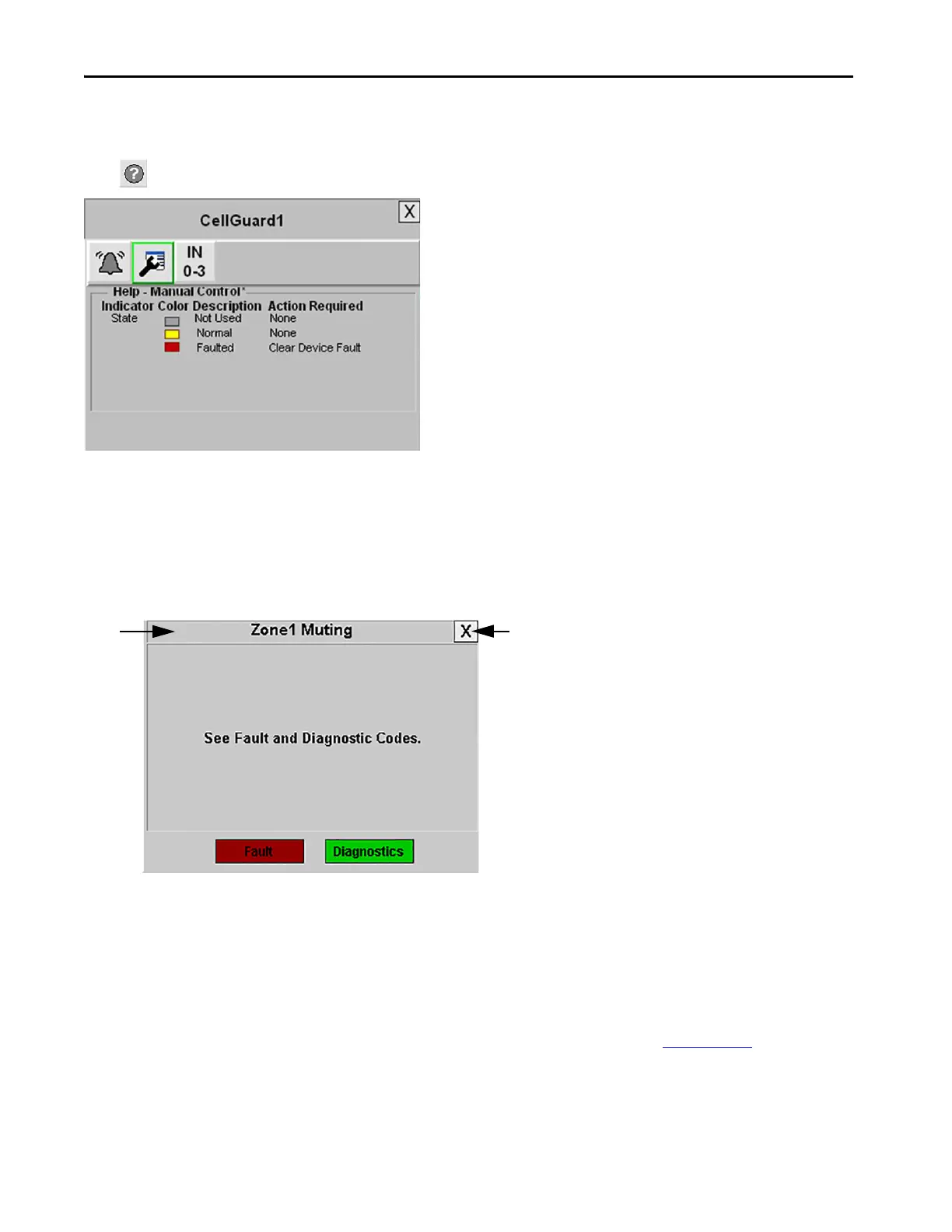

Safety Instruction Faceplate Overview
Safety instruction faceplates are used only with GuardLogix controllers.
The faceplate includes these buttons:
•The Fault button launches the fault Probable Cause and Recommended Actions views.
•The Diagnostics button launches the diagnostic Probable Cause and Recommended Actions views.
To rename the faceplate, click in the title bar, type the new name by using the popup keyboard, and press Enter.
To close the faceplate, click the Close button in the upper right corner of the display.
The GuardLogix Safety Application Instruction Set Safety Reference Manual, publication 1756-RM095
, provides error
code and diagnostic information for safety application instructions.
