GuardLogix® Controllers Logic Integration Chapter 3
5. Click OK to complete the controller tag assignment.

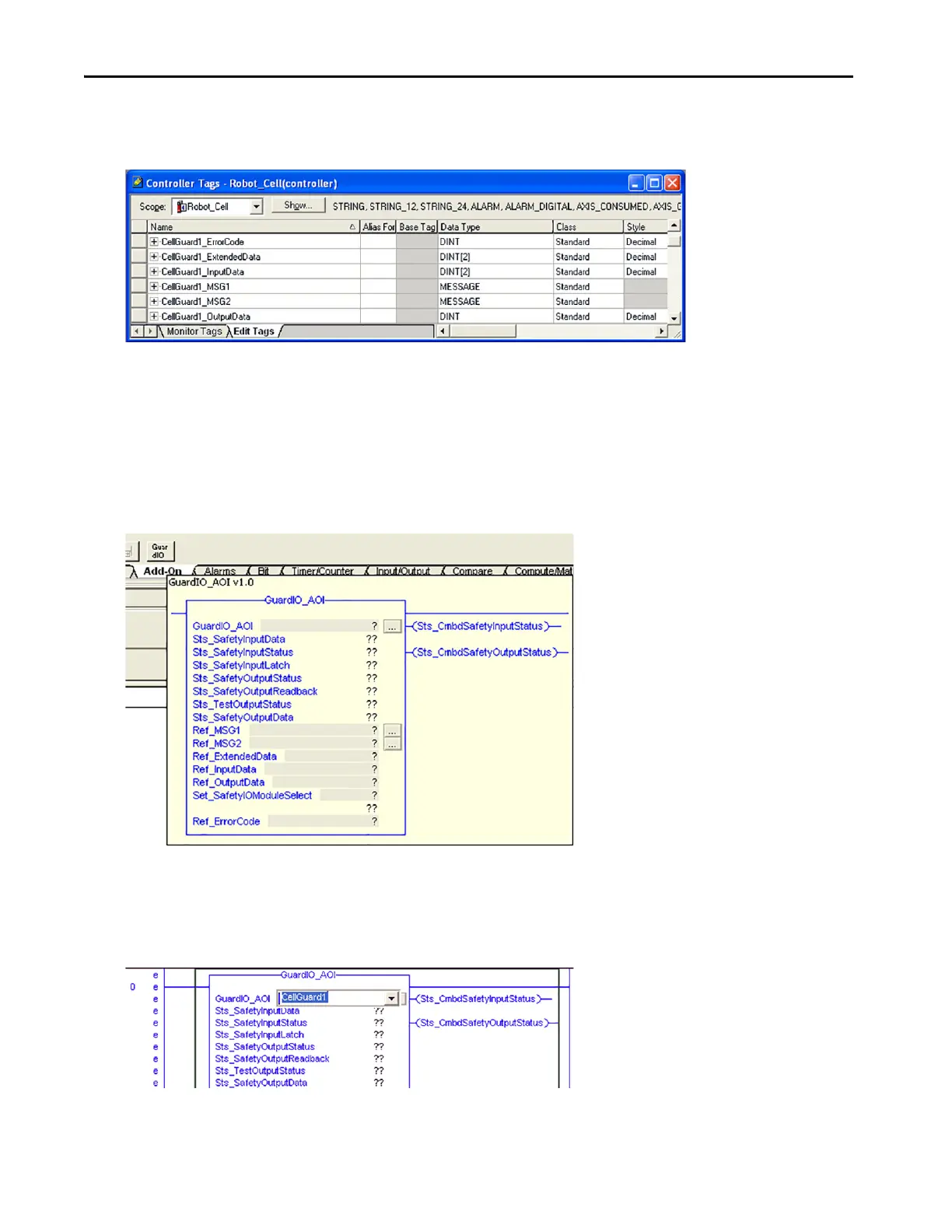

The tags shown here represent a set of tags for a module named CellGuard1.
Create GuardIO_AOI Instances in Standard Program Routines for Each Digital Guard I/O Faceplate
You must create a GuardIO_AOI instance for each Guard I/O module in your application.
1. Open the intended standard program routine and add a rung.
2. Select the GuardIO_AOI from the Add-On Instructions tab.
3. Double-click the GuardIO_AOI tag name field.
4. Type the ModuleName of the first Guard I/O module from your Safety Module Configuration worksheet.
This example shows an Add-On Instruction named CellGuard1 that is associated with a Guard I/O module of the
same na
me.
