154 Rockwell Automation Publication IASIMP-QS005H-EN-P - April 2016

Chapter 5 FactoryTalk® View ME Software Integration

Associate Each Button to a Faceplate and Parameter File

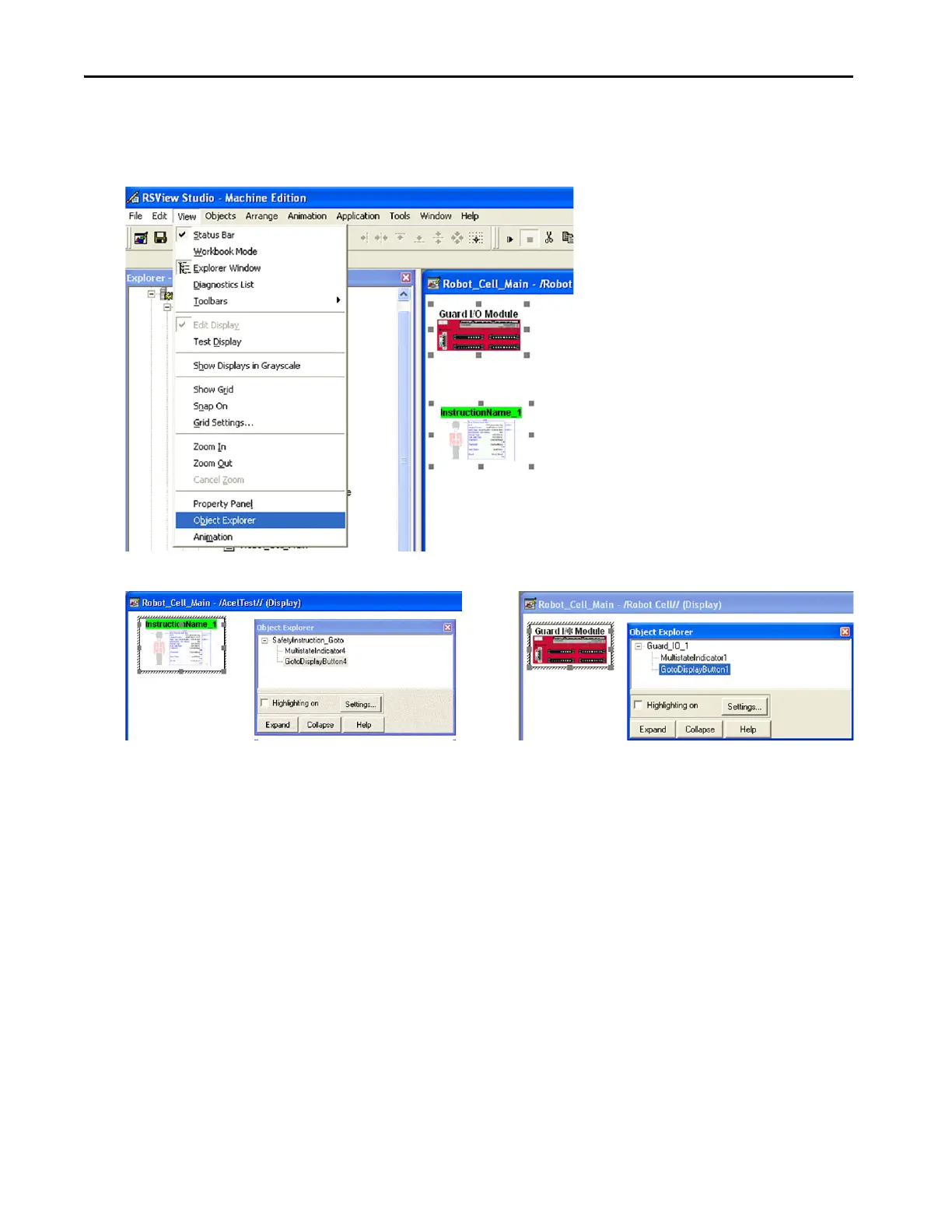

1. Click the copied Goto Display button and select View>Object Explorer.

2. In the Object Explorer, double-click the Goto Display button to open the Goto Display Button Properties dialog.
