Rockwell Automation Publication IASIMP-QS005H-EN-P - April 2016 89
GuardLogix® Controllers Logic Integration Chapter 3
Map Standard Tachometer Reset Tags to Safety Reset Tags
If any of your analog inputs are tachometers then you need to map the associated ModuleName.Cmd_ChxTachReset and
ModuleName_Cmd_ChxFreqUnder1Hz standard tags to their corresponding ModuleName_ChxHMITachReset and
ModuleName_ChxFreqUnder1Hz safety tags.
1. Select the Analog GuardIO_AOI instance rung in your Standard Task for the safety analog module that includes a
tachometer input.

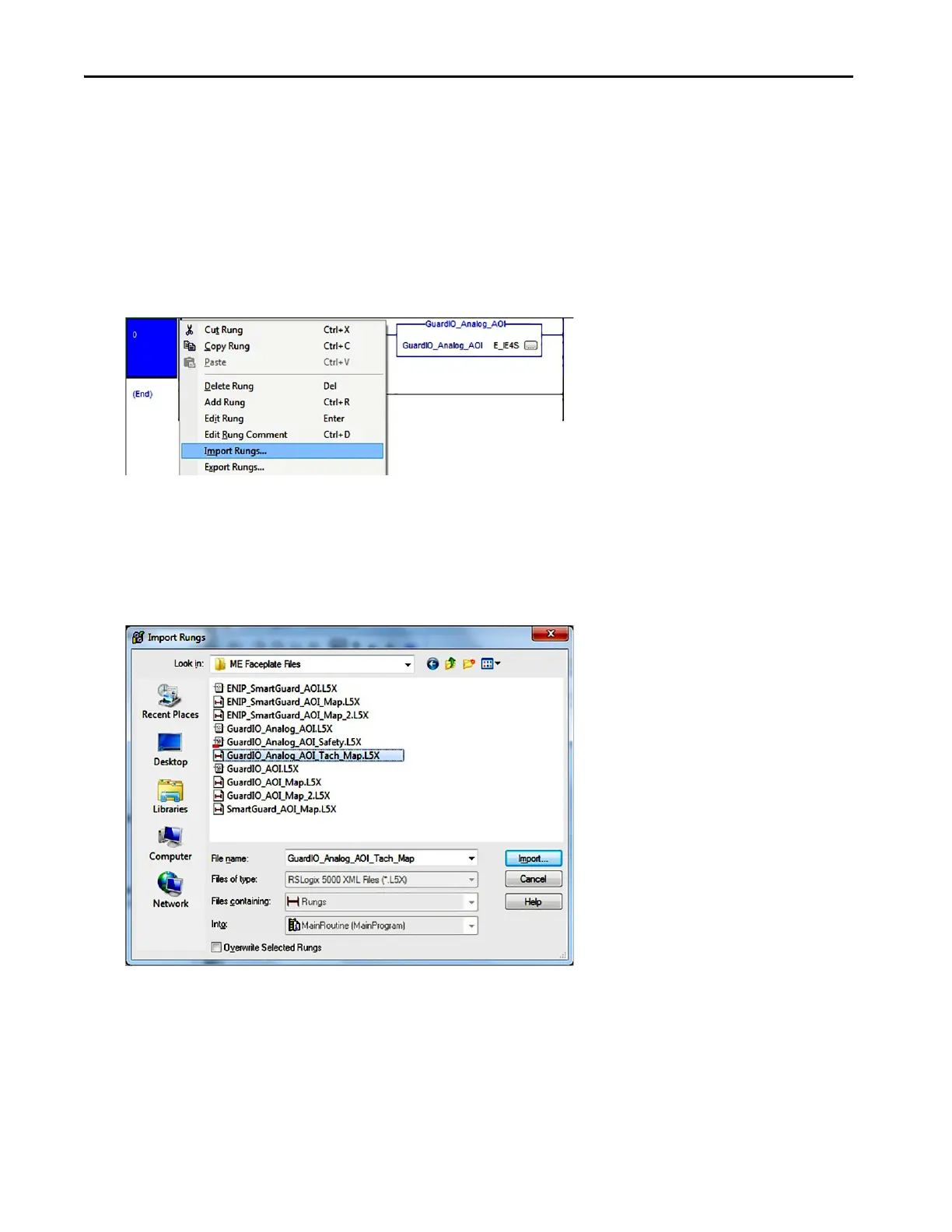

2. Right-click your Analog GuardIO_AOI instance rung and chose Import Rung.
3. Browse to the ME Faceplate files folder within the Guard I/O and SmartGuard Faceplate Files toolkit directory.
If the toolkit has been loaded onto your personal computer, the hard drive path is:
C:\\ProgramFiles\RA_Simplification\SafetyGuardLogix\Files\Guard IO and SmartGuard Faceplate Files\ME
Faceplate Files.
4. Select the GuardIO_Analog_AOI_Tach_Map file and click Import.
The import configuration dialog appears.
