Safety System Application Guide Chapter 6

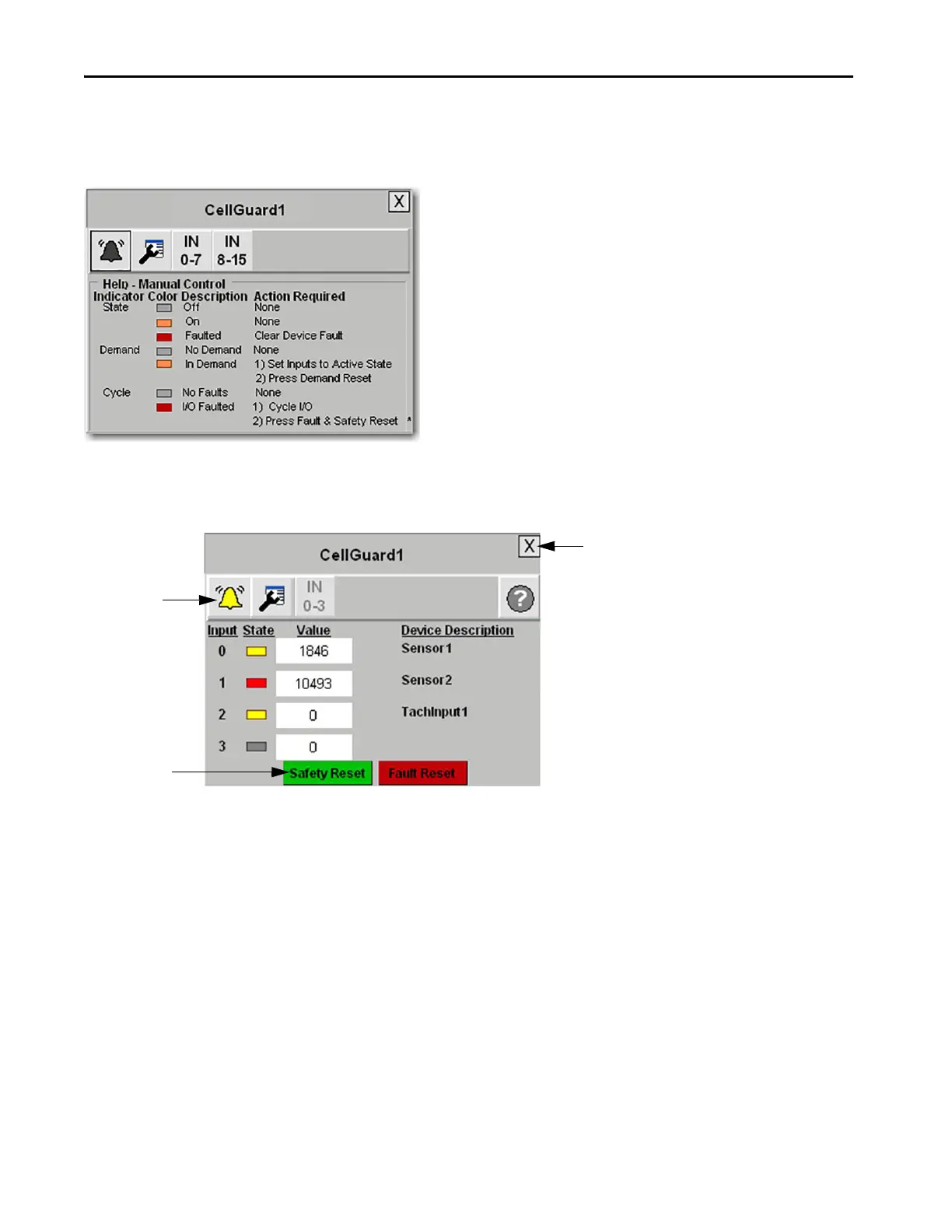

Digital Guard I/O Module Faceplate – Online Help Options
Press the Help button on any view to access help information.
Analog Guard I/O Faceplate Overview
The faceplate toolbar includes these buttons:
•The Alarm button indicates a Analog Guard I/O module fault condition and activates the Error Content view. A
black bell indicates normal status, with no faults. A yellow-black flashing bell indicates a fault condition.
•The Configuration button lets you edit the Analog Guard I/O faceplate name or Device Descriptions.
•The Input/Output Selector buttons let you select which view is shown.
•The Help button let you select Help information for the view.
To close the faceplate, click the Close button in the upper right corner of the display.
Faceplate Toolbar
Status Indicators
Command Buttons
Close
{
