Chapter 5 FactoryTalk® View ME Software Integration
Configure Your Guard I/O or SmartGuard 600 I/O Faceplates

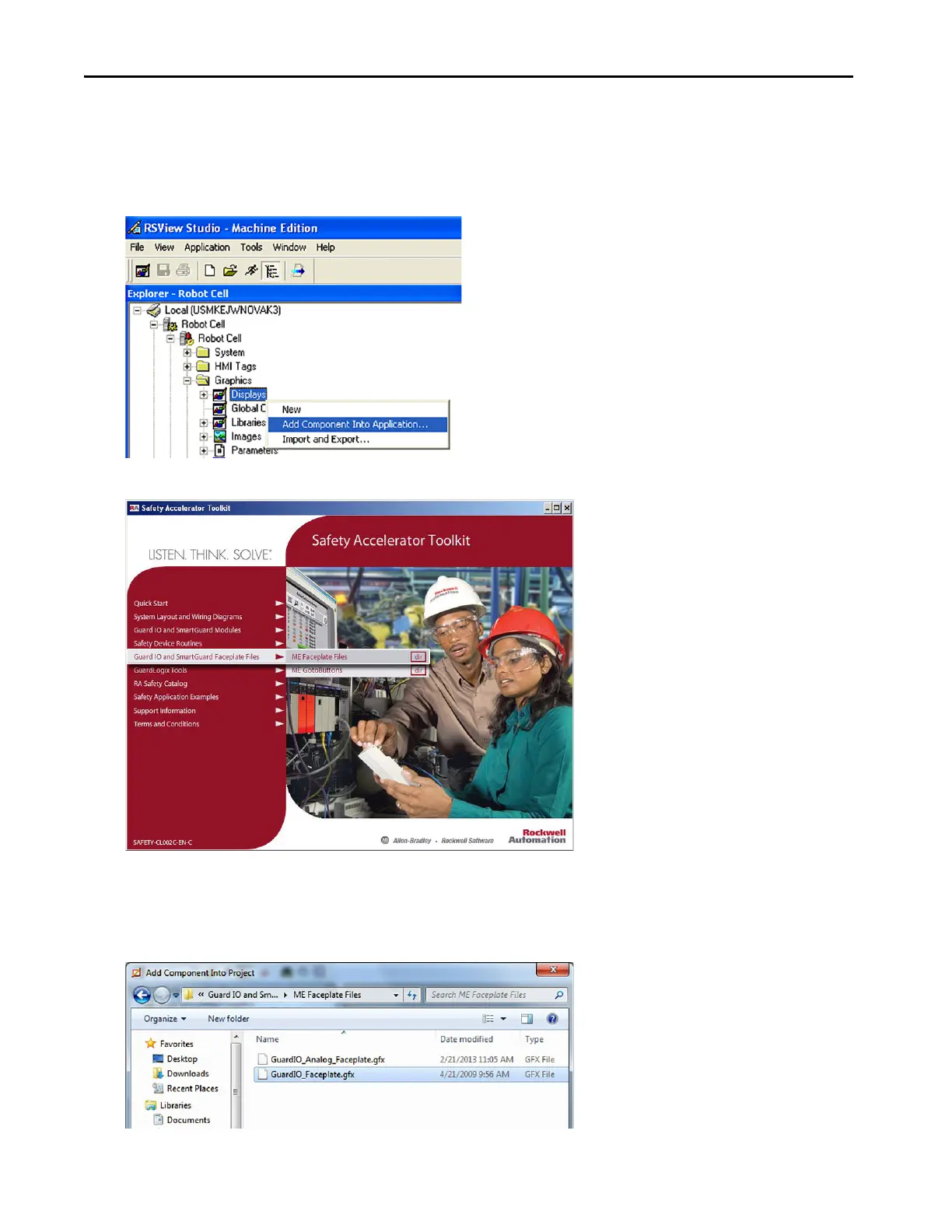

1. Open your existing FTViewME application to which you want to add the faceplates.
2. Right-click on Displays and choose Add Component Into Application.
3. Browse to the ME Faceplate Files folder within the Guard I/O and SmartGuard Faceplate files directory.
If the toolkit has been loaded onto your personal computer, the hard drive path is C:\Program Files\
RA_Simplification\SafetyGuardLogix\Files\Guard IO a
n
d SmartGuard Faceplate Files\ME Faceplate Files.
4. Select the GuardIO_Faceplate.gfx for Guard I/O digital modules or select GuardIO_Analog_Faceplate.gfx for
Guard I/O analog modules.
