Rockwell Automation Publication IASIMP-QS005H-EN-P - April 2016 45
Hardware Selection and Safety Wiring Layout Chapter 2

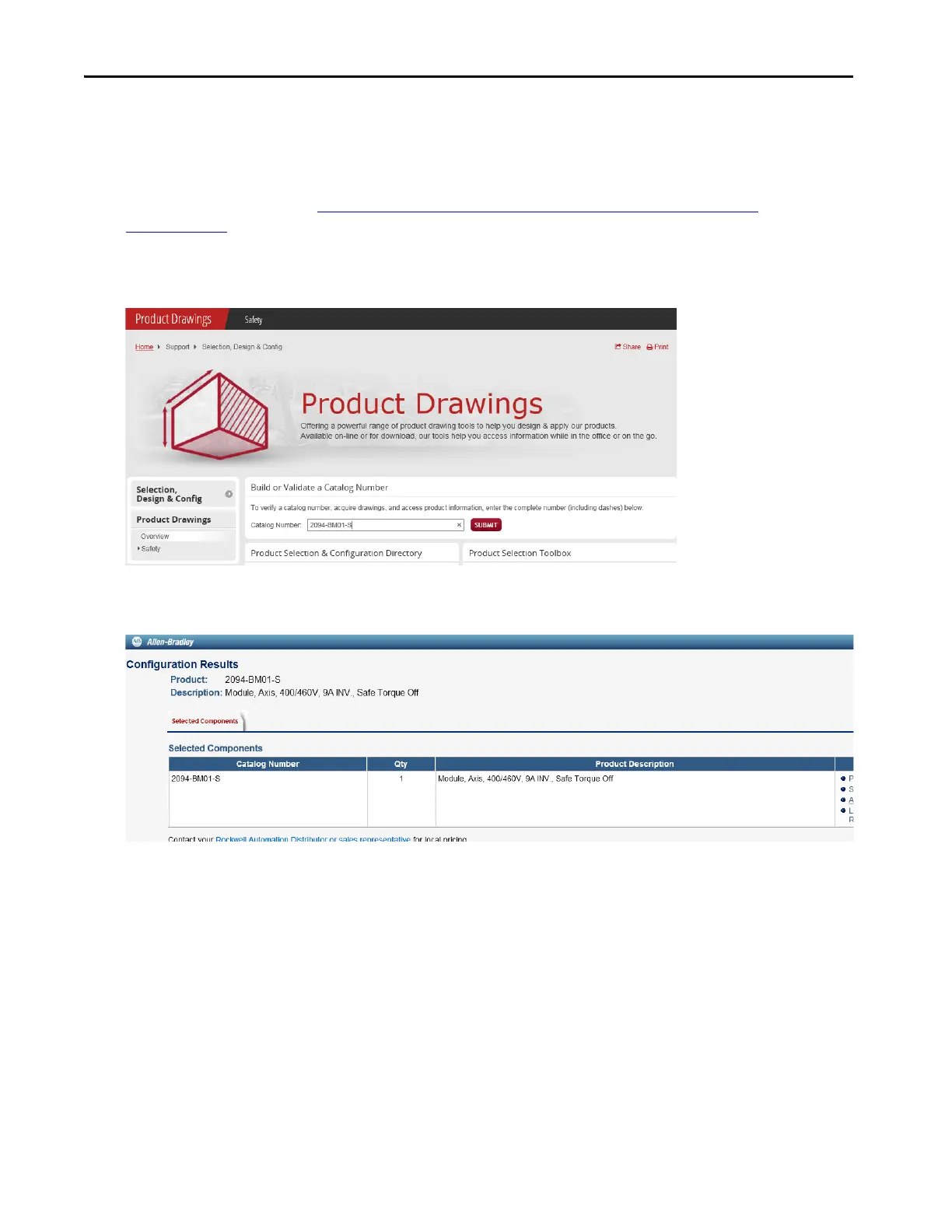

Access Other Allen-Bradley® CAD Drawings
Follow these steps to download other Allen-Bradley product CAD drawings.
1. Open your browser and go to http://www.rockwellautomation.com/global/support/select-design-
configure.page?.
On the home page, click Product Drawings.
2. Enter the catalog number of the product.
3. C
lick Submit.
The Configuration Results window opens, showing what documents are available for that catalog number.
4. Click AutoCad Drawing 2D (DXF).
5. Download the drawing to a destination of your choice.
