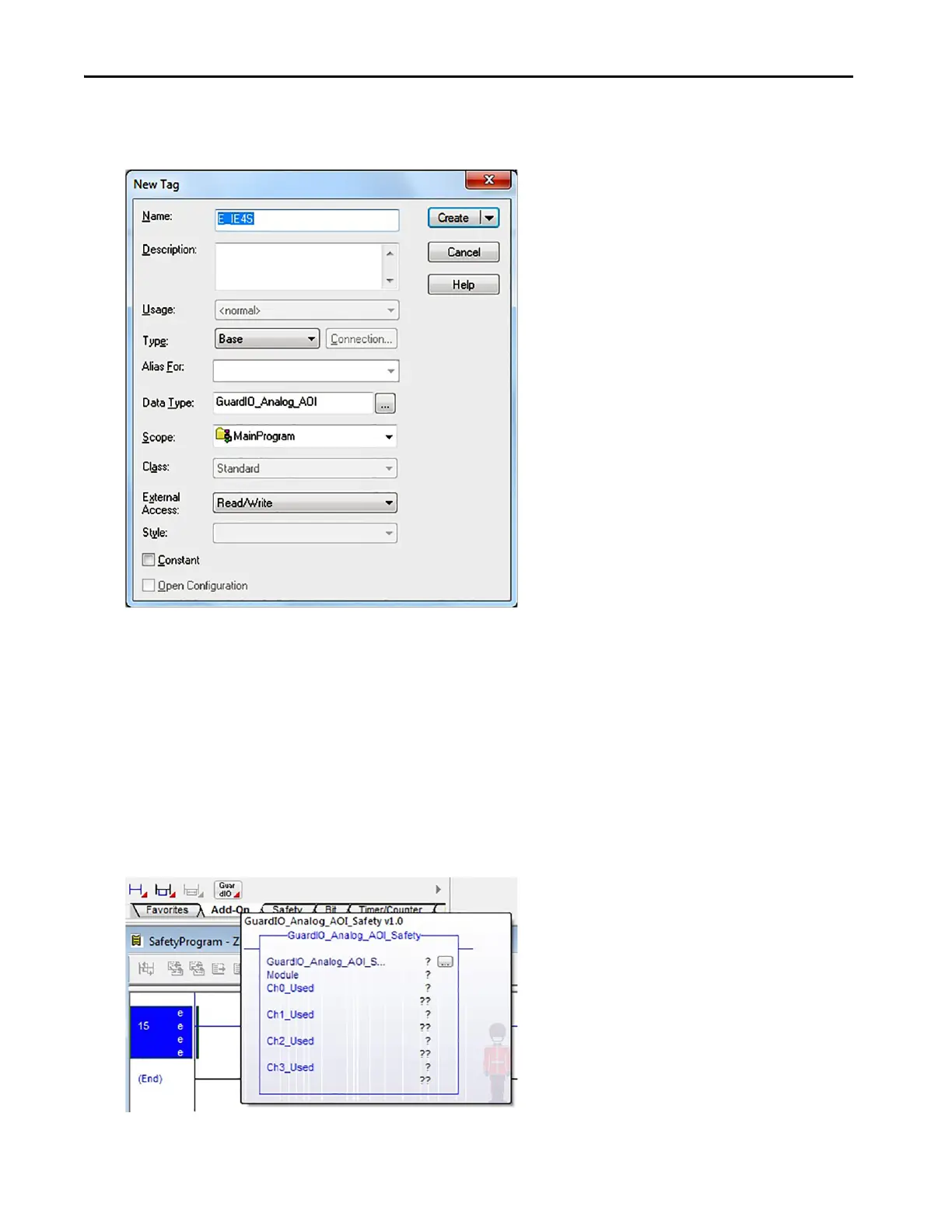

6. In the New Tag dialog box, verify that your settings match what is shown below.
Change where needed to match.
7. Click OK.
8. R
epeat steps 1…6 for each safety analog module in your system.
Create a GuardIO_Analog_AOI_Safety Instance in a Safety Program Routine
You must also create a GuardIO_Analog_AOI_Safety instance for each Guard I/O module in your application.
1. Open the intended Safety program routine and add a rung. This will most likely be the program routine for the
safety zone that this module will be used for.
2. Select the GuardIO_Analog_Safety_AOI from the Add-On Instructions tab.
